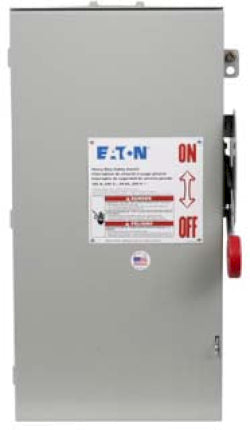

Cutler Hammer DH363URK - Non-Fusible Disconnect Switch 100A 600V AC (3-Pole NEMA 3R)

Cutler Hammer DH363URK is a heavy-duty disconnect switch designed for safe electrical isolation in industrial power distribution systems. This 3-pole, single configuration switch provides reliable circuit interruption with a 100A current rating and 600V AC/250V DC voltage rating, featuring a robust 100kA interrupting capacity at 600V for high-fault protection. The unit features a durable NEMA 3R rated enclosure measuring 11.84 x 9.89 x 21.68 inches (WxDxH) and weighs 20 lb, constructed for demanding industrial environments. It complies with NEMA KS-1, UL Listed, and UL98 standards, ensuring adherence to industry safety requirements. This non-fusible disconnect is specifically engineered for three-phase power systems and is compatible with SELA frames, making it suitable for industrial control panels, motor control centers, and main power distribution applications.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, heavy-duty industrial construction
• Voltage Rating: 600V AC/250V DC
• Current Rating: 100A
• Dimensions: 11.84 in x 9.89 in x 21.68 in (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98, NEMA 3R enclosure rating
• Applications: Industrial power distribution, motor control centers, main disconnects
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 100kA@600V
• Nema Rating: NEMA 3R
• Compatible Frames: SELA
• Weight: 20 lb
• Family: DH Series
• Country of Origin: United States

Product Identification

• UPC: 782113206479
• GTIN: 00782113206479
