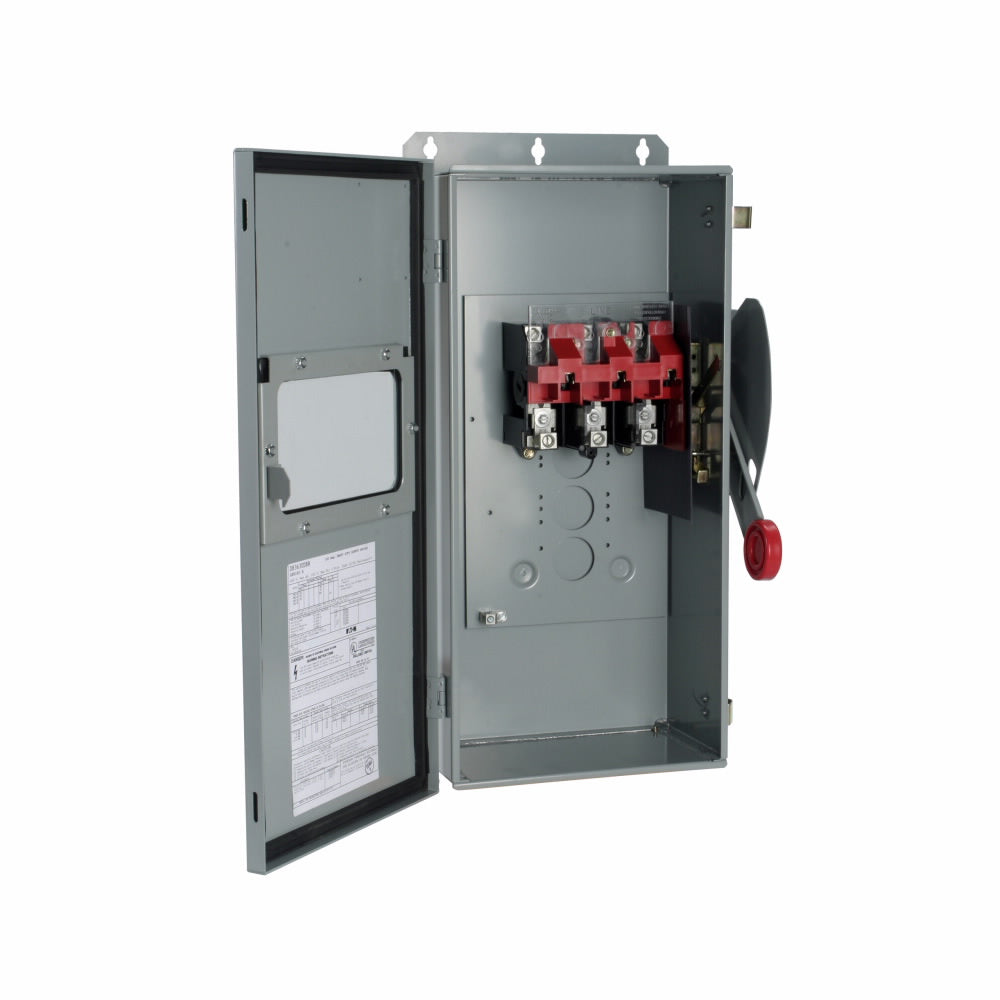

Cutler Hammer DH363UDKW - Non-Fusible Disconnect Switch 600V 100A (200kA AIC, NEMA 12)
Regular price
$2,187.49
$2,187.49
Regular price
$2,409.00
$2,409.00
Sale price
$2,187.49
$2,187.49
Save $221.51
/
- Low stock - 4 items left
- Backordered, shipping soon
Cutler Hammer DH363UDKW is a non-fusible disconnect switch designed for industrial power distribution systems requiring 600V protection. The unit features a 100A current rating and 200kA interrupting capacity, housed in a NEMA 12-rated enclosure measuring 11.79" x 10.22" x 24.95" (WxDxH) with a 20 lb construction weight. UL Listed and NEC 230.62(C) compliant, this three-phase switch utilizes a single-configuration, three-pole design with barrier protection for SELA-compatible frames in commercial and industrial applications.
Key Features & Specifications
Key Features & Specifications
- Type: Non-fusible disconnect switch with NEC 230.62(C) compliant barrier
- Voltage Rating: 600V AC
- Current Rating: 100A
- Dimensions: 11.79" x 10.22" x 24.95" (WxDxH)
- Standards: UL Listed, NEMA 12
- Applications: Industrial power distribution, commercial electrical systems
- Configuration: Single
- Poles: 3
- AIC Rating: 200kA@600V
- Phase: 3
- Wire: 3
- Compatible Frames: SELA
- Weight: 20 lb
- Country of Origin: United States
- UPC: 78211402273
- GTIN: 00782114000000
