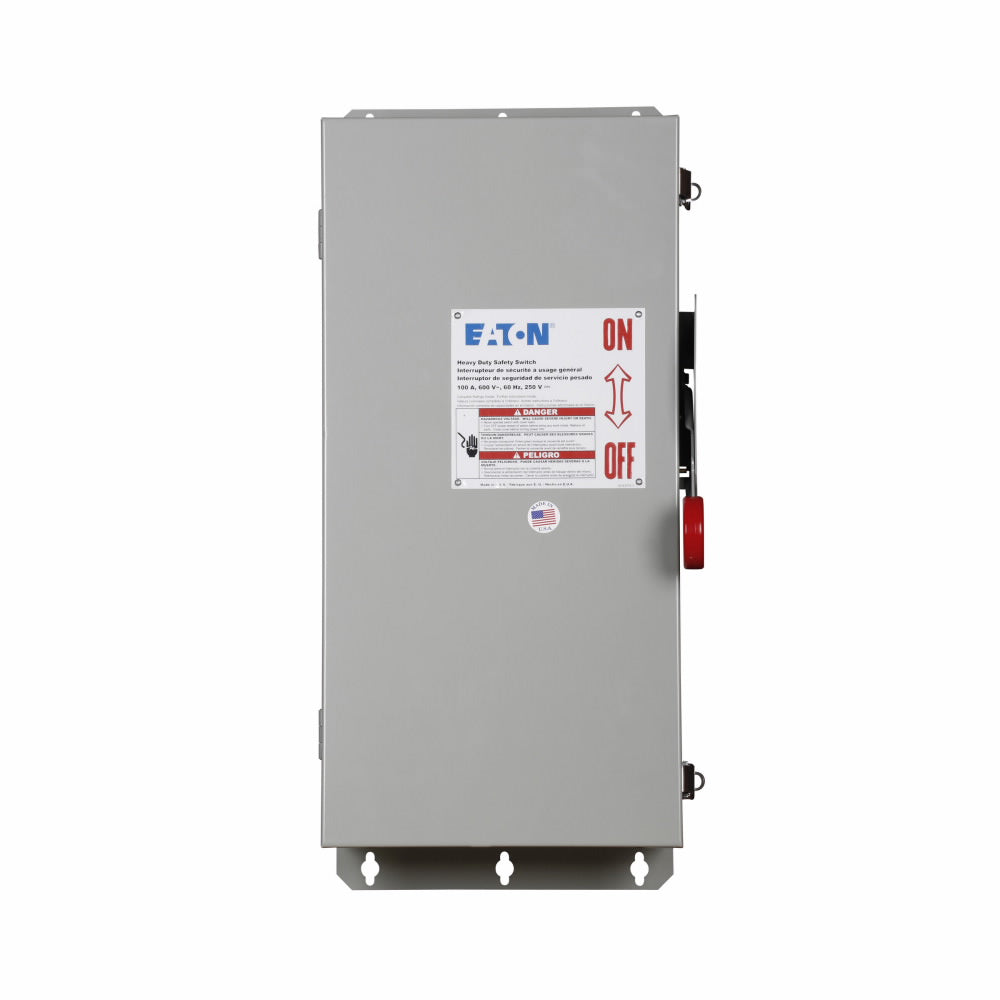

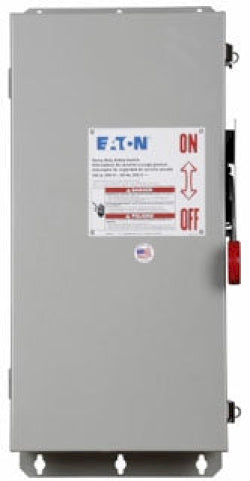

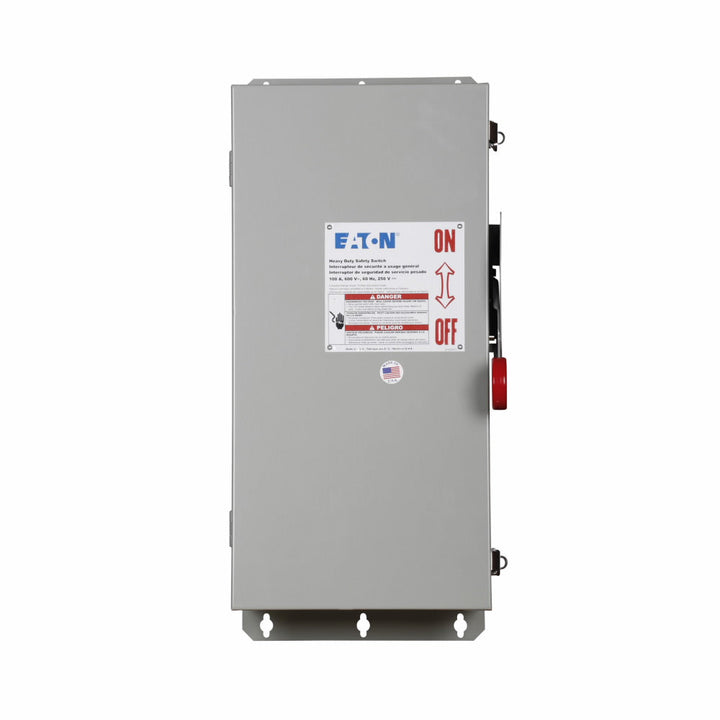

Cutler Hammer DH363UDK - Non-Fusible Disconnect Switch 100A 600V (200kA AIC, NEMA 12)
Regular price
$1,766.58
$1,766.58
Regular price
$1,967.00
$1,967.00
Sale price
$1,766.58
$1,766.58
Save $200.42
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer DH363UDK is a heavy-duty disconnect switch designed for industrial power isolation and safety applications. This non-fusible switch provides reliable circuit interruption with a 600V voltage rating and 100A current capacity for three-phase systems. The unit features rugged construction measuring 11.79 x 10.22 x 24.95 inches (WxDxH) and weighs 20 lb, built to withstand demanding industrial environments. It complies with UL listing standards and meets NEC 230.62 (C) requirements for barrier compliance with NEMA 12 enclosure rating. The switch is engineered for industrial power distribution systems, motor control centers, and main disconnecting applications where 200kA interrupting capacity at 600V is required, compatible with SELA frames for integrated system installation.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Non-Fusible Disconnect Switch, DH Series
- Voltage Rating: 600V AC
- Current Rating: 100A
- Dimensions: 11.79 in x 10.22 in x 24.95 in (WxDxH)
- Standards: UL Listed, NEC 230.62 (C) Compliant Barrier, NEMA 12
- Applications: Industrial power distribution, motor control centers, main disconnecting
- Switch Style: Non-Fusible
- Configuration: Single
- Phase: 3
- Poles: 3
- AIC Rating: 200kA@600V
- NEMA Rating: NEMA 12
- Compatible Frames: SELA
- Country of Origin: United States
- Weight: 20 lb
Product Identification
- UPC: 782113206561
- GTIN: 00782113205618
