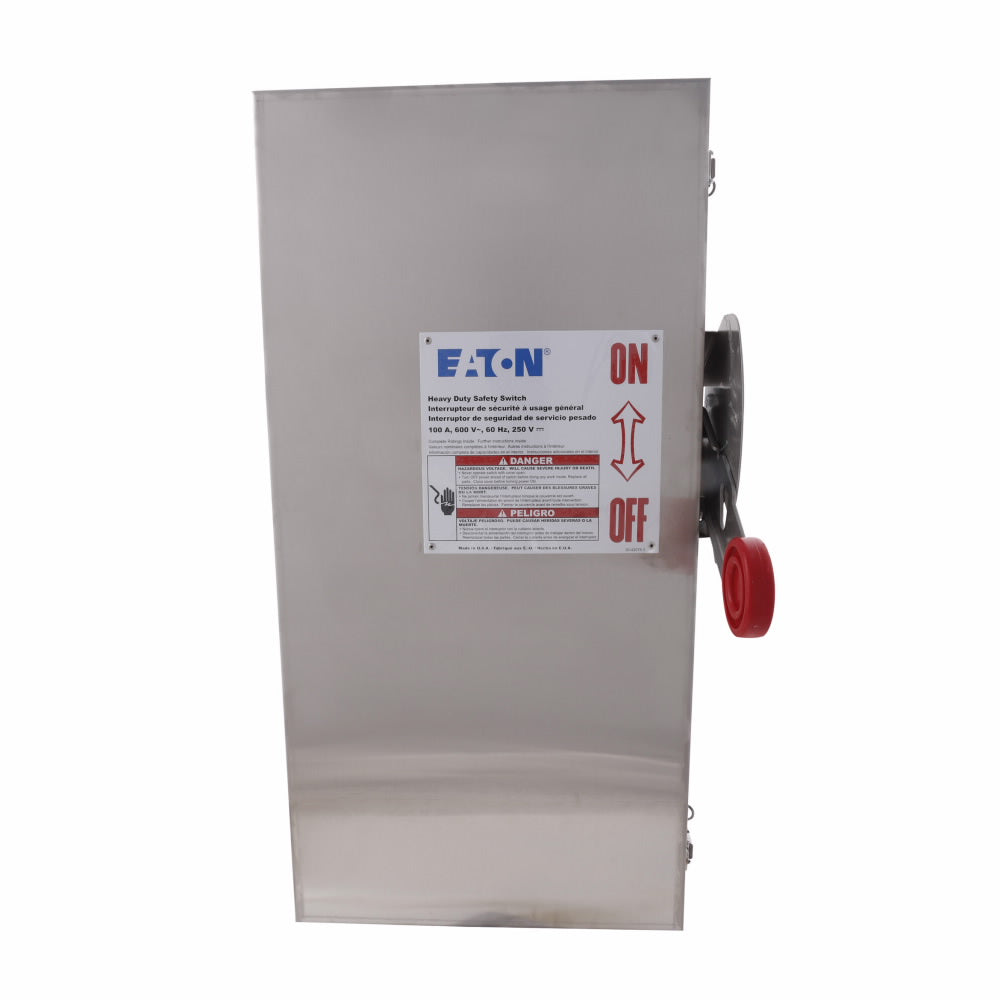

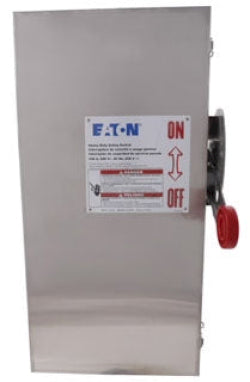

Cutler Hammer DH363NWK - Fusible Safety Switch 100A 600V (3-Pole NEMA 3R)
Regular price
$5,773.89
$5,773.89
Regular price
$7,750.00
$7,750.00
Sale price
$5,773.89
$5,773.89
Save $1,976.11
/
- In stock, ready to ship
- Backordered, shipping soon
The Cutler Hammer DH363NWK is a heavy-duty fusible safety switch designed for reliable circuit isolation and protection in industrial power distribution systems. This 3-pole disconnect switch features a 600V AC voltage rating and 100A current capacity, providing robust electrical performance for demanding applications. Constructed with a NEMA 3R rated enclosure measuring 10.76 x 10.22 x 24.95 inches (WxDxH) and weighing 20 lb, it offers durable protection against weather elements and environmental contaminants. The switch carries UL Listed certification and delivers 100kA interrupting capacity at 600V, ensuring compliance with industry safety standards. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure circuit isolation is required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DH Series
- Voltage Rating: 600V AC
- Current Rating: 100A
- Dimensions: 10.76 in x 10.22 in x 24.95 in (WxDxH)
- Standards: UL Listed, NEMA 3R
- Applications: Industrial power distribution, motor control centers, machinery isolation
- Switch Type: Safety Disconnect
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC rating: 100kA@600V
- Fuse Class: R
- Compatible Frames: SEDA
- Enclosure: NEMA 3R
- Country of Origin: United States
- Weight: 20 lb
Product Identification
- UPC: 782113206608
- GTIN: 00782113206608
Quote Request
