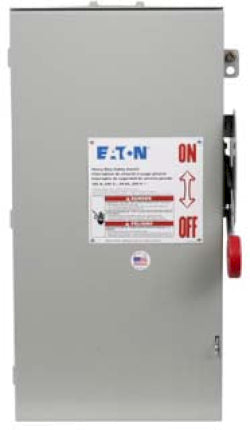

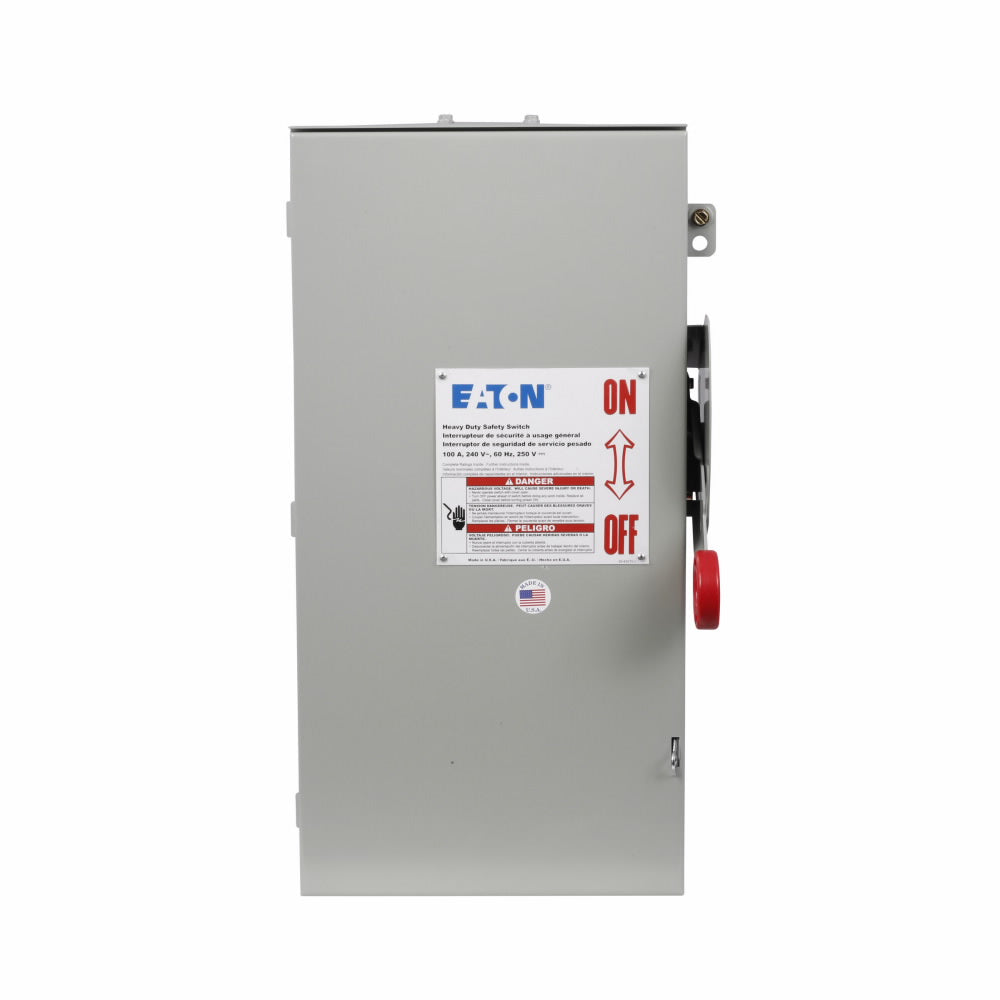

Cutler Hammer DH363NRK - Fusible Disconnect Switch 600V/100A (100kA AIC @600V)
Regular price
$986.51
$986.51
Regular price
$2,647.00
$2,647.00
Sale price
$986.51
$986.51
Save $1,660.49
/
- Low stock - 5 items left
- Backordered, shipping soon
Cutler Hammer DH363NRK is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed, NEMA 3R-rated unit features a 600V AC voltage rating and 100A current capacity with a 100kA interrupting rating at 600V for robust fault protection. The rugged enclosure measures 12.75" x 22.5" x 8.5" (WxDxH) and weighs 20 lb, constructed for durability with Class R fuse compatibility and THED frame compatibility. Compliant with UL standards, this three-phase disconnect accepts #14 to 1/0 copper/aluminum conductors, making it suitable for motor control centers, industrial machinery, and heavy equipment applications requiring high-interrupt capacity protection.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch with quick-make/quick-break mechanism
- Voltage Rating: 600V AC
- Current Rating: 100A
- Dimensions: 12.75 in x 22.5 in x 8.5 in (WxDxH)
- Standards: UL Listed, NEMA 3R
- Applications: Industrial power distribution, motor control centers, heavy machinery
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Wire Size: #14 to 1/0 CU/AL
- AIC Rating: 100kA@600V
- Fuse Class: R
- Phase: 3
- Weight: 20 lb
- Compatible Frames: THED
Product Identification
- UPC: 782113206493
- GTIN: 00782113000000
