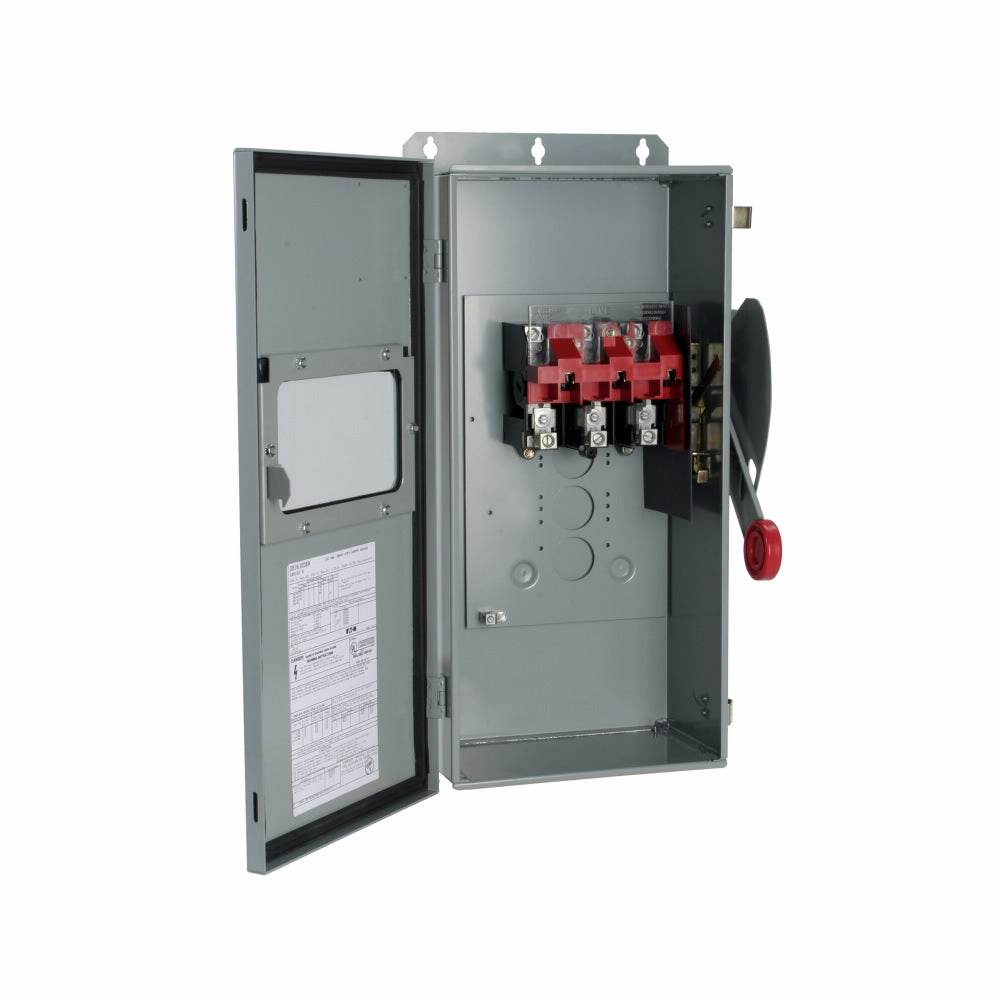

Cutler Hammer DH363NDKW - Fusible Disconnect Switch 600V 100A (3-Pole NEMA 4)

Cutler Hammer DH363NDKW is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 3-pole switch provides reliable 600VAC operation with a 100A current rating and features a 200kA interrupting capacity at 600V for robust fault protection. The unit features a compact NEMA 4 rated enclosure measuring 13.25 x 25.5 x 8 inches (WxDxH) and weighs 20 lb, constructed for Class R fuse compatibility with TED frame systems. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial power distribution, motor control centers, and machinery disconnecting applications where reliable circuit isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 13.25 in x 25.5 in x 8 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery disconnecting
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 4
• Fuse Class: R
• Compatible Frames: TED
• Weight: 20 lb
• Country of Origin: United States

Product Identification

• UPC: 78211402267
• GTIN: 00782114022672
