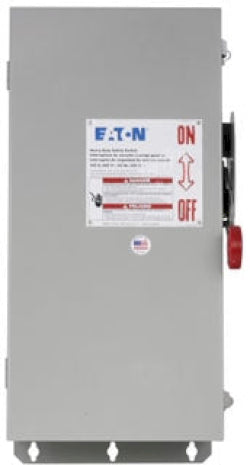

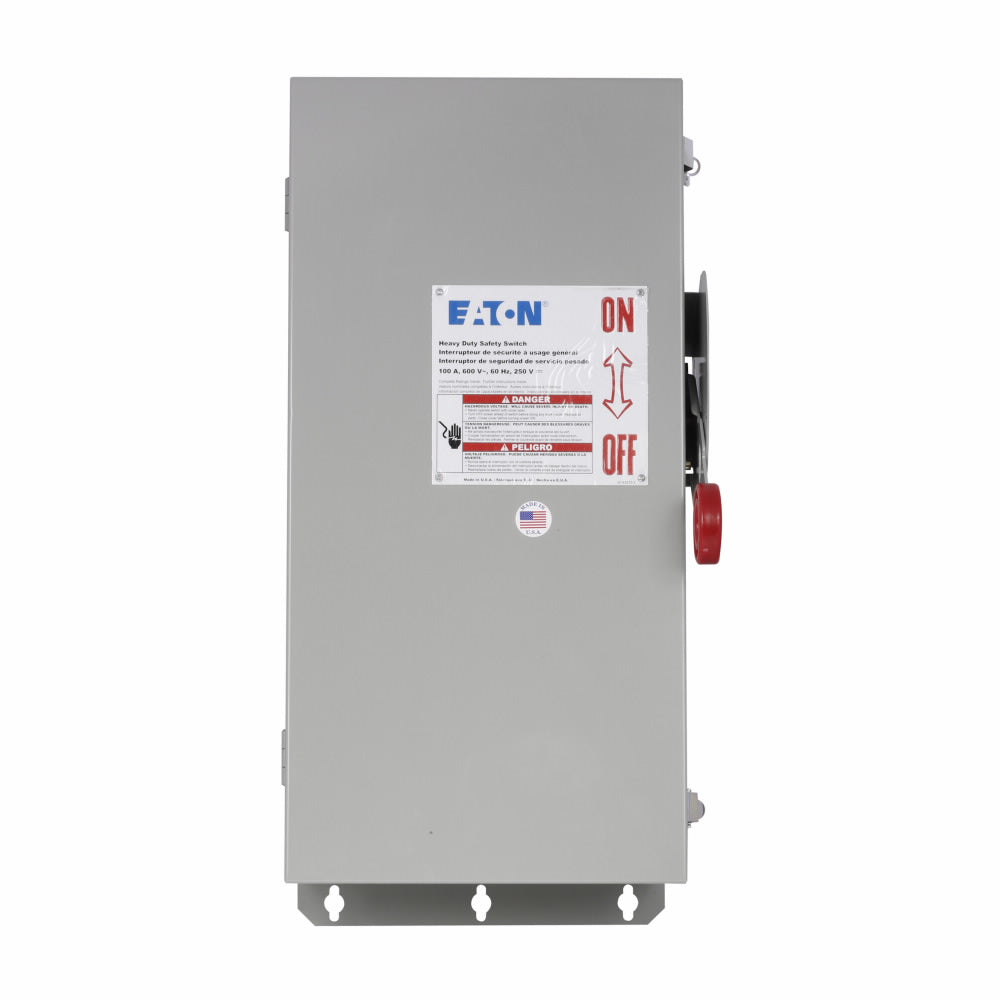

Cutler Hammer DH363FDK - Fusible Disconnect Switch 100A 600V (3-Pole NEMA 12)

Cutler Hammer DH363FDK is a fusible safety disconnect switch designed for industrial power distribution system protection and isolation. This 3-pole switch features a 600V AC voltage rating and 100A current rating for robust electrical performance in demanding environments. The unit measures 13.25 x 25.5 x 9 inches (WxDxH) with a 20 lb construction and carries NEMA 12 enclosure rating for protection against dust and dripping liquids. UL Listed certification ensures compliance with industry safety standards, while the 200kA interrupting rating at 600V provides reliable fault protection. Typical applications include industrial control panels, motor control centers, and power distribution systems requiring Class R fuse protection and SKLA frame compatibility.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 13.25 in x 25.5 in x 9 in (WxDxH)
• Weight: 20 lb
• Standards: UL Listed
• Applications: Industrial control panels, motor control centers, power distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@600V
• Fuse Class: R
• NEMA Rating: NEMA 12
• Compatible Frames: SKLA
• Country of Origin: United States

Product Identification

• UPC: 782113206554
• GTIN: 00782113206554
