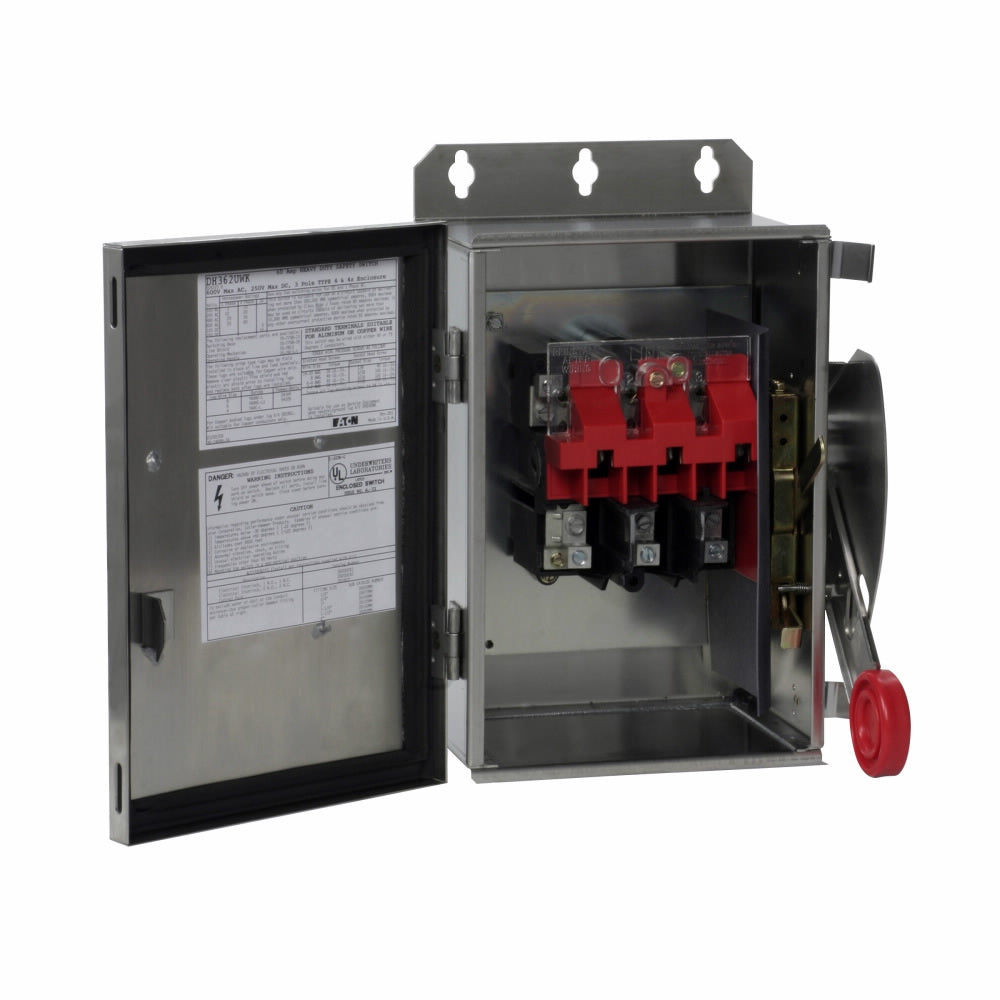

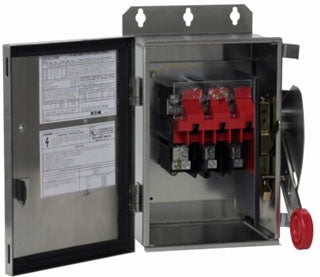

Cutler Hammer DH362UWK - Non-Fusible Disconnect Switch 600V/60A (200kA AIC, NEMA 4X)

Cutler Hammer DH362UWK is a non-fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This UL-listed, 600V-rated switch handles 60A continuous current with a 200kA interrupting capacity, housed in a NEMA 4X-rated enclosure measuring 8.76" x 10.22" x 14.14" (WxDxH) and weighing 11 lb. Compliant with NEC 230.62(C) barrier requirements, its three-pole single-configuration design ensures safe maintenance operations in SKHA-compatible frames for three-phase systems.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch with barrier compliance
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 8.76 in x 10.22 in x 14.14 in (WxDxH)
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC Rating: 200kA@600V
• NEMA Rating: 4X
• Phase: 3
• Compatible Frames: SKHA
• Weight: 11 lb

Product Identification

• UPC: 782113206172
• GTIN: 00782113000000
