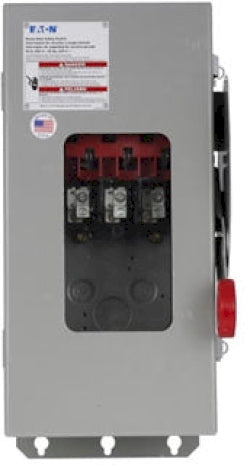

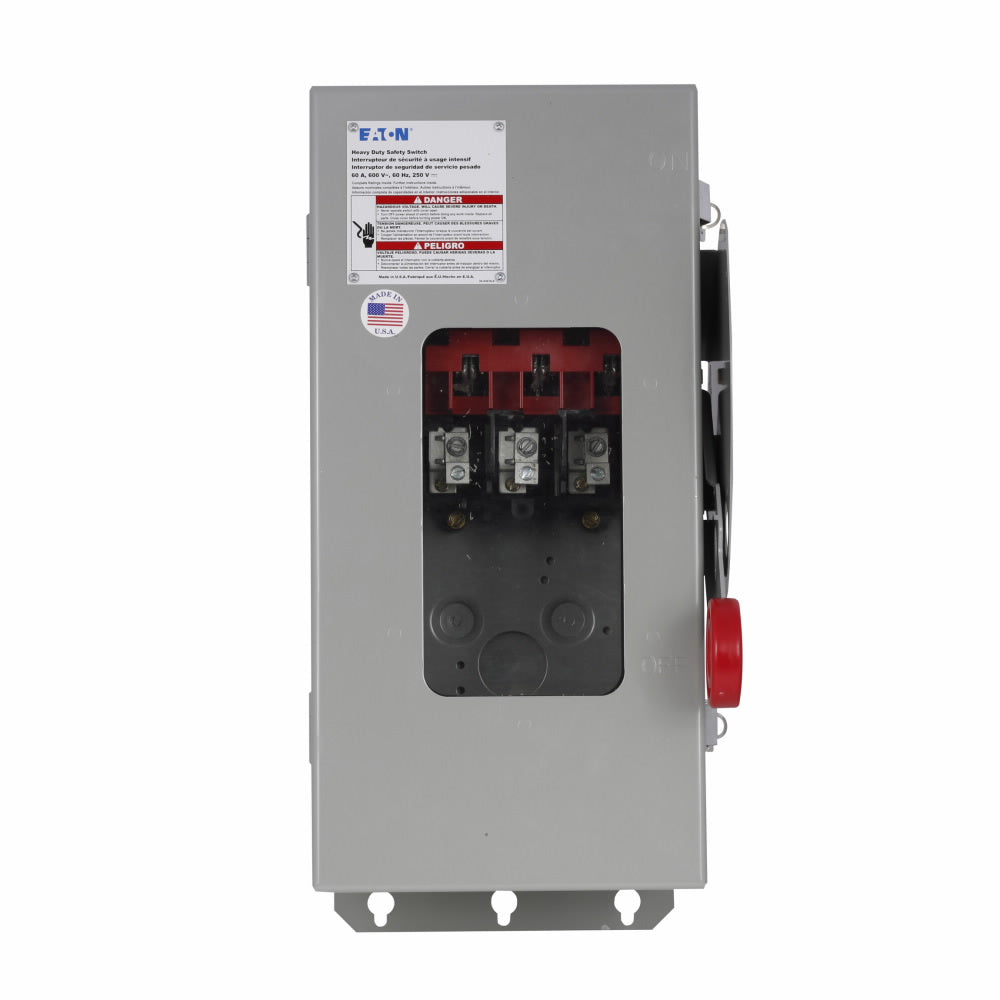

Cutler Hammer DH362NDKW - Fusible Disconnect Switch 600VAC 60A (200kA AIC NEMA 3R)

Cutler Hammer DH362NDKW is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed 600VAC disconnect features a 60A current rating and 200kA interrupting capacity, housed in a NEMA 3R-rated enclosure measuring 9.25" x 18" x 8.5" (WxDxH) with 20 lb rugged construction. Compliant with UL safety standards, its 3-pole single-throw configuration with Class R fuses provides reliable circuit isolation in demanding environments including manufacturing facilities, data centers, and heavy machinery applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch, single-throw operation
• Voltage Rating: 600VAC
• Current Rating: 60A
• Dimensions: 9.25 x 18 x 8.5 inches (WxDxH)
• Standards: UL Listed, NEMA 3R enclosure
• Applications: Industrial power distribution, machinery control
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Phase: 3
• Fuse Class: R
• Weight: 20 lb

Product Identification

• UPC: 782114022634
• GTIN: 00782114000000
