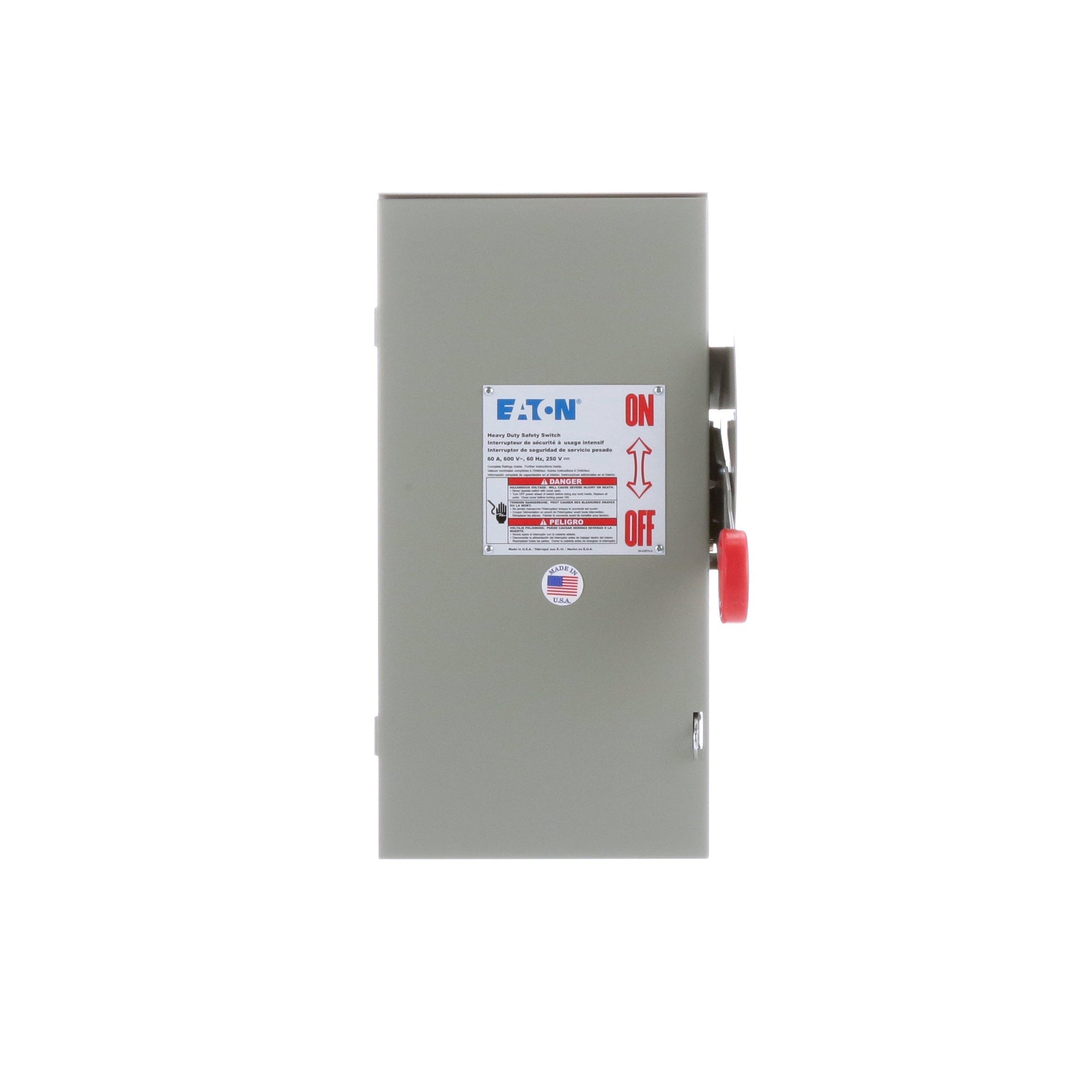

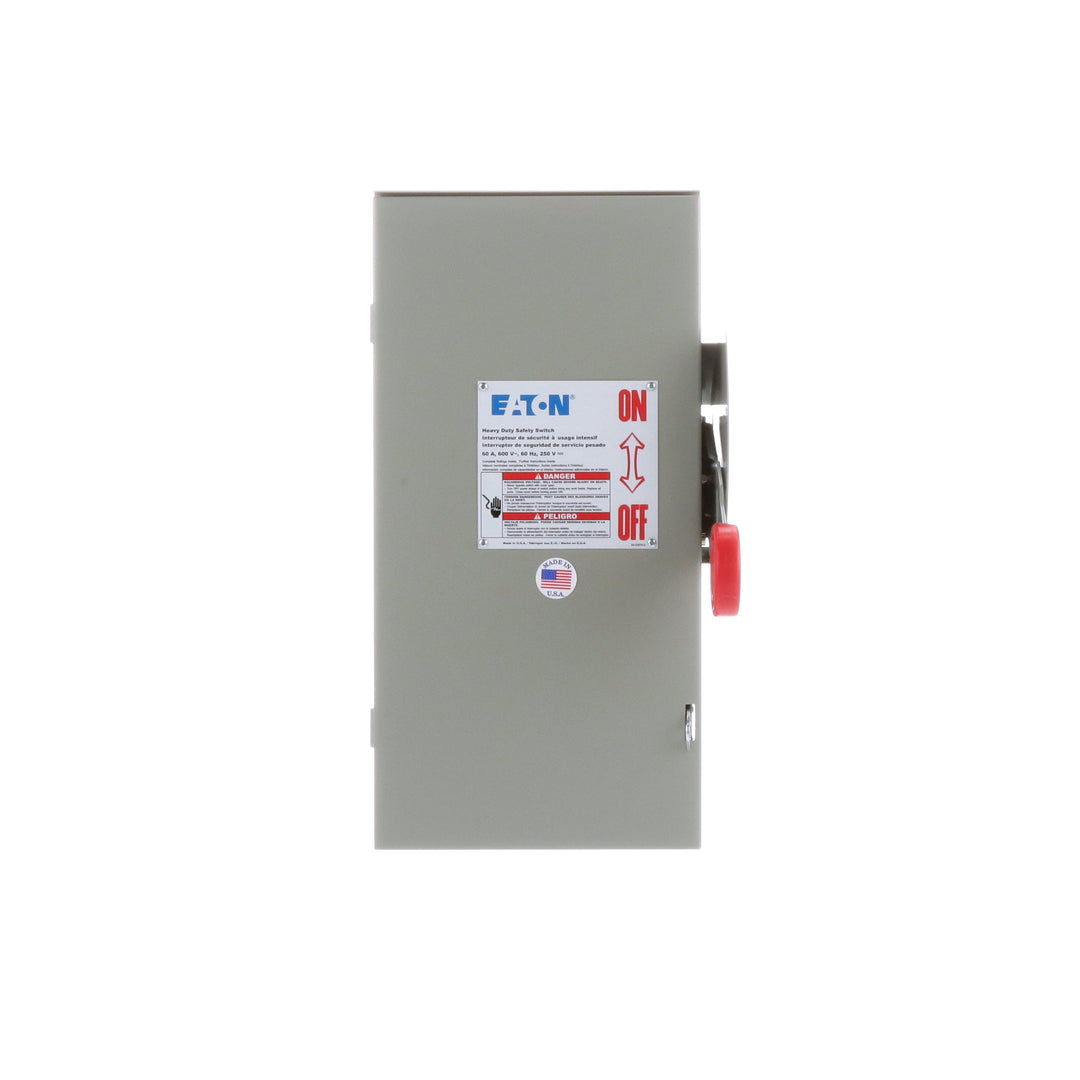

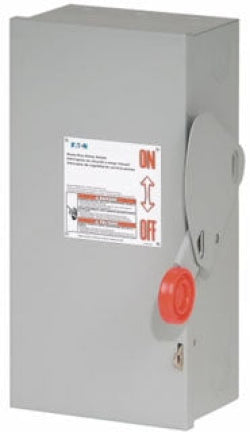

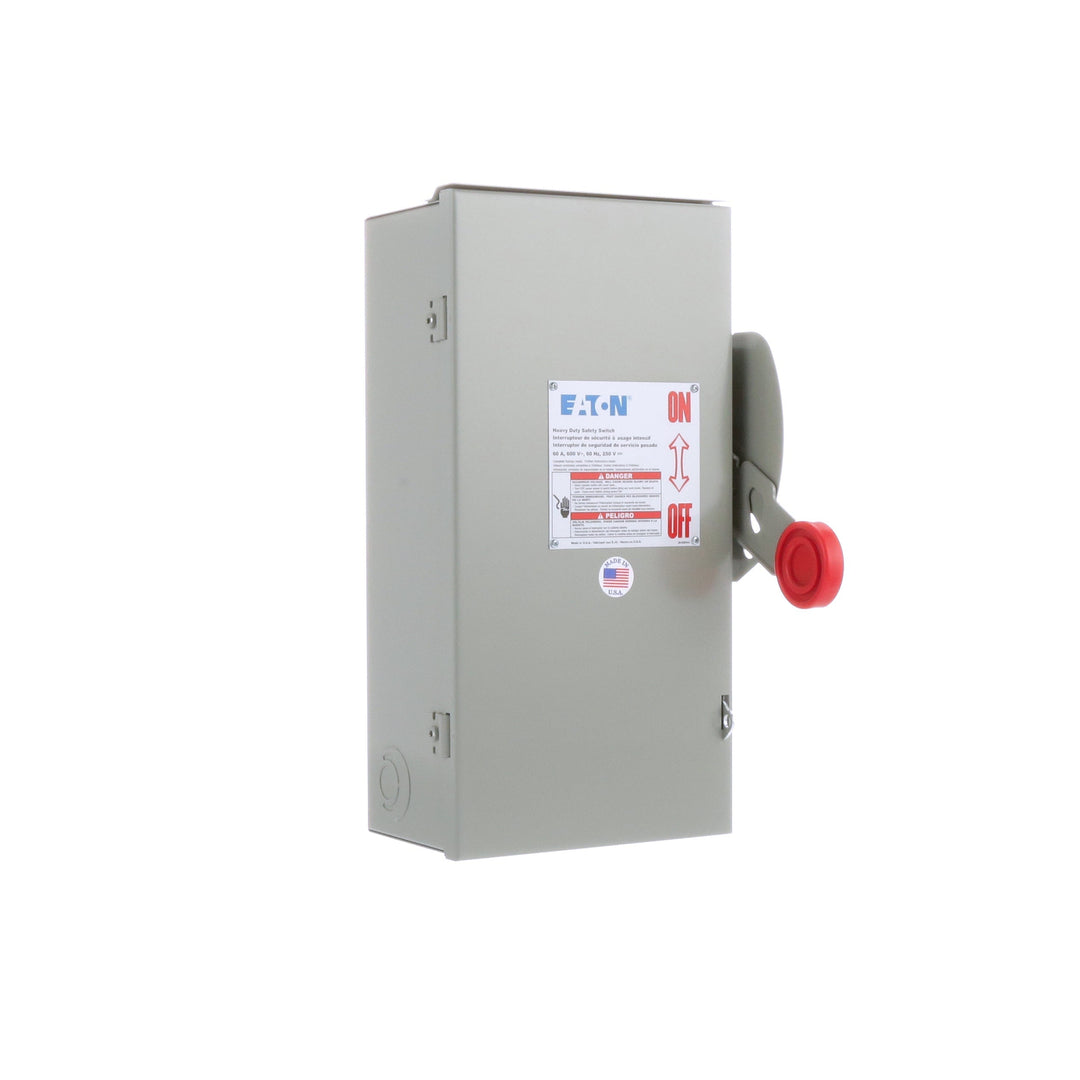

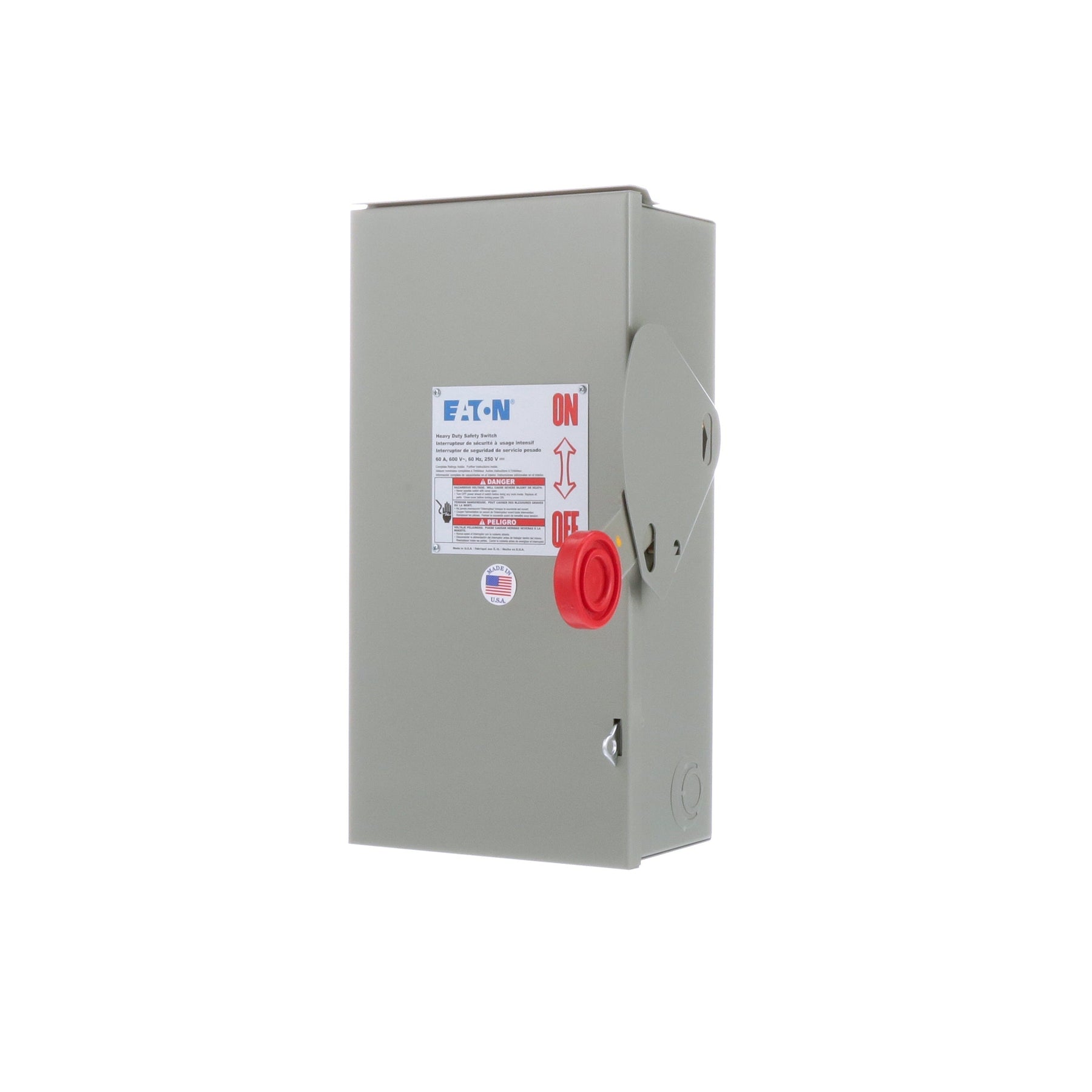

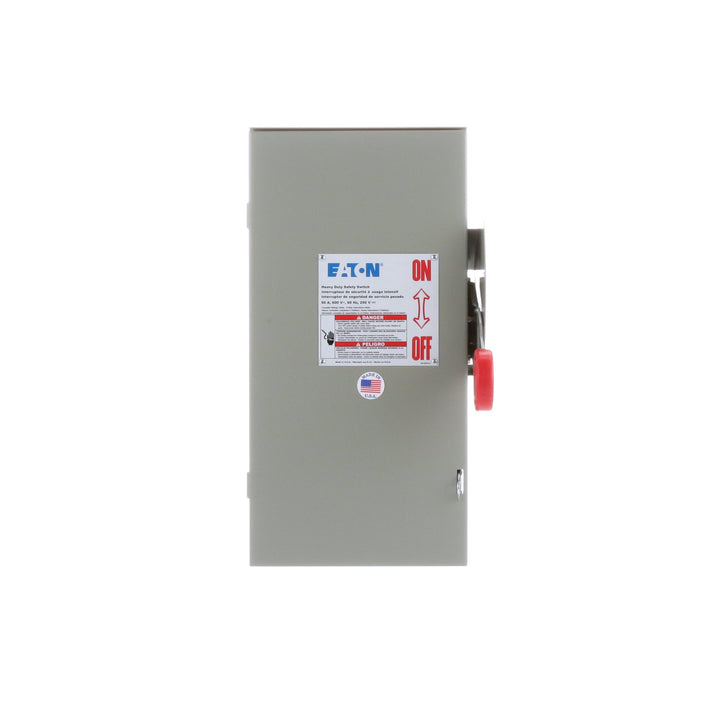

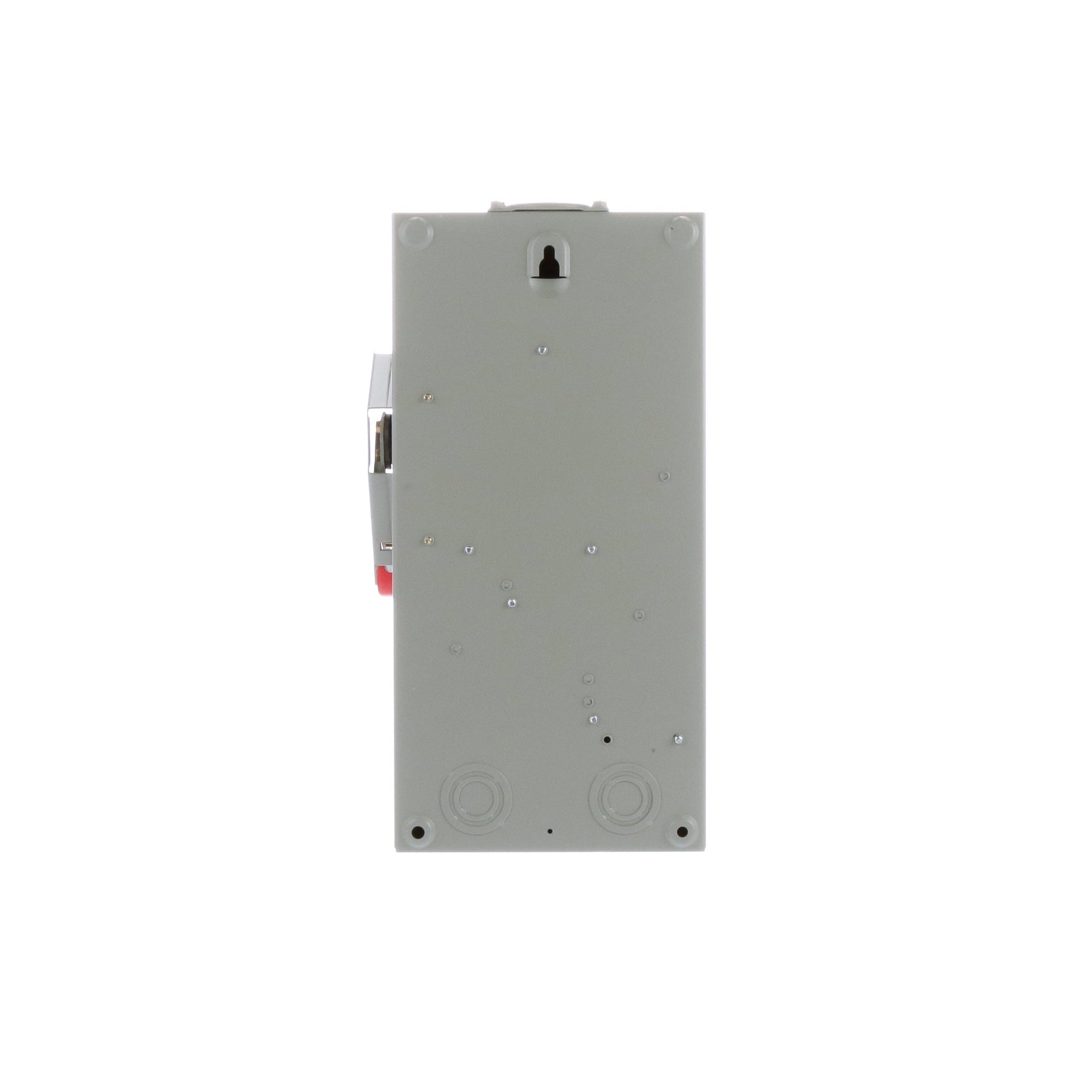

Cutler Hammer DH362FRK - Class R Fusible Disconnect Switch 60A 600V AC (200kA AIC Rating)

Cutler Hammer DH362FRK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole switch provides 60A current rating with voltage ratings of 600V AC and 250V DC, featuring a compact NEMA 12 enclosure measuring 9.5" x 16.5" x 8.5" (WxDxH) and weighing 17 lb. The switch complies with NEMA KS-1, UL Listed, and UL98 standards while offering 200kA interrupting capacity at 600V for robust fault protection. Typical applications include industrial control panels, motor control centers, and power distribution systems requiring Class R fuse protection and copper/aluminum wire compatibility from #14 to 2 AWG.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole configuration
• Voltage Rating: 600V AC/250V DC
• Current Rating: 60A
• Dimensions: 9.5" x 16.5" x 8.5" (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial control panels, motor control centers, power distribution
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Wire Size: #14 to 2 CU/AL
• Certification: NEMA KS-1, UL Listed, UL98
• AIC rating: 200kA@600V
• Nema Rating: NEMA 12
• Phase: 3
• Fuse Class: R
• Weight: 17 lb
• Family: DH Series
• Country of Origin: United States

Product Identification

• UPC: 782113205991
• GTIN: 00786679746639
