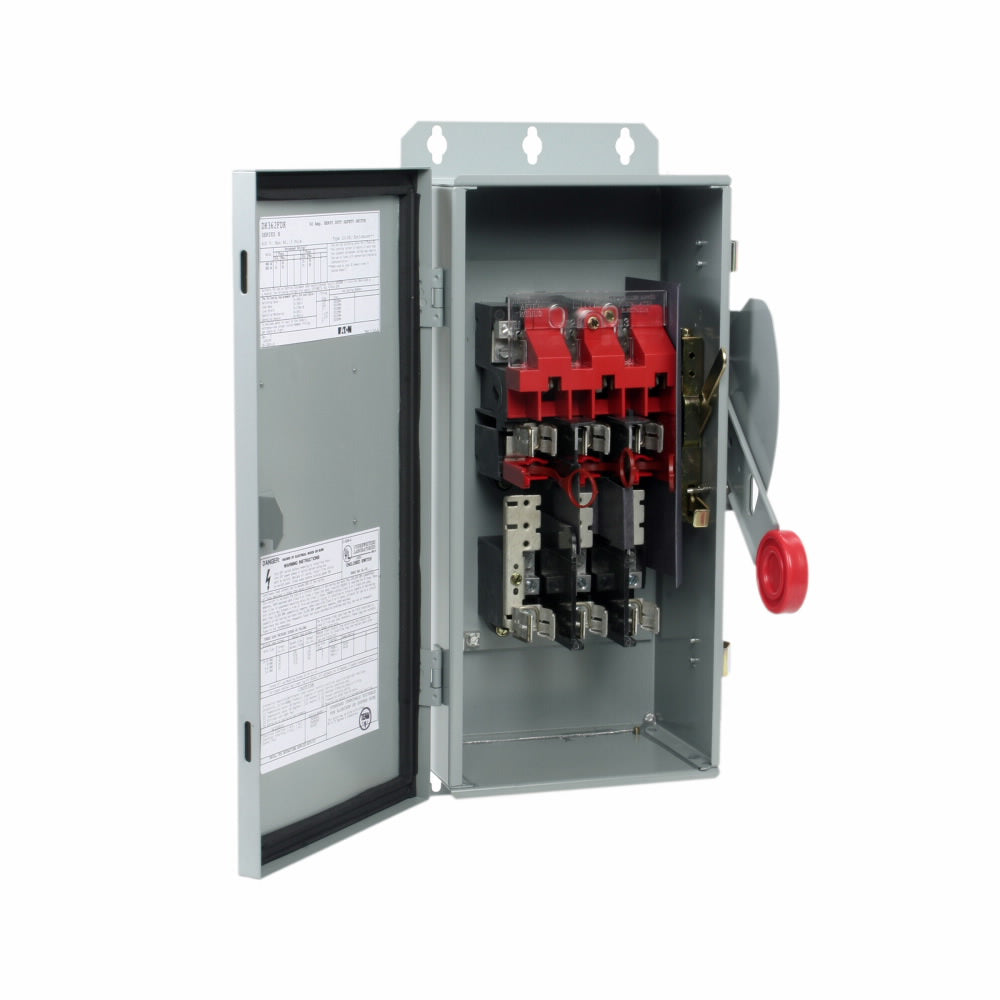

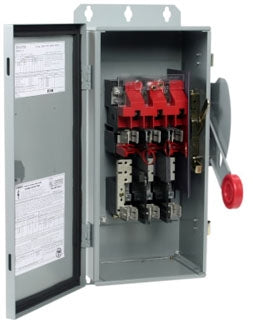

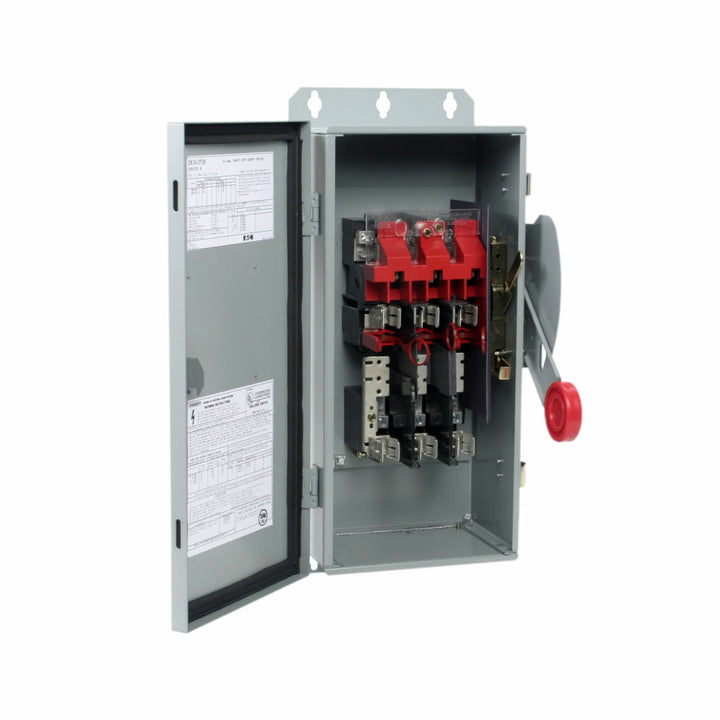

Cutler Hammer DH362FDK - Fusible Disconnect Switch 60A 600V (3-Pole NEMA 12)

Cutler Hammer DH362FDK is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This 3-pole switch provides reliable 600V AC power interruption with a 60A current rating and 200kA interrupting capacity at 600V for robust short-circuit protection. The unit features a compact NEMA 12 enclosure measuring 9.5" x 20" x 8.5" (WxDxH) and accepts Class R fuses with #14-2 AWG copper/aluminum wire connections. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial control panels, motor circuits, and power distribution systems requiring secure isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 9.5 in x 20 in x 8.5 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial control panels, motor circuits, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Wire Size: #14-2 AWG Cu/Al
• Nema Rating: NEMA 12
• Compatible Frames: THJK
• Country of Origin: United States
• Weight: 11 lb

Product Identification

• UPC: 782113206141
• GTIN: 00782274049205
