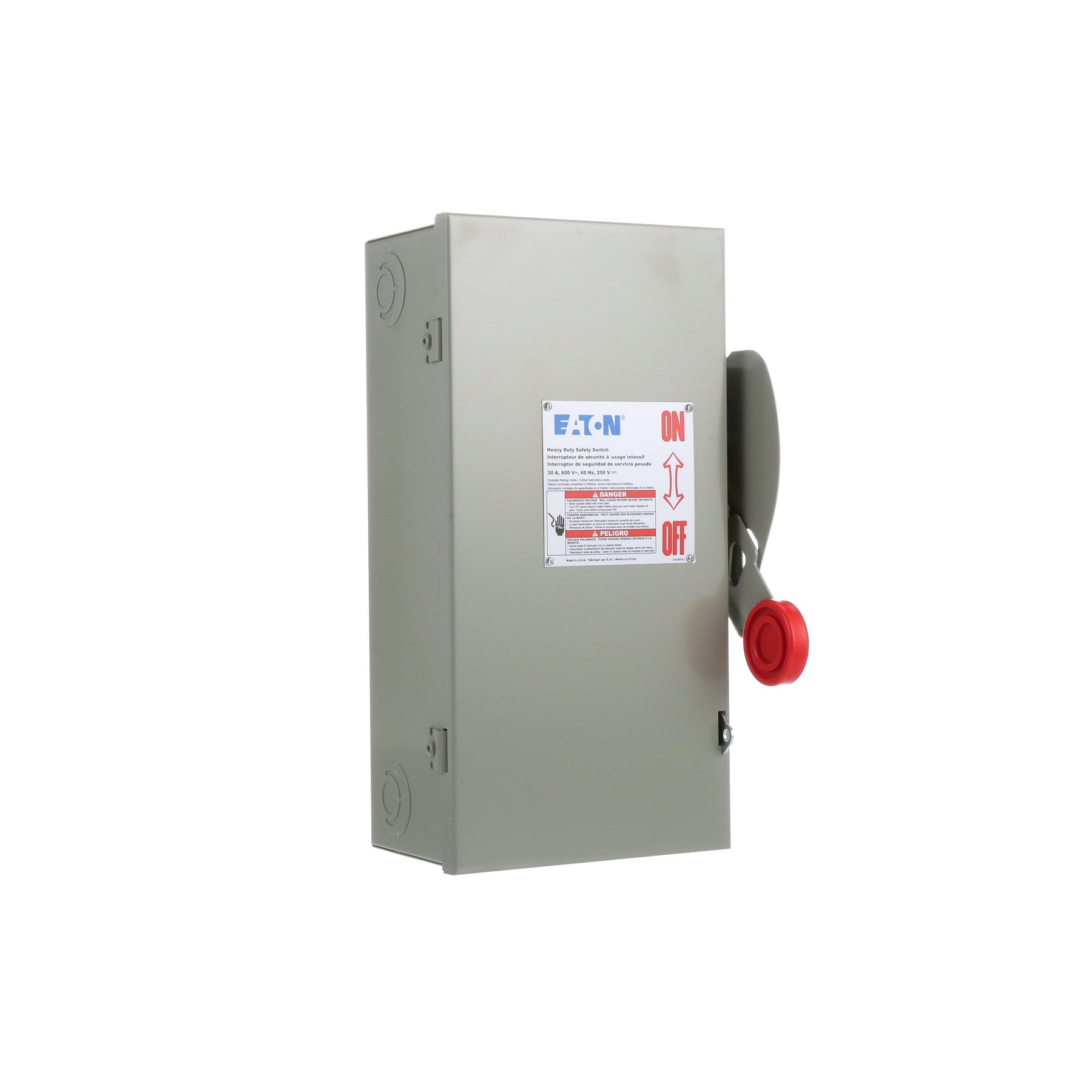

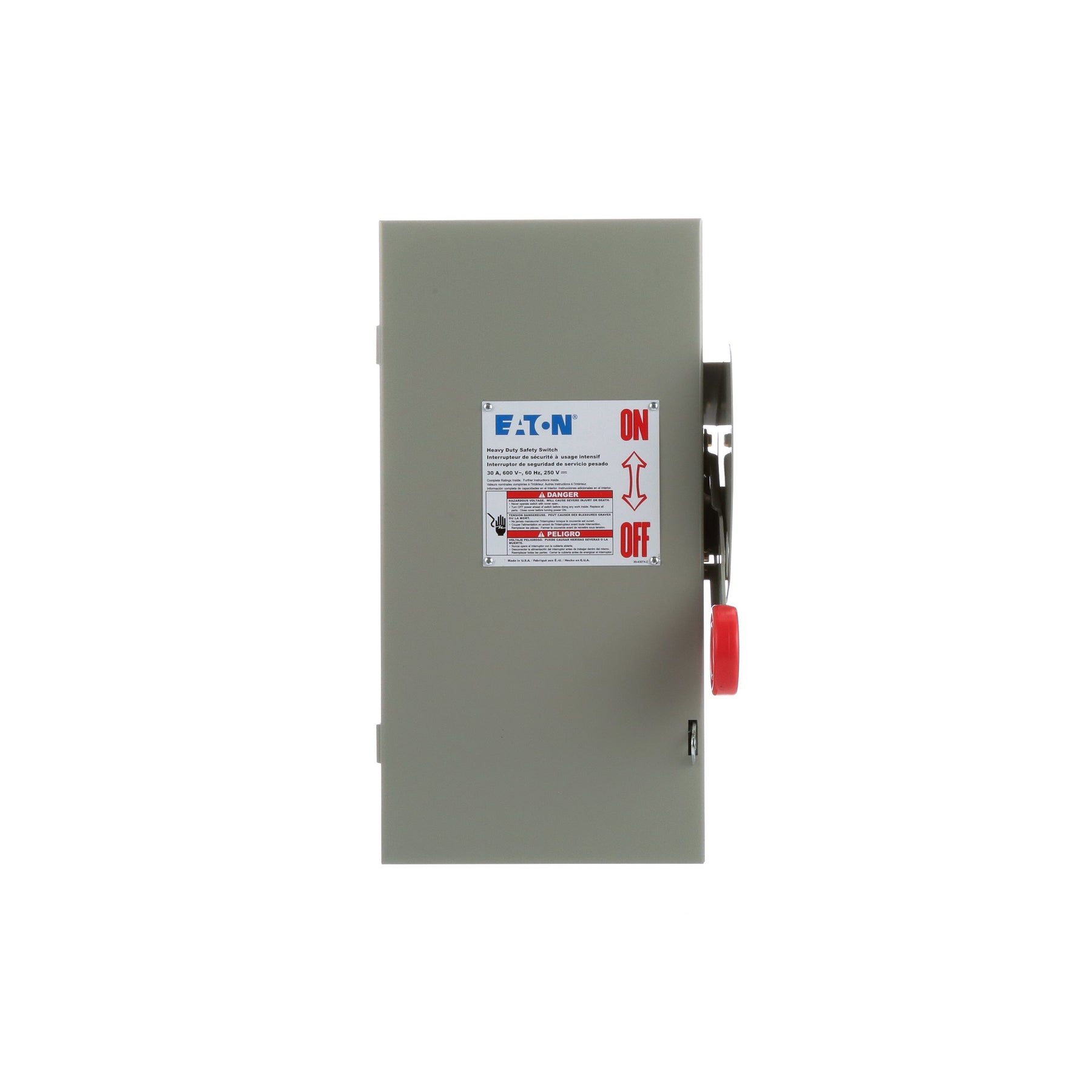

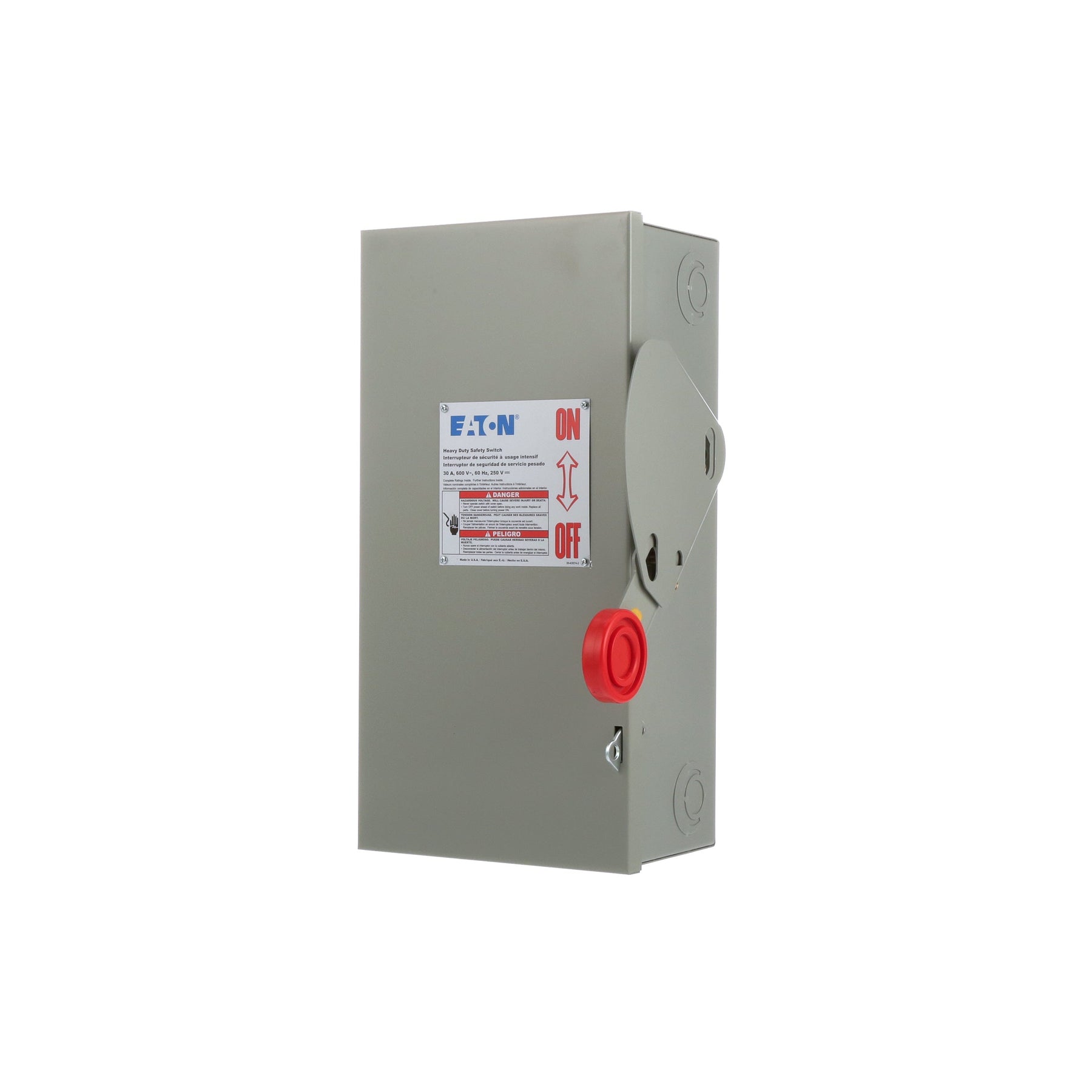

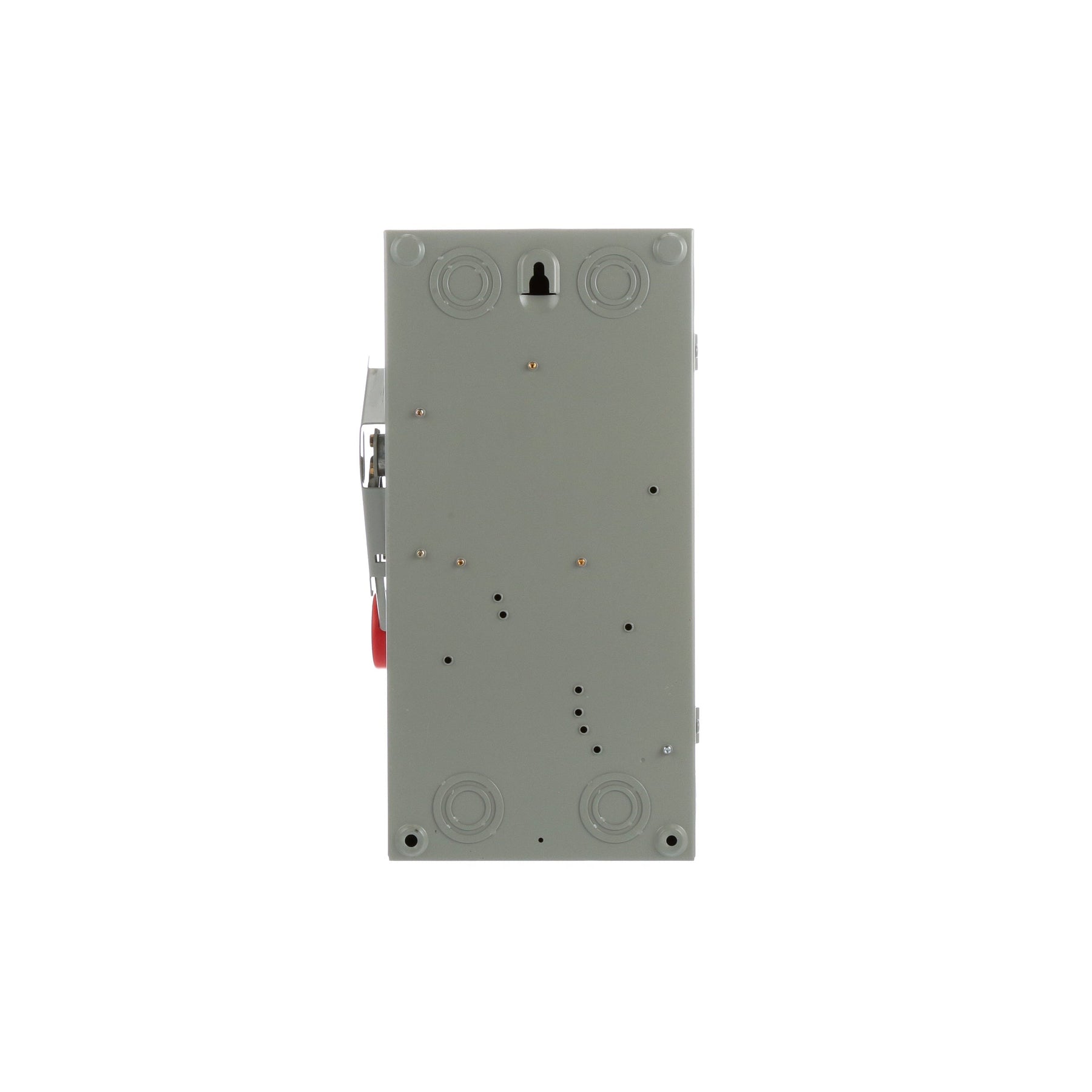

Cutler Hammer DH361UGK - Non-Fusible Disconnect Switch 30A 600V (3-Pole, 200kA AIC)

Cutler Hammer DH361UGK is a heavy-duty safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. This 3-pole, 30A rated switch handles voltages up to 600V AC/250V DC and features a robust 200kA interrupting capacity at 600V for superior short-circuit protection. Constructed with a non-fusible switch mechanism in a NEMA 1 enclosure, the unit measures 8.81" x 9.89" x 15.81" (WxDxH) and weighs 17 lb for durable industrial service. The switch complies with NEMA KS-1, UL98, and UL Listed standards, ensuring safe operation in demanding three-phase industrial environments including motor control centers, machinery, and power distribution panels.

Key Features & Specifications

• Type: Non-Fusible Safety Disconnect Switch, DH Series
• Voltage Rating: 600V AC/250V DC
• Current Rating: 30A
• Dimensions: 8.81 in x 9.89 in x 15.81 in (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control centers, machinery
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 1
• Phase: 3
• Enclosure: NEMA 1
• Weight: 17 lb
• Country of Origin: United States

Product Identification

• UPC: 782113205502
• GTIN: 00783164065107
