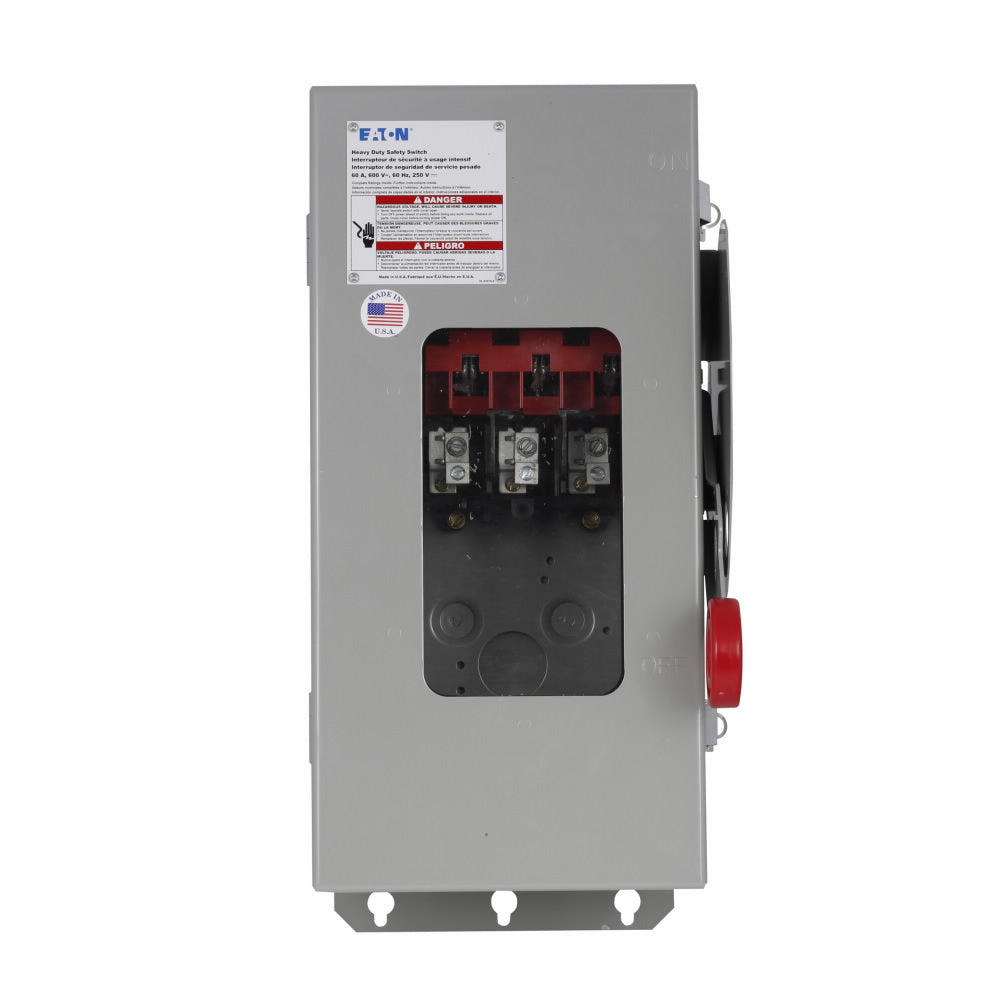

Cutler Hammer DH361NDKW - Fusible Disconnect Switch 30A 600V (3-Pole NEMA 1)

Cutler Hammer DH361NDKW is a fusible safety disconnect switch designed for industrial electrical isolation and circuit protection. This 3-pole switch operates at 600V AC with a 30A current rating and features a 200kA interrupting capacity at 600V for reliable fault protection. The unit is constructed with a NEMA 1 enclosure measuring 12.5" x 23" x 10.5" (WxDxH) and weighs 8 lb, utilizing Class R fuses for enhanced safety. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial power distribution systems, motor control centers, and machinery applications where secure electrical isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 12.5 in x 23 in x 10.5 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Nema Rating: NEMA 1
• Phase: 3
• Compatible Frames: SGPA
• Weight: 8 lb
• Country of Origin: United States

Product Identification

• UPC: 782114022597
• GTIN: 00782113120201
