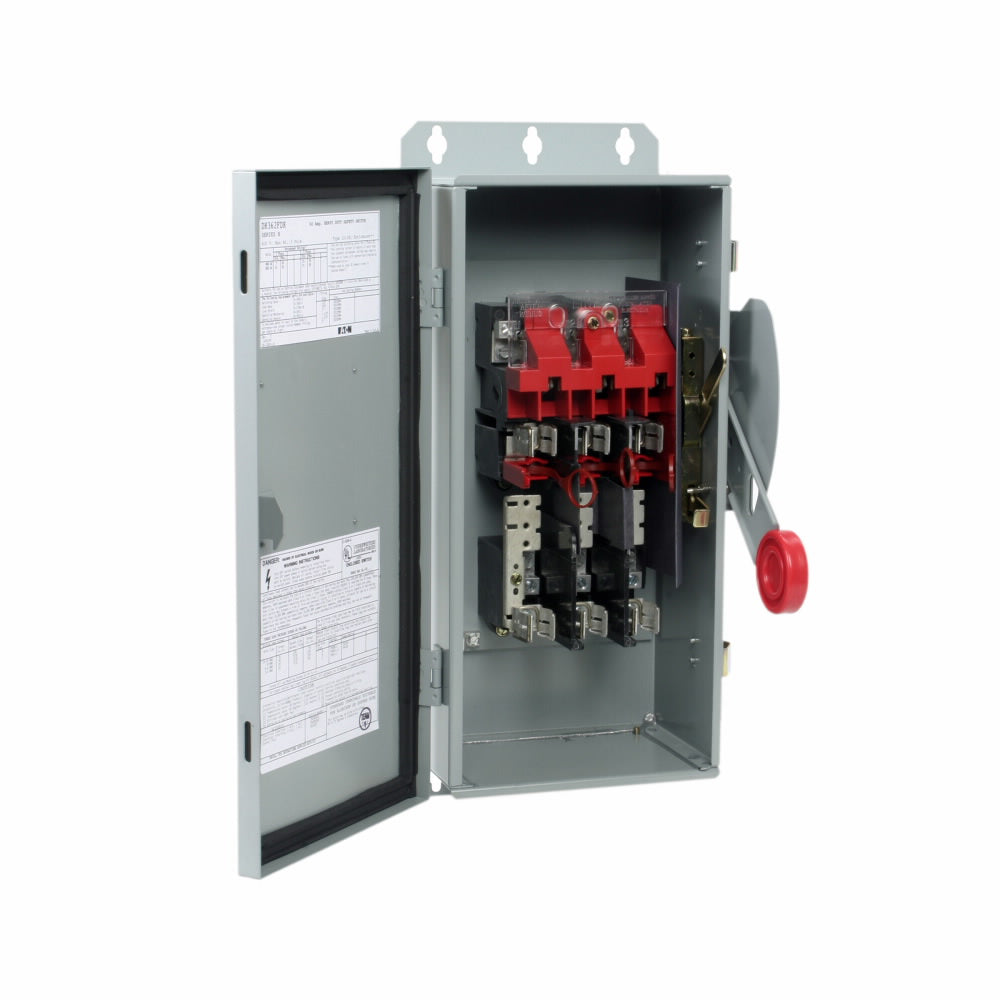

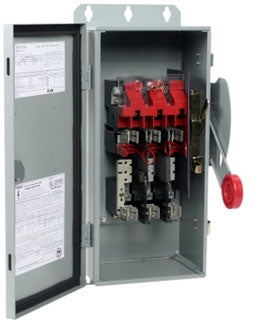

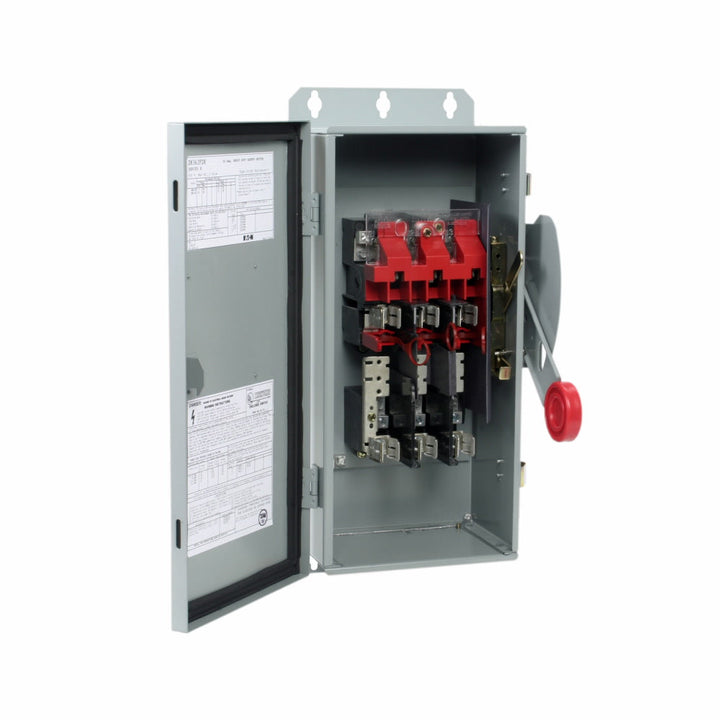

Cutler Hammer DH361FDK - Fusible Disconnect Switch 30A 600V (3-Pole NEMA 12)

Cutler Hammer DH361FDK is a fusible safety disconnect switch designed for industrial electrical isolation and circuit protection. This 3-pole switch features a 600V voltage rating and 30A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The unit measures 9.5" x 20" x 8.5" (WxDxH) with an 8 lb weight and carries NEMA 12 enclosure rating for dust-tight and drip-tight operation. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial control panels, motor disconnects, and power distribution applications requiring reliable circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.5 in x 20 in x 8.5 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial control panels, motor disconnects, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@600V
• Fuse Class: R
• Wire Size: #14 to 2 AWG Cu/Al
• NEMA Rating: NEMA 12
• Compatible Frames: SGLA
• Weight: 8 lb
• Country of Origin: United States

Product Identification

• UPC: 782113205595
• GTIN: 00782113205595
