Cutler Hammer DH326NGK - Fusible Disconnect Switch 600A@240V (100kA AIC Rating)
Regular price
$0.00
$0.00
Regular price
$9,810.00
$9,810.00
Sale price
$0.00
$0.00
Save $9,810
/
- In stock, ready to ship
- Backordered, shipping soon

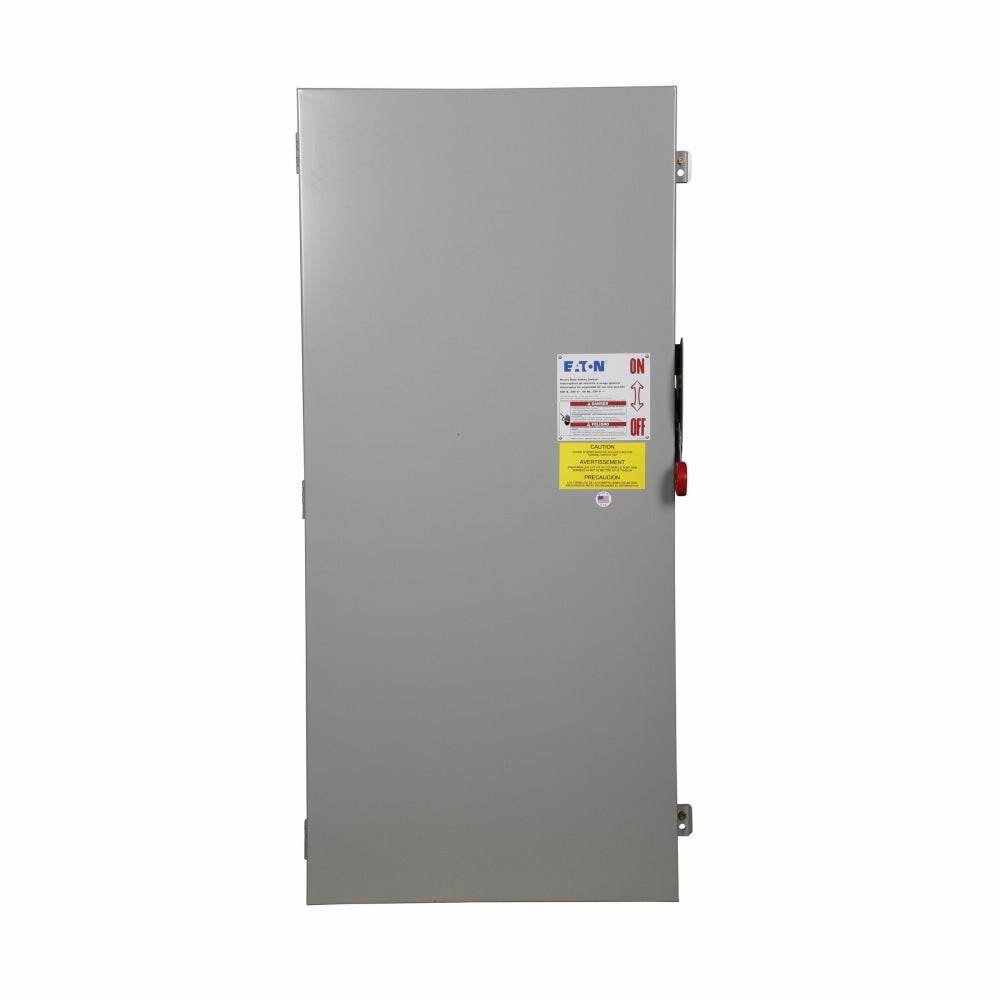

Cutler Hammer DH326NGK is a fusible safety disconnect switch designed for high-current industrial power distribution systems. It features a 600A current rating and 240V voltage rating with a 100kA@240V AIC rating for robust short-circuit protection. The NEMA 1-rated enclosure measures 23.66" x 12.84" x 51.82" (WxDxH) and accommodates R-class fuses with aluminum wire compatibility ranging from #2 to 750Kcmil. UL Listed and NEC 230.62(C) compliant, this 3-phase switch is engineered for commercial/industrial applications requiring reliable circuit isolation.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible disconnect switch with barrier protection
- Voltage Rating: 240V AC
- Current Rating: 600A
- Dimensions: 23.66 x 12.84 x 51.82 inches (WxDxH)
- Standards: UL Listed, NEC 230.62(C) compliant
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Wire Size: (1)#2-(1)600Kcmil and (1)#1/0 to (1)750Kcmil Aluminum
- AIC Rating: 100kA@240V
- NEMA Rating: NEMA 1
- Phase: 3
- Fuse Class: R
- Weight: 240 lb
- Compatible Frames: THJK
Product Identification
- UPC: 782113207414
- GTIN: 00782113000000
