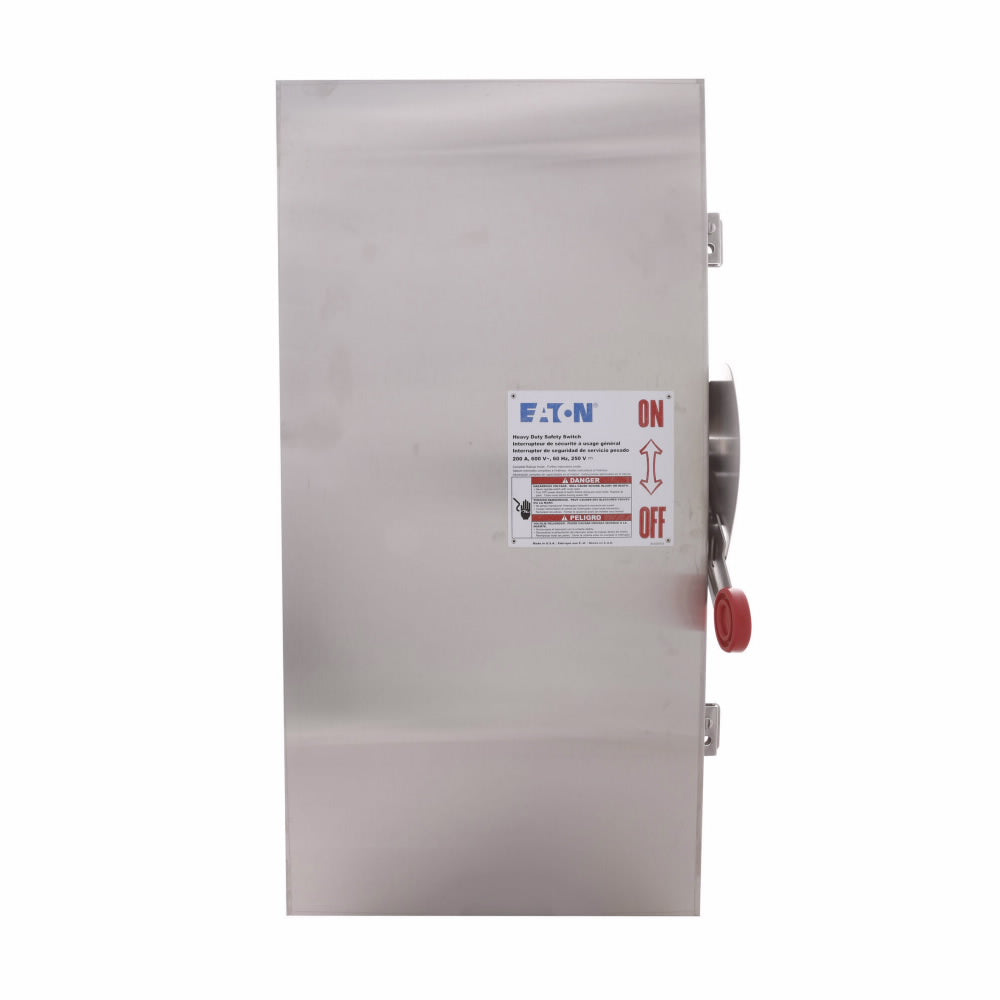

Cutler Hammer DH324NWK - Fusible Disconnect Switch 200A 240V (3-Pole NEMA 4)
Regular price
$3,270.79
$3,270.79
Regular price
$10,570.00
$10,570.00
Sale price
$3,270.79
$3,270.79
Save $7,299.21
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer DH324NWK is a fusible safety disconnect switch designed for industrial power distribution system isolation and protection. This 3-pole switch provides reliable circuit interruption with a 200A current rating and 240V voltage rating, featuring a robust NEMA 4 enclosure that offers protection against weather and environmental contaminants. The unit is UL Listed and constructed with a single configuration design measuring 15.5 x 11.63 x 35.38 inches (WxDxH) and weighing 50 lb. Engineered for high-fault protection, it delivers a 200kA AIC rating at 240V and accepts Class R fuses for enhanced safety. Typical applications include industrial control panels, motor control centers, and main distribution equipment where visible circuit isolation is required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DH Series, single configuration
- Voltage Rating: 240V AC
- Current Rating: 200A
- Dimensions: 15.5 in x 11.63 in x 35.38 in (WxDxH)
- Standards: UL Listed
- Applications: Industrial power distribution, motor control centers, main disconnects
- Switch Type: Disconnect
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC rating: 200kA@240V
- Fuse Class: R
- Nema Rating: NEMA 4
- Compatible Frames: TED
- Weight: 50 lb
- Country of Origin: United States
Product Identification
- UPC: 782113206752
- GTIN: 00782113205397
