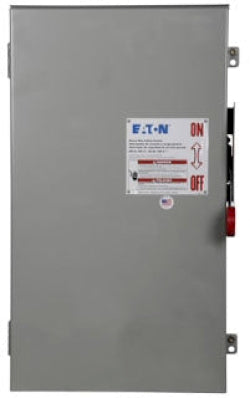

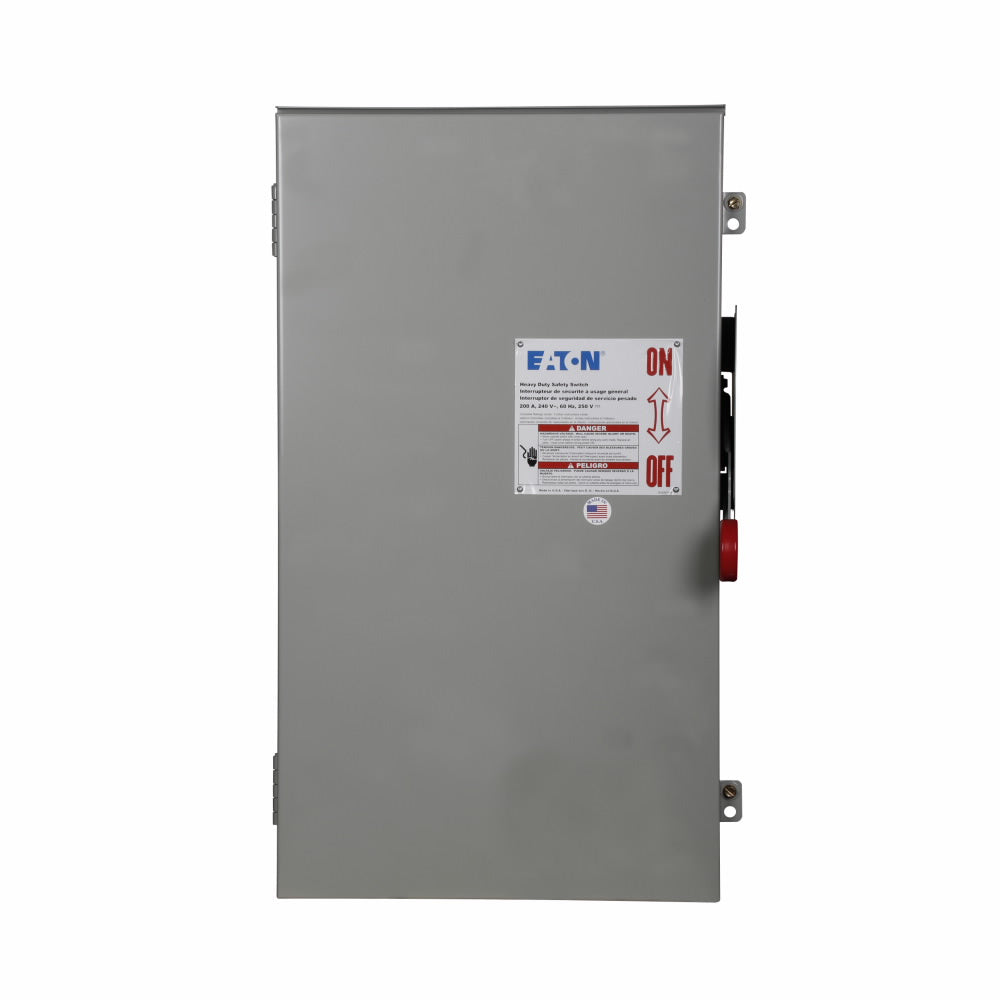

Cutler Hammer DH324FRK - Fusible Disconnect Switch 200A 3-Pole (100kA AIC @240V)

Cutler Hammer DH324FRK is a fusible safety disconnect switch designed for industrial power isolation and circuit protection applications. The unit features a 240V AC voltage rating with 200A current capacity and three-pole single configuration for three-phase systems. Constructed with rugged NEMA 12 enclosure protection, the switch measures 18 x 30 x 9.5 inches (WxDxH) and weighs 41 lb for durable industrial installation. It carries UL Listed certification and provides 100kA interrupting capacity at 240V for reliable fault protection. This disconnect is engineered for industrial control panels, motor circuits, and power distribution systems requiring Class R fuse protection and SKHA frame compatibility.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series, industrial grade
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 18 in x 30 in x 9.5 in (WxDxH)
• Standards: UL Listed, NEMA 12 enclosure rating
• Applications: Industrial control panels, motor circuits, power distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Phase: 3
• Poles: 3
• Protection: Fusible
• AIC rating: 100kA@240V
• Fuse Class: R
• Compatible Frames: SKHA
• Weight: 41 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206677
• GTIN: 00782113206677
