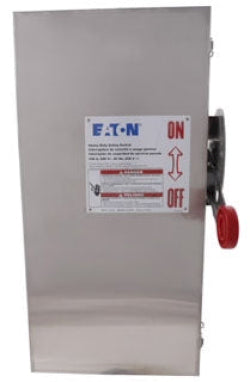

Cutler Hammer DH323NWK - Fusible Disconnect Switch 100A 3-Pole (240V, 200kA AIC)

Cutler Hammer DH323NWK is a fusible safety disconnect switch designed for industrial electrical system isolation and protection. This 3-pole switch operates at 240V AC with a 100A current rating and features a 200kA interrupting capacity at 240V for robust fault protection. Constructed with a NEMA 3R rated enclosure measuring 13.25" x 25.5" x 9" (WxDxH) and weighing 20 lb, it accommodates Class R fuses for enhanced safety. The switch carries UL Listed certification and is compatible with TEB frames, ensuring compliance with industrial electrical standards. Typical applications include motor control centers, industrial machinery, and power distribution systems requiring reliable disconnecting means.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 13.25 in x 25.5 in x 9 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@240V
• Fuse Class: R
• Nema Rating: NEMA 3R
• Compatible Frames: TEB
• Weight: 20 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206349
• GTIN: 00782113206349
