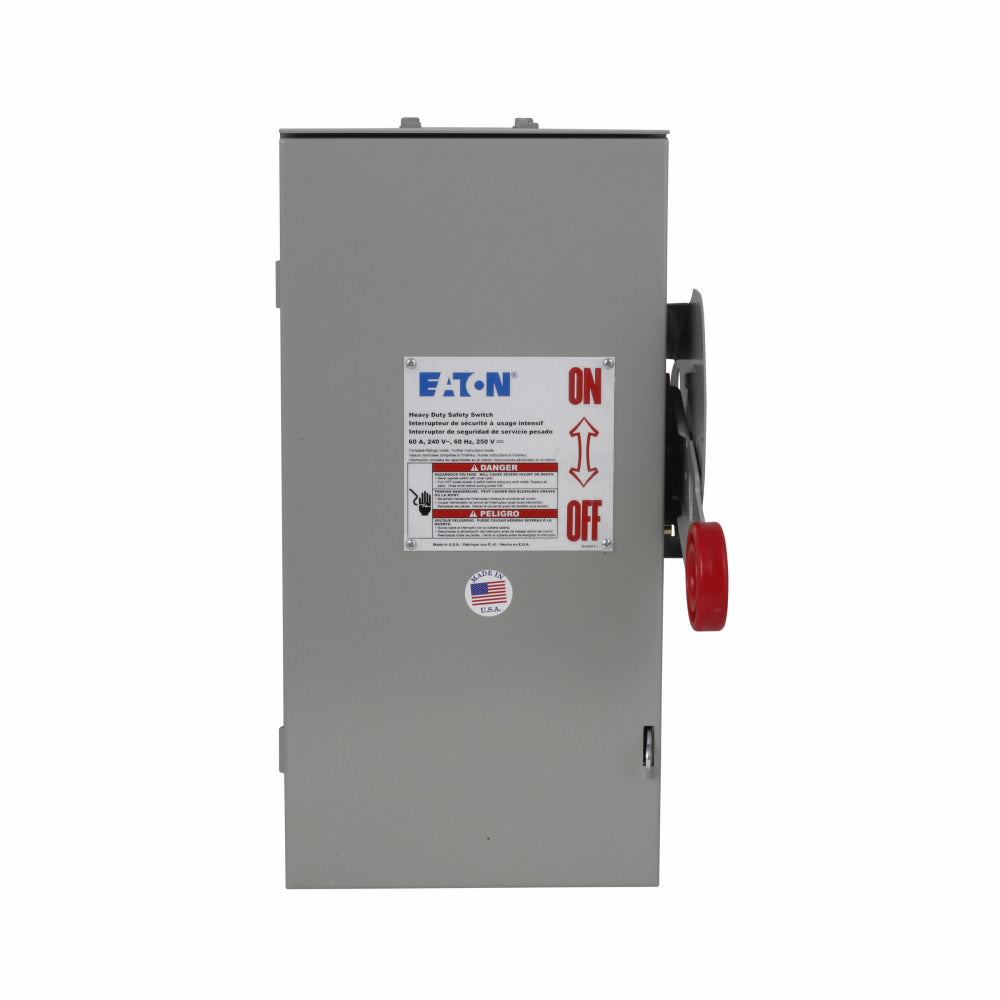

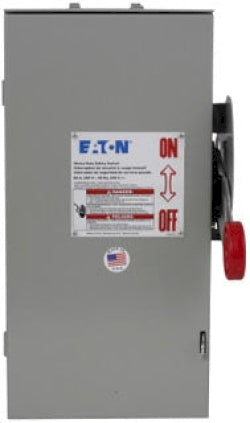

Cutler Hammer DH322NRK - Fusible Disconnect Switch 60A 240V (3-Pole NEMA 1)

Cutler Hammer DH322NRK is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This 3-pole switch operates at 240V AC with a 60A current rating and features a 100kA interrupting capacity for robust fault protection. The NEMA 1 enclosed unit measures 9.5" x 16.5" x 16.27" (WxDxH) and accommodates #14 to 2 AWG copper/aluminum wiring with Class R fuse compatibility. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial control panels, motor disconnects, and power distribution systems where reliable circuit isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 9.5 in x 16.5 in x 16.27 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial control panels, motor disconnects, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 100kA@240V
• Fuse Class: R
• Wire Size: #14 to 2 AWG CU/AL
• Nema Rating: NEMA 1
• Compatible Frames: SKPA
• Country of Origin: United States
• Weight: 11 lb

Product Identification

• UPC: 782113205830
• GTIN: 00782113205830
