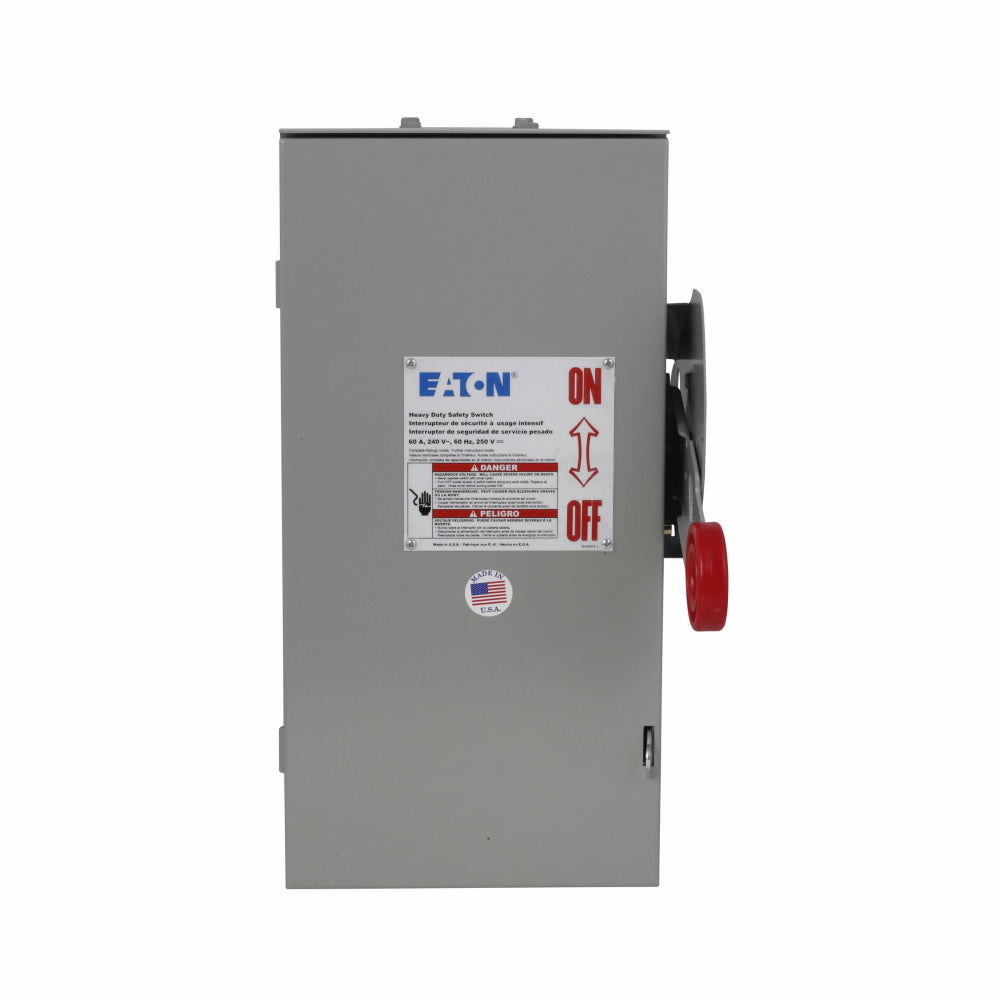

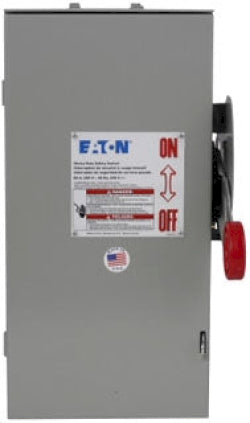

Cutler Hammer DH322FRK - Fusible Disconnect Switch 60A 3-Pole (100kA AIC @240V)

Cutler Hammer DH322FRK is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 3-pole switch provides reliable circuit interruption with a 60A current rating and 240V voltage rating, featuring a robust NEMA 3R enclosure measuring 9.5 x 16.5 x 16.27 inches (WxDxH) with a weight of 16 lb. The unit is UL Listed and accepts Class R fuses while supporting copper/aluminum wiring from AWG 14 to AWG 2. With its 100kA interrupting rating at 240V and compatibility with TJK frames, this disconnect switch is engineered for three-phase industrial power distribution systems requiring high-fault current protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 9.5 in x 16.5 in x 16.27 in (WxDxH)
• Standards: UL Listed, NEMA 3R
• Applications: Industrial power distribution, circuit protection
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 100kA@240V
• Fuse Class: R
• Wire Size: AWG 14 to AWG 2, Cu/Al
• Compatible Frames: TJK
• Weight: 16 lb
• Country of Origin: United States

Product Identification

• UPC: 782113205816
• GTIN: 00782113205816
