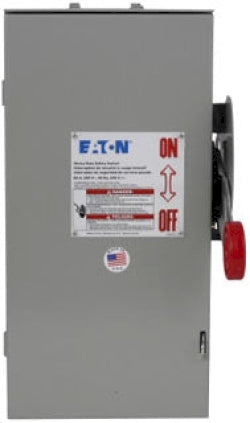

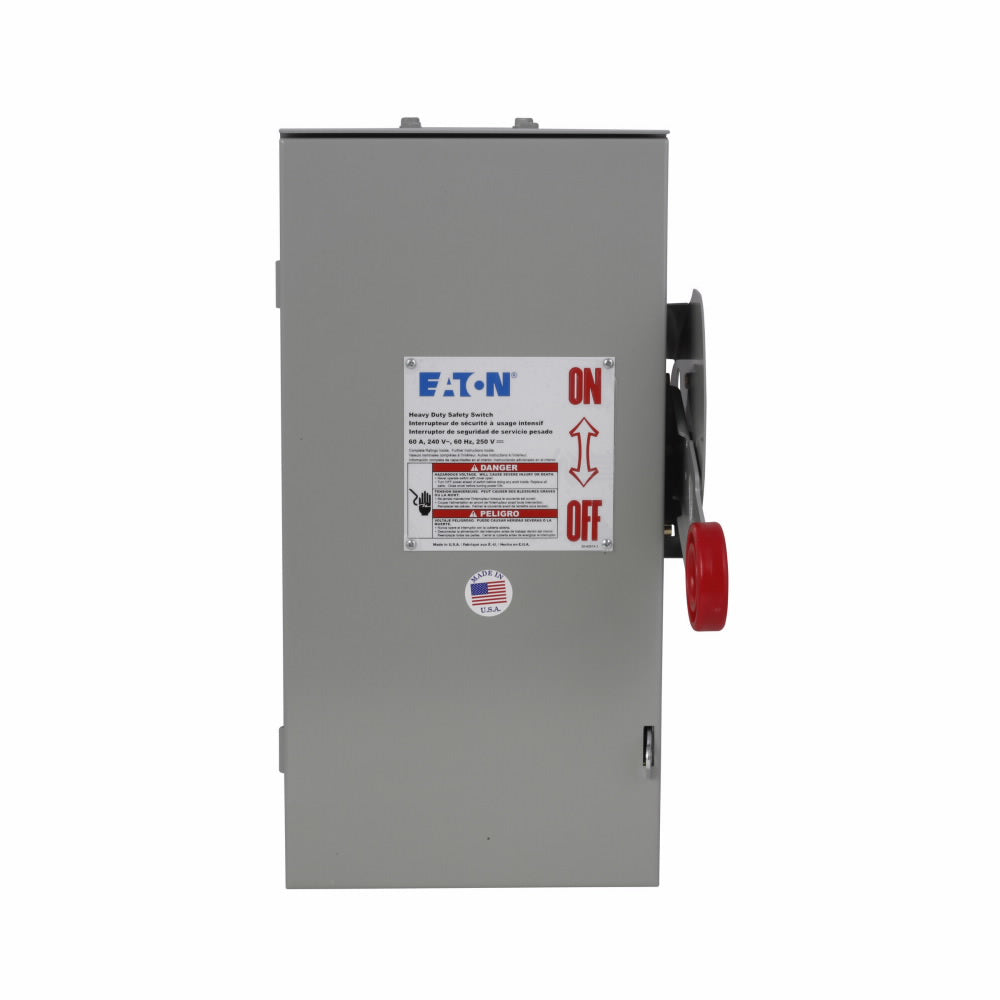

Eaton DH321FRK - Fusible Safety Switch 30A 240V (3-Pole NEMA 3R)

The Eaton DH321FRK is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial applications. It features a 240V voltage rating and 30A current capacity with a 100kA interrupting rating at 240V for robust short-circuit protection. The switch is constructed with a NEMA 3R-rated enclosure measuring 9.5 x 16.5 x 16.27 inches (WxDxH) and weighs 13.85 lb, accommodating Class R fuses in a 3-pole configuration. UL Listed certification ensures compliance with industry safety standards, making it suitable for three-phase power distribution systems. Typical applications include industrial machinery, motor control centers, and electrical distribution panels requiring secure disconnecting means.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 9.5 in x 16.5 in x 16.27 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial machinery, motor control centers, electrical distribution
• Switch Type: Fusible
• Configuration: Single
• Phase: 3
• Poles: 3
• Protection: Circuit isolation and short-circuit protection
• AIC rating: 100kA@240V
• Nema Rating: NEMA 3R
• Fuse Class: R
• Wire Size: AWG 14 to AWG 2, Cu/Al
• Compatible Frames: THJK
• Weight: 13.85 lb
• Country of Origin: United States

Product Identification

• UPC: 782113208497
• GTIN: 00782113208497
