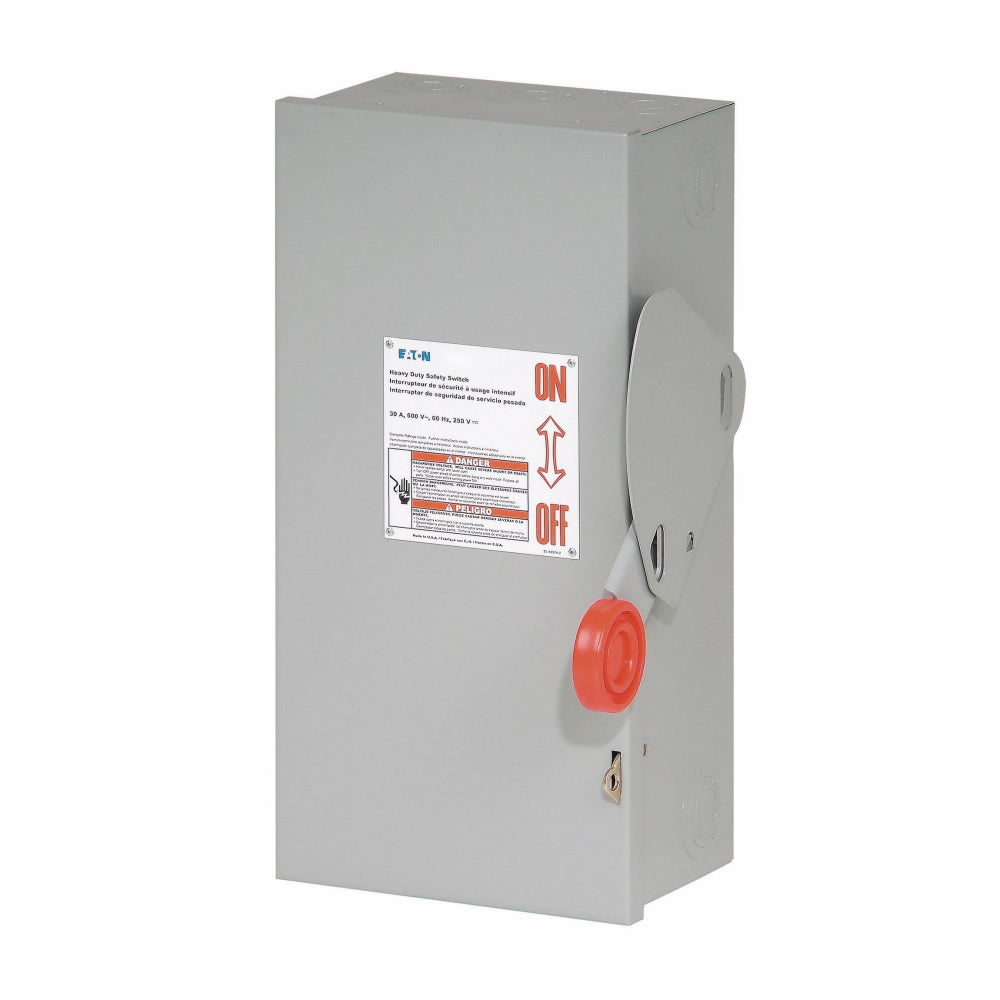

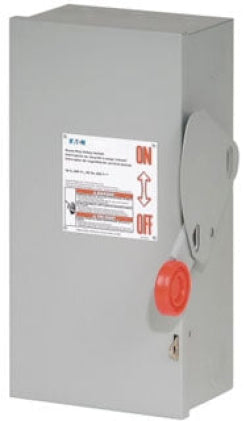

Cutler Hammer DH261FGK - Fusible Disconnect Switch 30A 600V (200kA AIC NEMA 1)

Cutler Hammer DH261FGK is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 30A rated switch operates at 600V AC with a 200kA interrupting capacity, providing robust short-circuit protection in demanding environments. The unit features a compact NEMA 1 enclosure measuring 9.5" x 18" x 7.5" (WxDxH) and weighs 14 lb, constructed with copper/aluminum terminals accepting wire sizes from AWG 14 to AWG 2. It complies with UL standards and NEC 230.62 (C) barrier requirements, ensuring safe operation in industrial settings. Typical applications include motor control centers, industrial machinery, and electrical distribution systems where reliable circuit isolation is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.5" x 18" x 7.5" (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial machinery, motor control centers, electrical distribution
• Switch Style: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• AIC Rating: 200kA@600V
• NEMA Rating: NEMA 1
• Fuse Class: R
• Wire Size: AWG 14 to AWG 2, Cu/Al
• Compatible Frames: TEB
• Weight: 14 lb
• Country of Origin: United States

Product Identification

• UPC: 782113205465
• GTIN: 00783643233171
