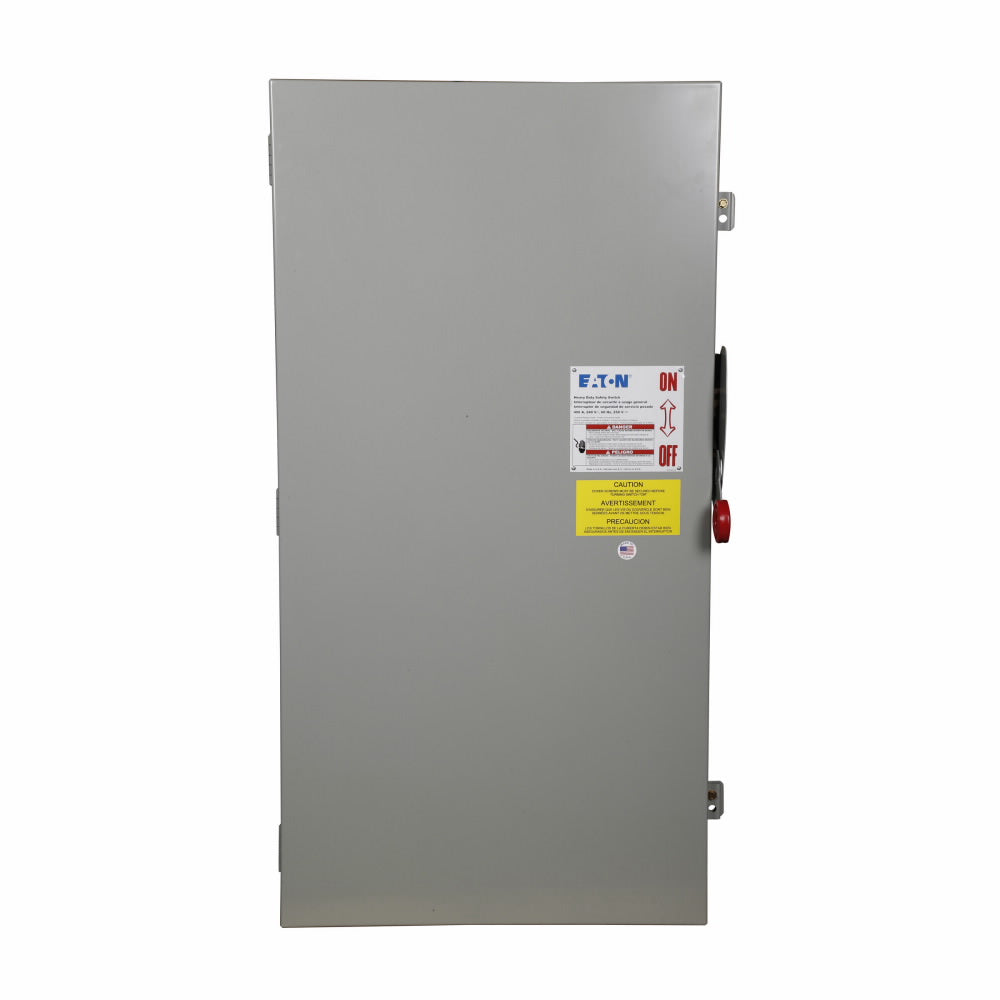

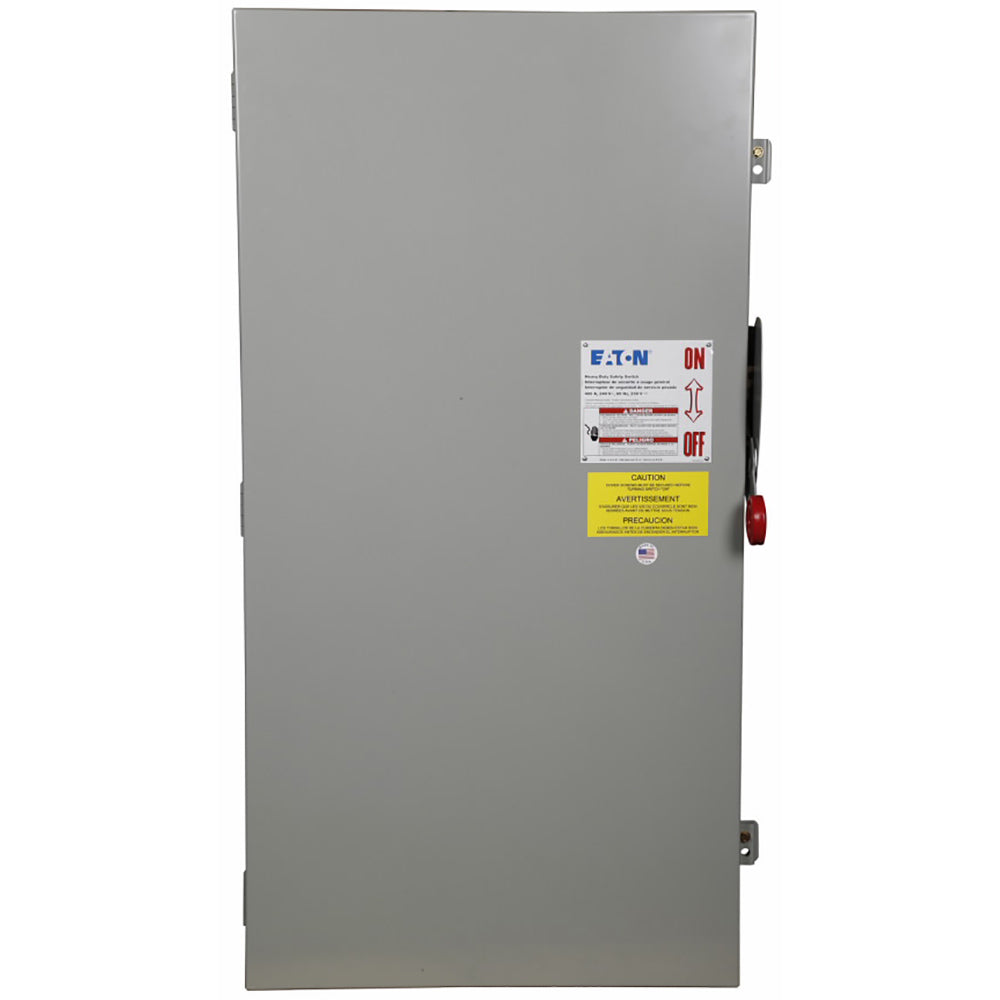

Cutler Hammer DH225NGK - Safety Disconnect Switch 400A 240V (100kA AIC, NEMA 1)
Regular price
$3,386.18
$3,386.18
Regular price
Sale price
$3,386.18
$3,386.18
Save $-3,386.18
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer DH225NGK is a safety disconnect switch designed for industrial power isolation and circuit protection applications. This single-phase unit provides reliable 400A current interruption at 240V AC with a 100kA interrupting rating for robust short-circuit protection. The switch features a rugged NEMA 1 enclosure measuring 25.38" W x 46.12" D x 10.88" H and weighs 150 lb, constructed with Class R fuse compatibility for enhanced safety. It complies with UL standards and NEC 230.62 (C) barrier requirements, ensuring code-compliant installation in industrial environments. Typical applications include motor control centers, industrial machinery, and power distribution systems requiring secure isolation capabilities.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Safety disconnect switch with Class R fuse compatibility
- Voltage Rating: 240V AC
- Current Rating: 400A
- Dimensions: 25.38 in x 46.12 in x 10.88 in (WxDxH)
- Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
- Applications: Industrial power isolation, motor control centers, machinery disconnects
- Switch Type: Disconnect
- Configuration: Single
- AIC rating: 100kA@240V
- Nema Rating: NEMA 1
- Phase: 1
- Fuse Class: R
- Compatible Frames: SGPA
- Weight: 150 lb
- Family: DH Series
- Country of Origin: United States
Product Identification
- UPC: 782113207025
- GTIN: 00782113207025
