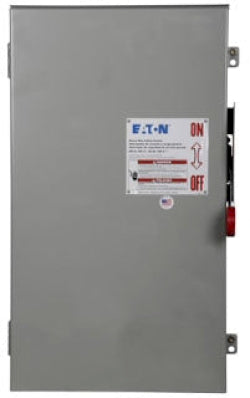

Cutler Hammer DH224NRK - Fusible Disconnect Switch 200A 240V (NEMA 4 100kA AIC)

Cutler Hammer DH224NRK is a fusible safety disconnect switch designed for industrial circuit protection and isolation. The switch provides 200A current rating with 240V voltage capacity and features a 100kA interrupting rating at 240V for reliable fault protection. Constructed with NEMA 4 rated enclosure measuring 15.91" x 27.6" x 6.14" (WxDxH) and weighing 50 lb, it features a 2-pole single configuration compatible with Class R fuses. UL Listed certification ensures compliance with industry safety standards, making it suitable for industrial power distribution systems, motor control centers, and electrical equipment isolation applications where robust protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 15.91 in x 27.6 in x 6.14 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, equipment isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• AIC rating: 100kA@240V
• Switch Style: Fusible
• Nema Rating: NEMA 4
• Phase: 1
• Fuse Class: R
• Compatible Frames: SGLA
• Weight: 50 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206653
• GTIN: 00785901490340
