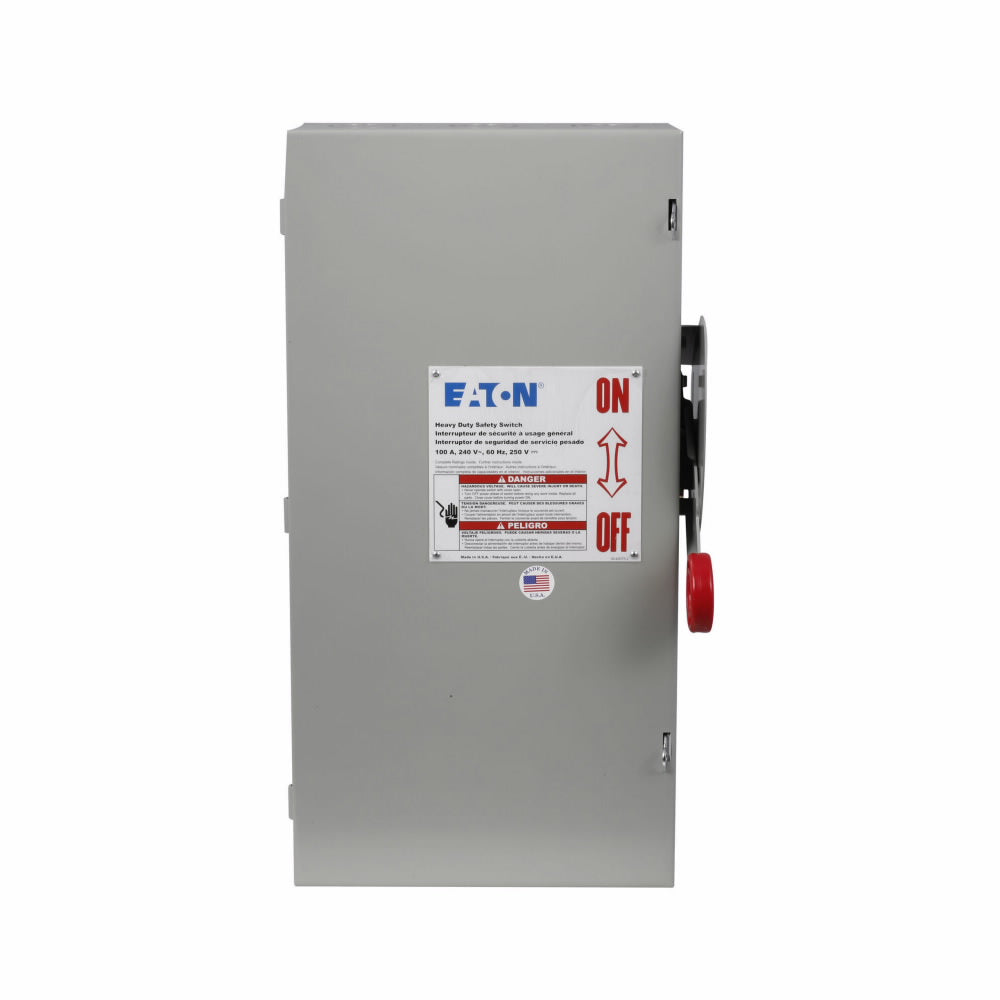

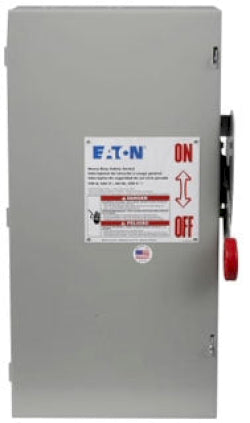

Cutler Hammer DH223NGK - Fusible Disconnect Switch 100A 240V (100kA AIC, NEMA 1)

Cutler Hammer DH223NGK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. It provides 100A current rating and 240V voltage rating with a 100kA@240V interrupting capacity for robust electrical protection. The switch features a compact NEMA 1 enclosure measuring 12.75" x 22.5" x 9" (WxDxH) and weighs 18 lb, constructed with Class R fuse compatibility and accepting wire sizes from AWG 14 to AWG 1/0 for copper or aluminum conductors. This unit is UL Listed and complies with NEC 230.62(C) barrier requirements, ensuring adherence to industry safety standards. Typical applications include industrial control panels, motor control centers, and electrical distribution systems where safe maintenance isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 12.75 in x 22.5 in x 9 in (WxDxH)
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier
• Applications: Industrial control panels, motor control centers, electrical distribution
• Switch Type: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• AIC Rating: 100kA@240V
• Wire Size: AWG 14 to AWG 1/0, Cu/Al
• Fuse Class: R
• NEMA Rating: NEMA 1
• Weight: 18 lb
• Compatible Frames: SGHA
• Country of Origin: United States

Product Identification

• UPC: 782113206226
• GTIN: 00783164087079
