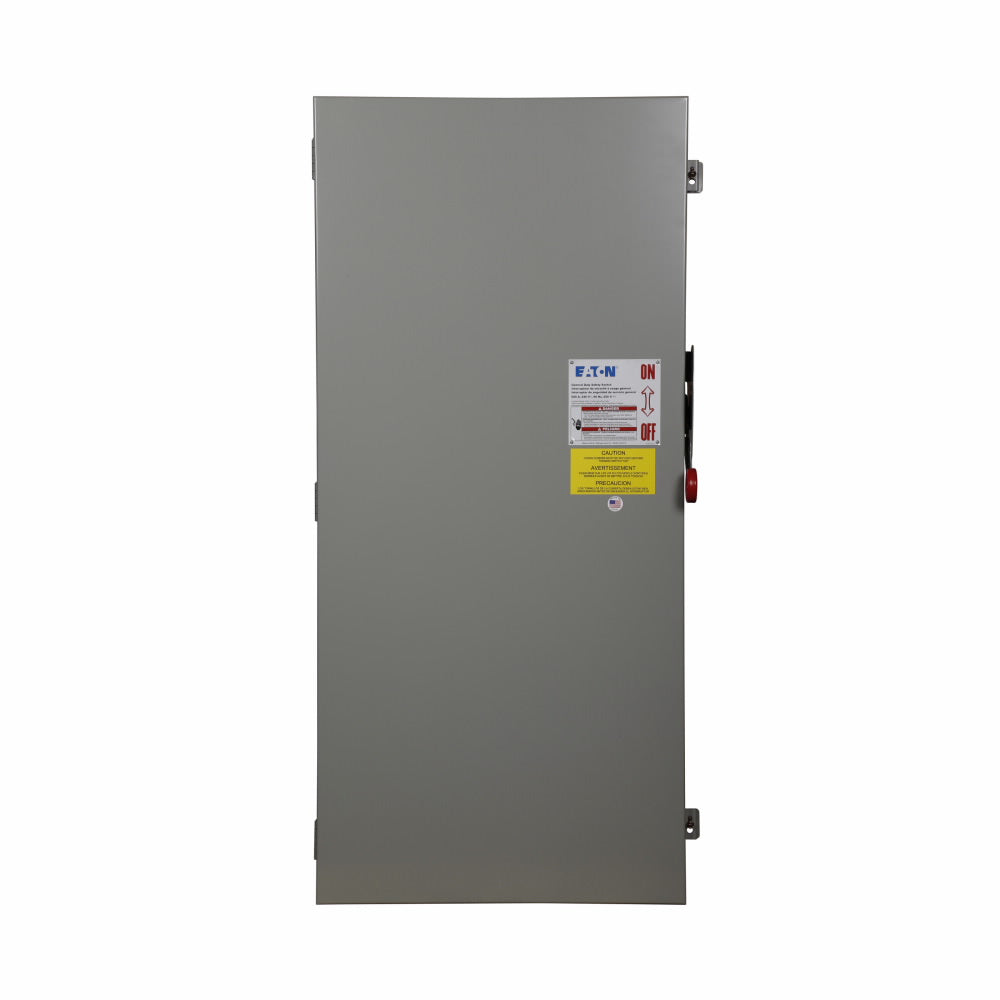

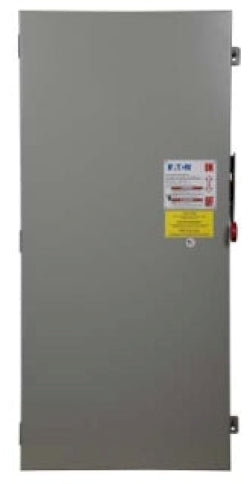

Cutler Hammer DG326NGK - Fusible Disconnect Switch 600A@240V (100kA AIC)
Regular price
$3,396.49
$3,396.49
Regular price
$8,225.00
$8,225.00
Sale price
$3,396.49
$3,396.49
Save $4,828.51
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer DG326NGK is a fusible safety disconnect switch designed for industrial power distribution systems requiring high fault current protection. This UL-listed, NEMA 1-rated switch handles 600A continuous current at 240V AC with a 100kA interrupting capacity, housed in a rugged 18.57" x 14.25" x 11.5" steel enclosure weighing 240 lb. It complies with NEC 230.62(C) barrier requirements and features Class R fuse compatibility for enhanced circuit protection. The three-pole single-throw configuration is engineered for three-phase applications in manufacturing plants, data centers, and heavy machinery installations where reliable isolation is critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch with TED frame compatibility
- Voltage Rating: 240V AC
- Current Rating: 600A continuous
- Dimensions: 18.57" W x 14.25" D x 11.5" H (472mm x 362mm x 292mm)
- Standards: UL Listed, NEC 230.62(C) compliant barrier
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single-throw
- Poles: 3
- Phase: 3
- AIC rating: 100kA@240V
- Fuse Class: R
- NEMA Rating: NEMA 1
- Weight: 240 lb (109 kg)
- Country of Origin: United States
Product Identification
- UPC: 782113639222
- GTIN: 00782114000000
Quote Request
