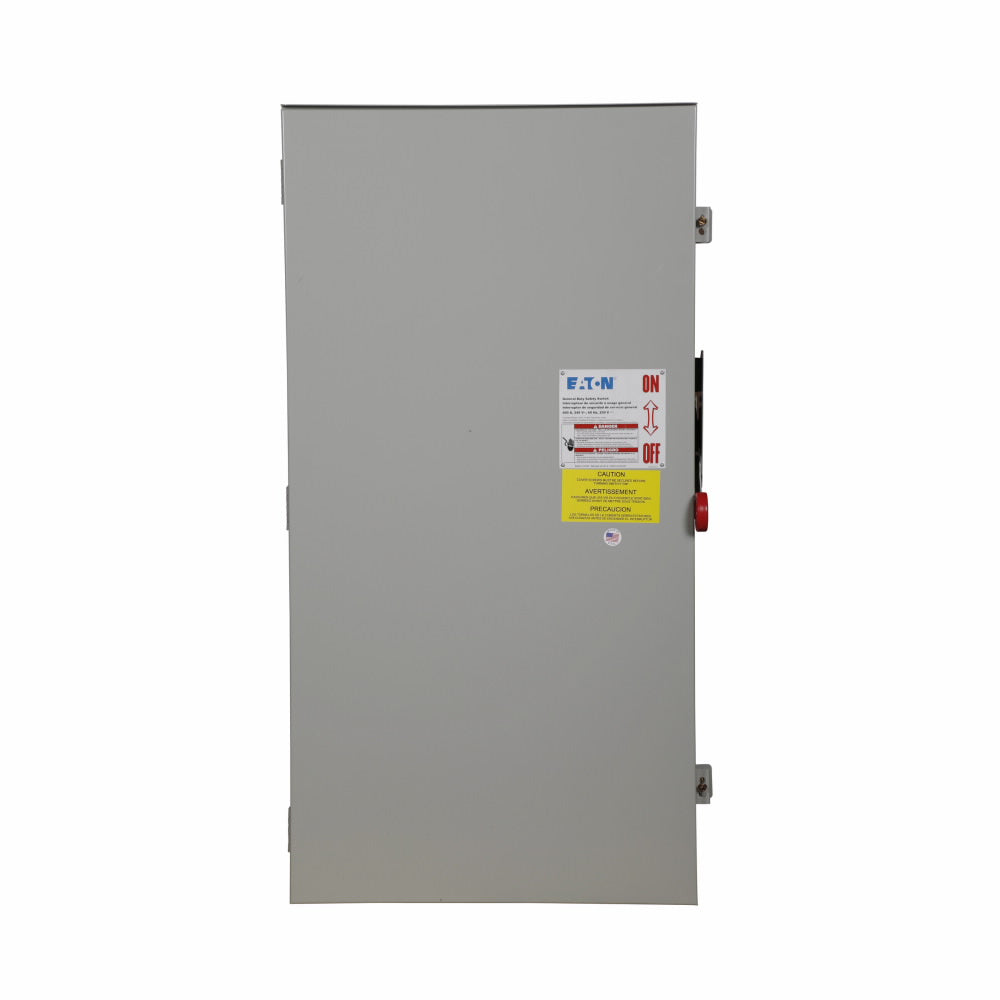

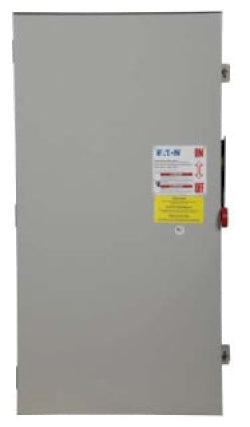

Cutler Hammer DG325URK - Non-Fusible Disconnect Switch 400A 240V 3-Phase (100kA AIC Rating)

Cutler Hammer DG325URK is a heavy-duty disconnect switch designed for industrial power distribution system isolation and safety. This non-fusible switch provides reliable circuit interruption with a 400A current rating and 240V voltage rating for three-phase systems, featuring a 100kA@240V AIC rating for robust fault protection. The unit is constructed with a NEMA 3R rated enclosure measuring 16" x 7.27" x 44.74" (WxDxH) and weighs 150 lb, built for demanding industrial environments. It complies with UL standards and NEC 230.62 (C) requirements for barrier compliance, ensuring safe operation in industrial settings. This disconnect is typically deployed in industrial power distribution panels, manufacturing facilities, and commercial electrical systems where reliable circuit isolation is critical.

Key Features & Specifications

• Type: Non-Fusible Disconnect Switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 400A
• Dimensions: 16" x 7.27" x 44.74" (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial Power Distribution, Manufacturing Facilities
• Switch Type: Non-Fusible
• Configuration: Single
• Phase: 3
• Poles: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 3R
• Compatible Frames: TED
• Weight: 150 lb
• Country of Origin: United States

Product Identification

• UPC: 782113589541
• GTIN: 00782113589541
