Cutler Hammer DG325NRK - Fusible Disconnect Switch 400A@240V (100kA AIC, NEMA 3R)
Regular price
$1,124.53
$1,124.53
Regular price
$5,495.00
$5,495.00
Sale price
$1,124.53
$1,124.53
Save $4,370.47
/
- Low stock - 1 item left
- Backordered, shipping soon

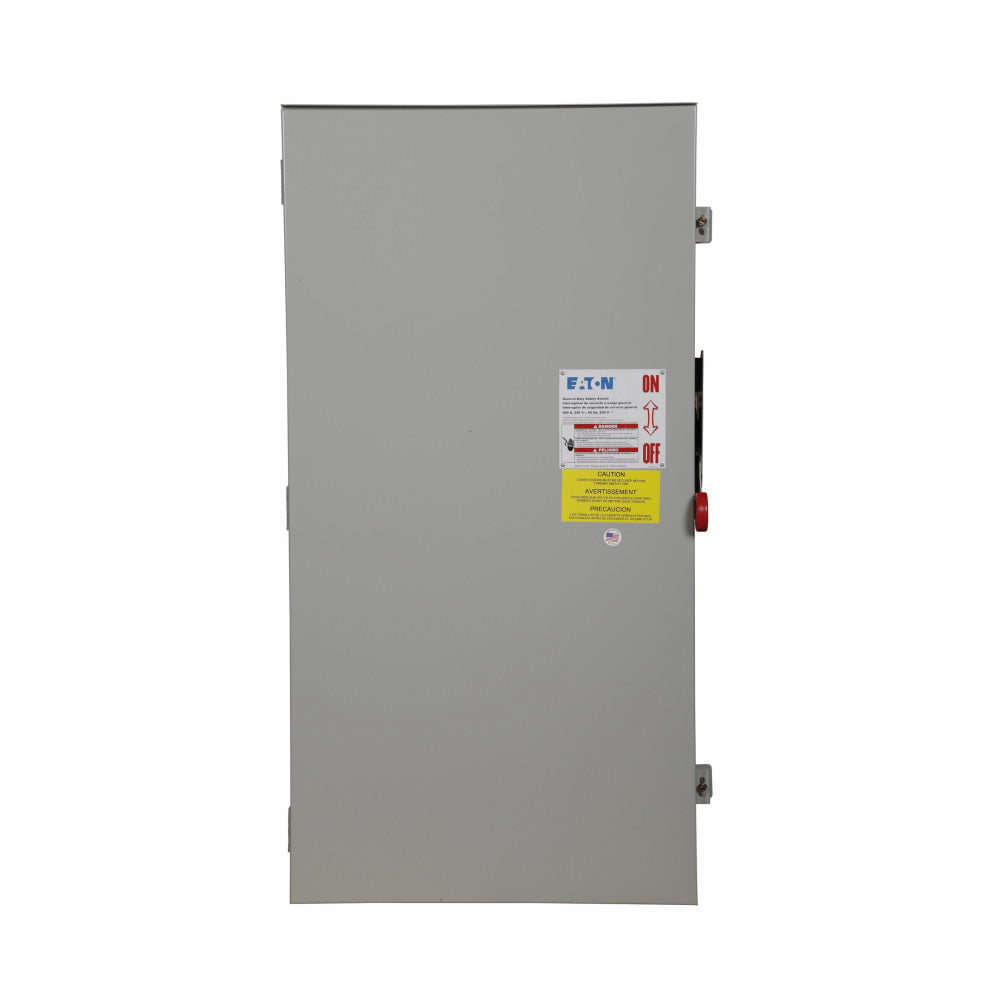

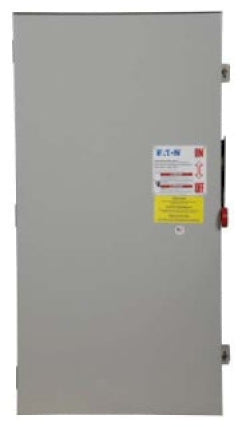

Cutler Hammer DG325NRK is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed, 3-pole switch features a 240V voltage rating and 400A current capacity with a 100kA@240V AIC rating for high-fault current interruption. The NEMA 3R-rated enclosure measures 16" x 7.27" x 44.74" (WxDxH) and weighs 150 lb, constructed with Class R fuse compatibility and NEC 230.62(C) compliant barriers. Certified for industrial safety standards, it's engineered for three-phase applications in manufacturing plants, data centers, and heavy machinery power control panels where TEB frame compatibility is required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible disconnect switch with barrier protection
- Voltage Rating: 240V AC
- Current Rating: 400A
- Dimensions: 16" W x 7.27" D x 44.74" H
- Standards: UL Listed, NEC 230.62(C) compliant
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- AIC rating: 100kA@240V
- Nema Rating: NEMA 3R
- Phase: 3
- Fuse Class: R
- Weight: 150 lb
- Compatible Frames: TEB
Product Identification
- UPC: 782113639215
- GTIN: 00782114000000
