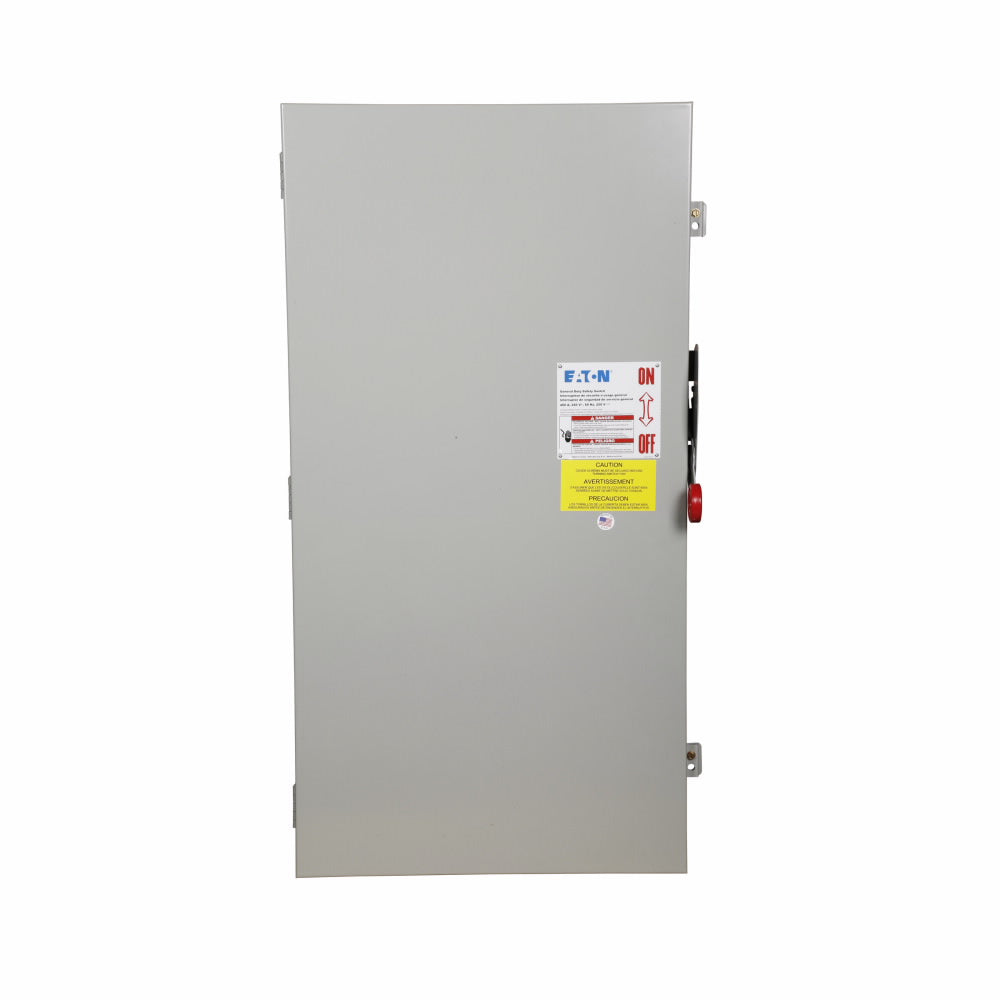

Cutler Hammer DG325FGK - DG Series Disconnect Switch 400A@240V (100kA AIC NEMA 1)

Cutler Hammer DG325FGK is a heavy-duty disconnect switch designed for industrial power distribution systems requiring high fault current protection. This UL-listed, 3-pole single-configuration switch features a 240V voltage rating and 400A current capacity with a 100kA AIC rating at 240V for robust circuit interruption. The NEMA 1-rated enclosure measures 16" x 7.27" x 44.74" (WxDxH) with an 18 lb steel construction, incorporating Class R fuse compatibility and NEC 230.62(C) compliant barriers. Certified for industrial safety standards, it's engineered for use in commercial facilities, manufacturing plants, and utility applications where TEB frame compatibility is required.

Key Features & Specifications

• Type: DG Series industrial safety switch with barrier mechanism
• Voltage Rating: 240V AC
• Current Rating: 400A
• Dimensions: 16" W x 7.27" D x 44.74" H (406mm x 185mm x 1136mm)
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@240V
• Fuse Class: R
• Nema Rating: NEMA 1
• Compatible Frames: TEB
• Weight: 18 lb (8.16 kg)
• Country of Origin: United States

Product Identification

• UPC: 782113589510
• GTIN: 00782114000000
