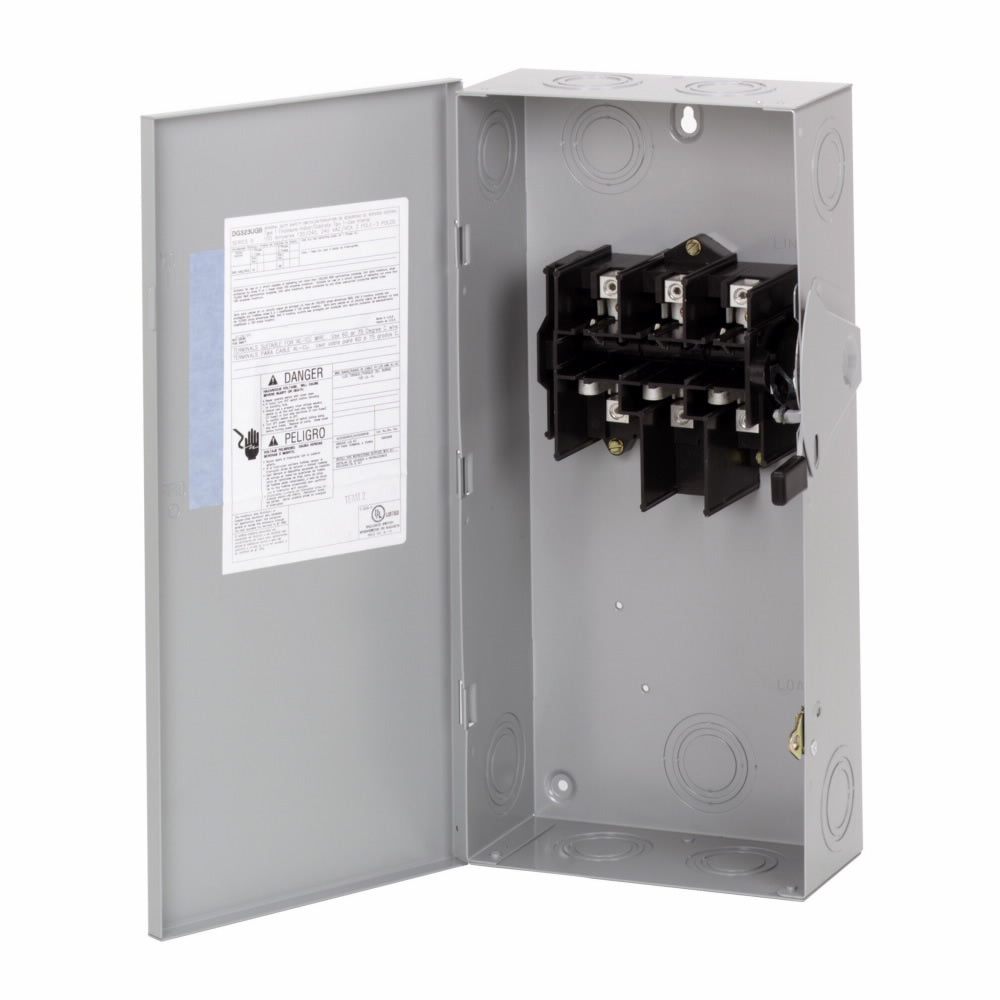

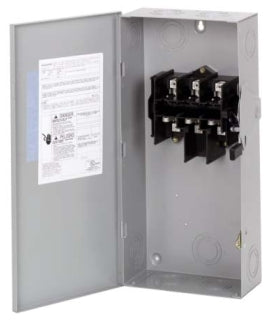

Cutler Hammer DG323UGB - Non-Fusible Disconnect Switch 100A 240V AC (3-Pole, 100kA AIC)

Cutler Hammer DG323UGB is a non-fusible safety disconnect switch designed for reliable power isolation in industrial applications. It provides 100A current handling capacity with a 240V AC voltage rating for three-phase systems, featuring a robust NEMA 1 enclosure rated for 100kA interrupting capacity at 240V. The switch measures 16.1" W x 7.38" D x 18.81" H and weighs 12 lb, constructed with three-pole single configuration for secure operation. It complies with NEMA KS-1, UL98, and UL Listed standards, ensuring safe performance in industrial power distribution systems. Typical applications include motor control centers, industrial machinery, and electrical distribution panels where visible circuit isolation is required.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 16.1" W x 7.38" D x 18.81" H
• Weight: 12 lb
• Standards: NEMA KS-1, UL98, UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 1
• Compatible Frames: TB
• Country of Origin: United States

Product Identification

• UPC: 782113144368
• GTIN: 00782113144368
