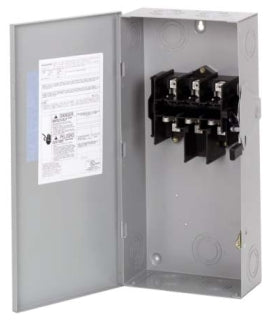

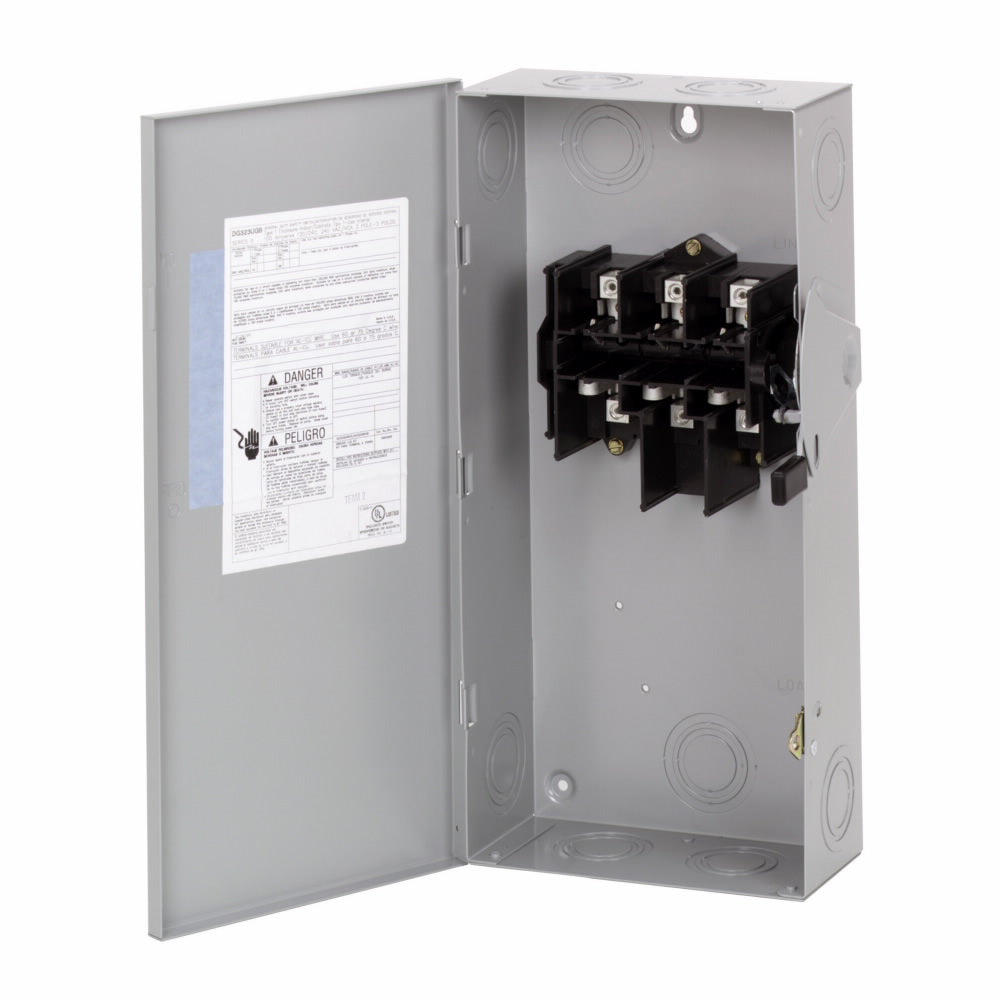

Cutler Hammer DG323NGB - Fusible Disconnect Switch 100A 3-Pole (240V AC, 100kA AIC)

Cutler Hammer DG323NGB is a fusible safety disconnect switch designed for providing reliable circuit isolation and protection in industrial power distribution systems. This 3-pole switch operates at 240V AC with a 100A current rating and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The unit is housed in a NEMA 1 enclosure measuring 15.5" x 7.38" x 18.81" (WxDxH) and weighs 18 lb, constructed for durable industrial service. It complies with NEMA KS-1, UL98, and UL Listed standards, ensuring safe operation in demanding environments. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure disconnection and Class R fuse protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 15.5" x 7.38" x 18.81" (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control centers, machinery
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 1
• Phase: 3-phase
• Fuse Class: R
• Compatible Frames: TB
• Weight: 18 lb
• Enclosure: NEMA 1
• Country of Origin: United States

Product Identification

• UPC: 782113144344
• GTIN: 00782113144344
