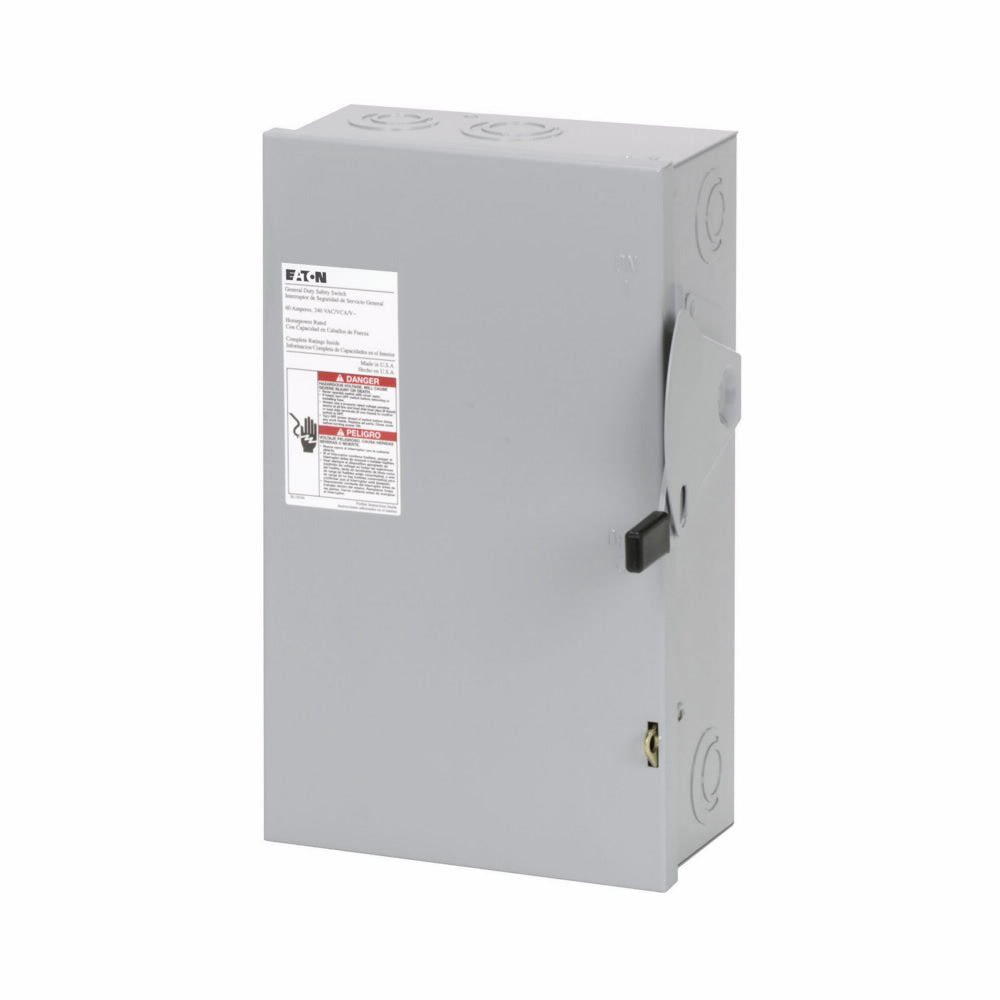

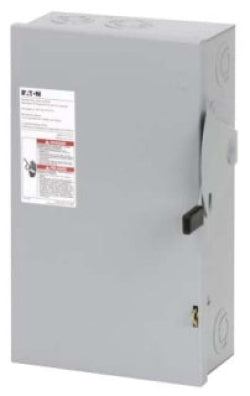

Cutler Hammer DG322UGB - Non-Fusible Disconnect Switch 60A 240V (3-Pole, 100kA AIC)

Cutler Hammer DG322UGB is a non-fusible safety disconnect switch designed for reliable power isolation in industrial applications. This 3-pole switch operates at 240V AC with a 60A current rating and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The unit is constructed with a NEMA 1 enclosure measuring 12.5" x 7.38" x 14.19" (WxDxH) and weighs 11 lb for durable performance in demanding environments. It complies with NEMA KS-1, UL98, and UL Listed standards, ensuring adherence to industry safety requirements. Typical applications include motor control centers, industrial machinery, and power distribution systems where safe maintenance and equipment isolation are critical.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 12.5" x 7.38" x 14.19" (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial machinery, motor control centers, power distribution systems
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 1
• Compatible Frames: TB
• Weight: 11 lb
• Country of Origin: United States

Product Identification

• UPC: 782113144306
• GTIN: 00785901994664
