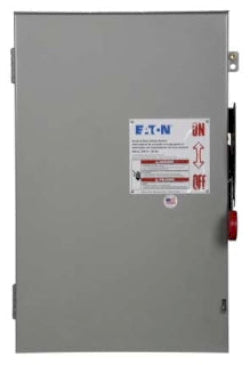

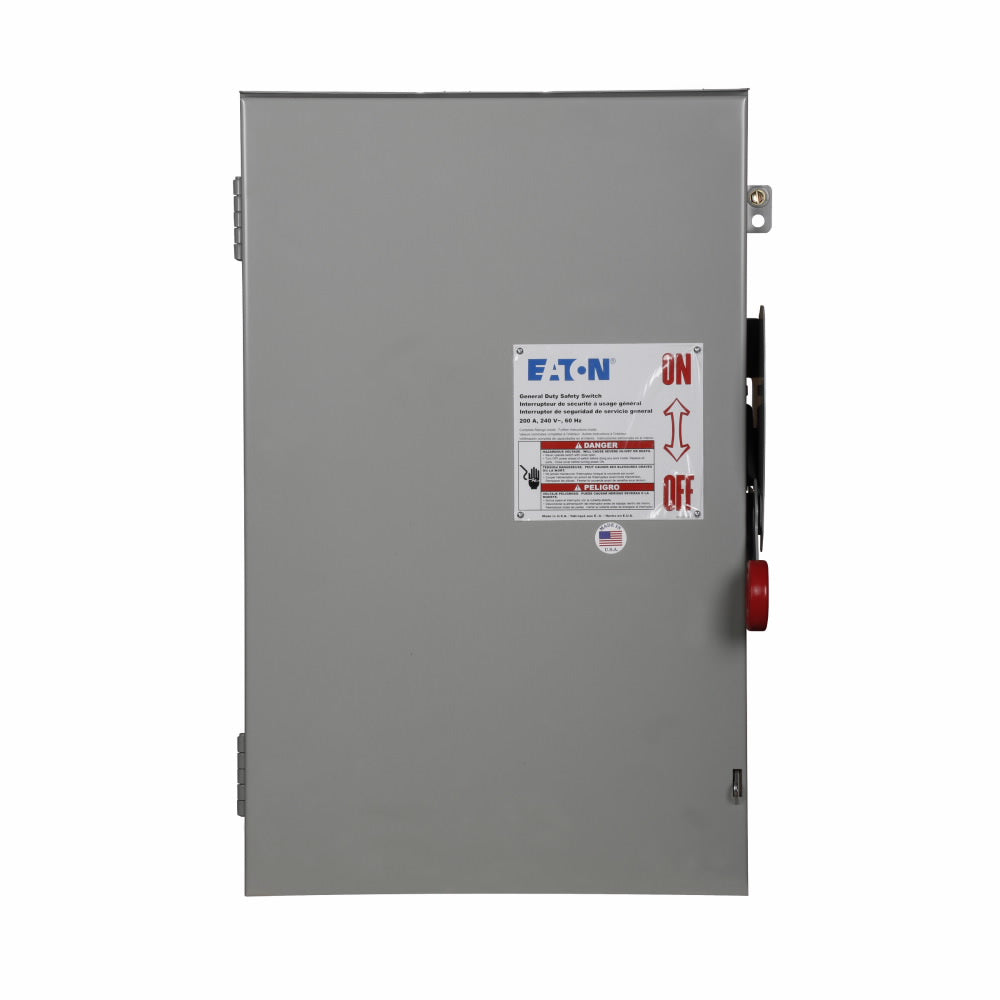

Cutler Hammer DG224NRK - Fusible Disconnect Switch 200A @ 240V AC (NEMA 3R, 100kA AIC)

Cutler Hammer DG224NRK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 200A rated switch operates at 240V AC with a 100kA interrupting capacity, providing robust short-circuit protection in single-phase systems. The unit features a compact 24" x 11.25" x 25.5" NEMA 3R enclosure constructed for durability and weather resistance, weighing 50 pounds for stable installation. UL Listed certification ensures compliance with industry safety standards, while compatibility with SGPA frames and Class R fuses supports integration into existing electrical systems. Typical applications include motor control centers, industrial machinery, and power distribution panels where safe maintenance isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 24" x 11.25" x 25.5" (WxDxH)
• Weight: 50 lb
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Phase: 1
• Poles: 2
• AIC Rating: 100kA@240V
• Protection: Circuit isolation and short-circuit protection
• NEMA Rating: 3R
• Fuse Class: R
• Compatible Frames: SGPA
• Country of Origin: United States

Product Identification

• UPC: 782113213507
• GTIN: 00782113213507
