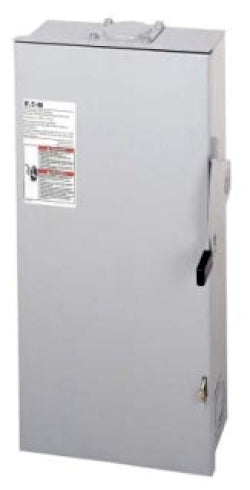

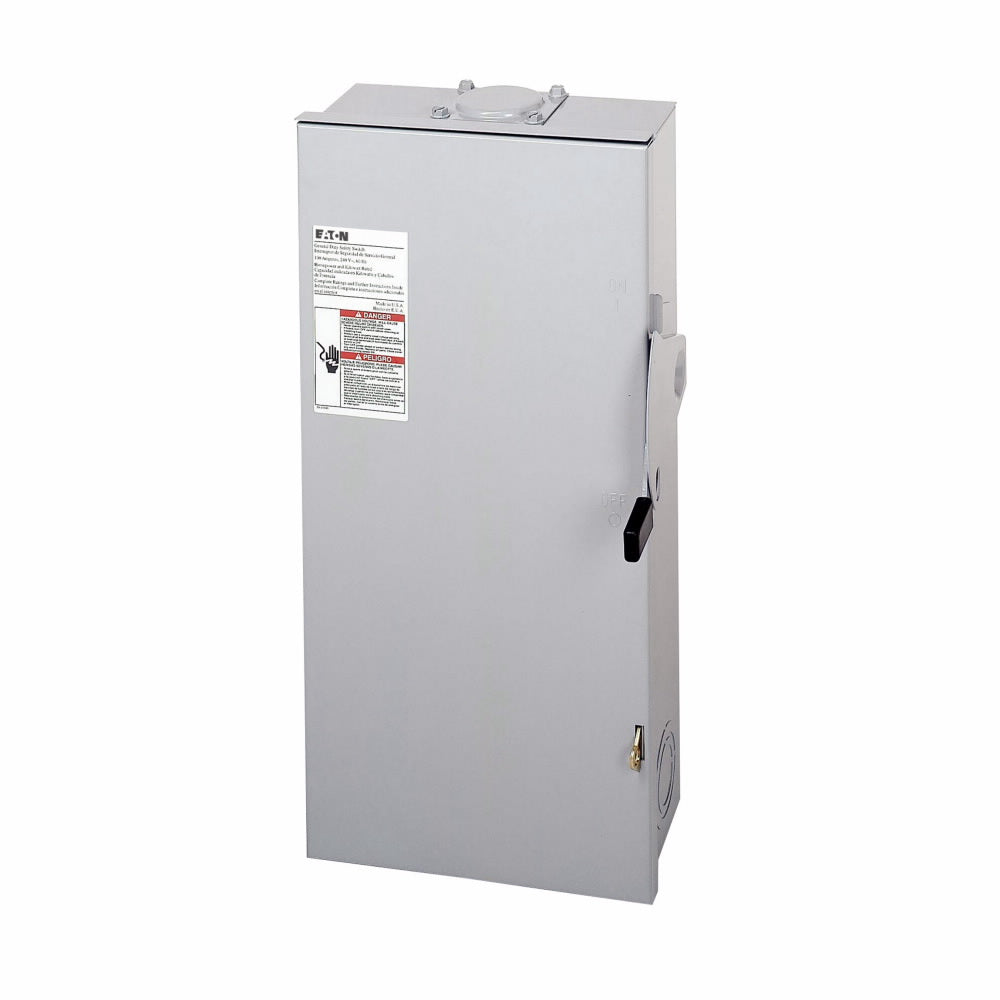

Cutler Hammer DG223NRB - Fusible Disconnect Switch 100A 240V (NEMA 3R Enclosure)
Regular price
$342.00
$342.00
Regular price
$684.00
$684.00
Sale price
$342.00
$342.00
Save $342
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer DG223NRB is a fusible safety disconnect switch designed for industrial electrical system protection and isolation. This 100A rated switch operates at 240V AC with a 100kA interrupting capacity, providing reliable circuit protection in demanding environments. The rugged NEMA 3R enclosure measures 23.08 x 7.38 x 19.25 inches (WxDxH) and weighs 18 lb, constructed with UL Listed certification and NEC 230.62(C) compliant barriers for safety. Compliant with industry standards, this single-phase disconnect is engineered for industrial power distribution applications including motor control centers and main service disconnects where reliable circuit isolation is critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DG Series
- Voltage Rating: 240V AC
- Current Rating: 100A
- Dimensions: 23.08 in x 7.38 in x 19.25 in (WxDxH)
- Standards: UL Listed, NEC 230.62(C) Compliant Barrier
- Applications: Industrial power distribution, motor control centers, main service disconnects
- Switch Type: Disconnect
- Configuration: Single
- Poles: 2
- AIC Rating: 100kA@240V
- Fuse Class: R
- NEMA Rating: NEMA 3R
- Phase: 1
- Weight: 18 lb
- Compatible Frames: SGPA
- Country of Origin: United States
Product Identification
- UPC: 782113144252
- GTIN: 00782113205373
