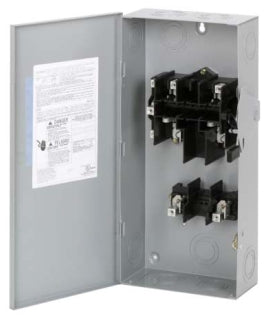

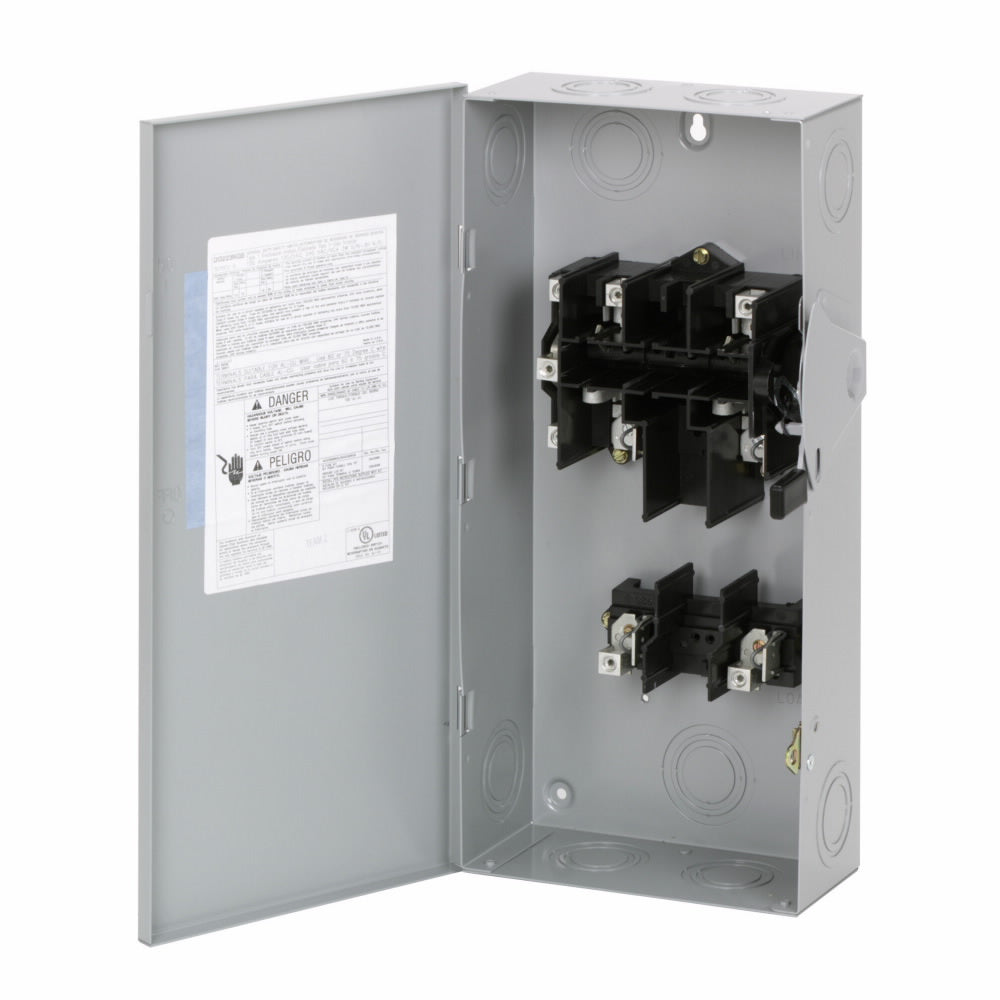

Cutler Hammer DG223NGB - Fusible Disconnect Switch 100A@240V (100kA AIC NEMA 1)

Cutler Hammer DG223NGB is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed, single-configuration switch features a 240V voltage rating and 100A current capacity with a 100kA@240V AIC rating for high-fault interruption. The NEMA 1-rated enclosure measures 23.08 x 7.38 x 18.81 inches (WxDxH) with a 14 lb steel construction, compliant with NEC 230.62(C) barrier requirements. Certified for Class R fuse protection, it serves in commercial/industrial applications requiring reliable single-phase (1Φ) circuit isolation with TB frame compatibility.

Key Features & Specifications

• Type: Fusible disconnect switch with NEC-compliant barrier
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 23.08" W x 7.38" D x 18.81" H
• Standards: UL Listed, NEC 230.62(C)
• Applications: Industrial power distribution, motor control
• Configuration: Single
• Poles: 2
• AIC Rating: 100kA@240V
• Fuse Class: R
• NEMA Rating: NEMA 1
• Phase: 1
• Weight: 14 lb
• Compatible Frames: TB

Product Identification

• UPC: 782113144245
• GTIN: 00782113000000
