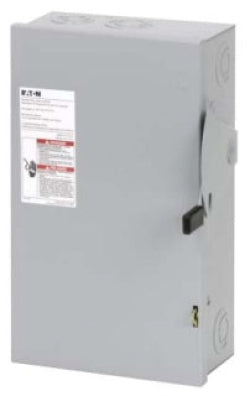

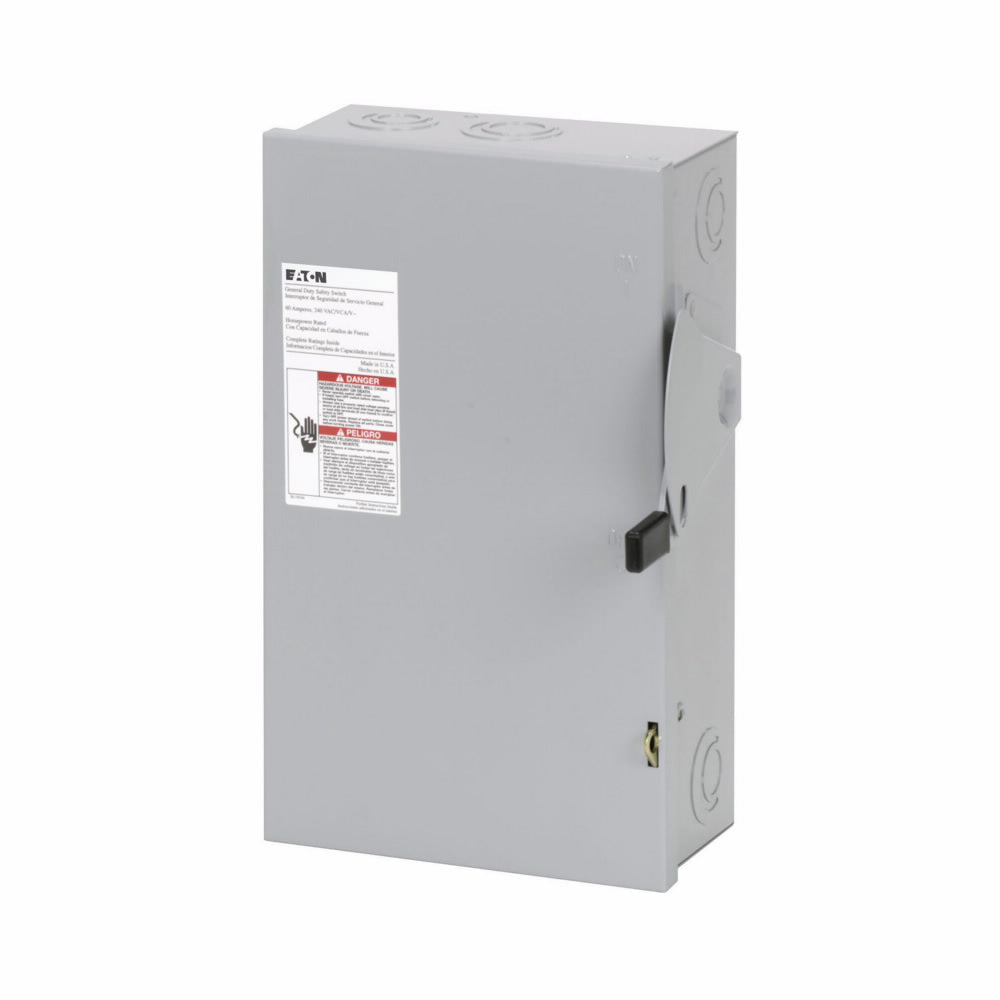

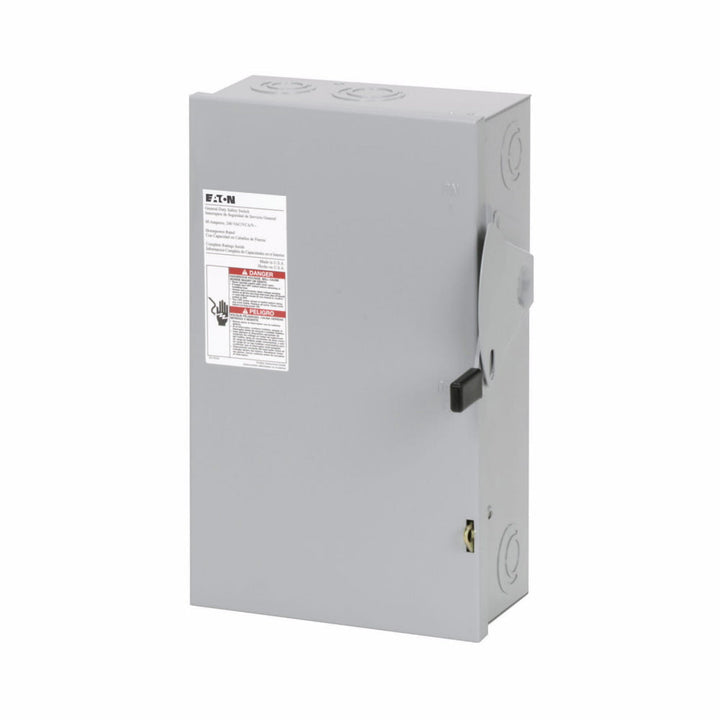

Cutler Hammer DG222NGB - Fusible Disconnect Switch 60A@240V (100kA AIC Rating)

Cutler Hammer DG222NGB is a fusible safety disconnect switch designed for circuit protection and isolation in industrial power distribution systems. This UL-listed, NEMA 1-rated switch features a 240V AC voltage rating with 60A current capacity and 100kA interrupting rating at 240V for robust short-circuit protection. The unit's 16" x 7.38" x 14.19" (WxDxH) steel enclosure houses a 2-pole single-throw configuration with Class R fuse compatibility, meeting NEC 230.62(C) barrier requirements. Compliant with industrial safety standards, this US-made DG Series disconnect is engineered for motor control centers, HVAC systems, and heavy equipment power isolation in commercial facilities.

Key Features & Specifications

• Type: Fusible safety disconnect switch with barrier protection
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 16" x 7.38" x 14.19" (WxDxH)
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control centers, HVAC systems
• Switch Style: Fusible
• Configuration: Single-throw
• Poles: 2
• AIC rating: 100kA@240V
• Fuse Class: R
• Nema Rating: NEMA 1
• Phase: 1
• Weight: 10 lb
• Compatible Frames: SKLA
• Country of Origin: United States

Product Identification

• UPC: 782113144214
• GTIN: 00782113000000
