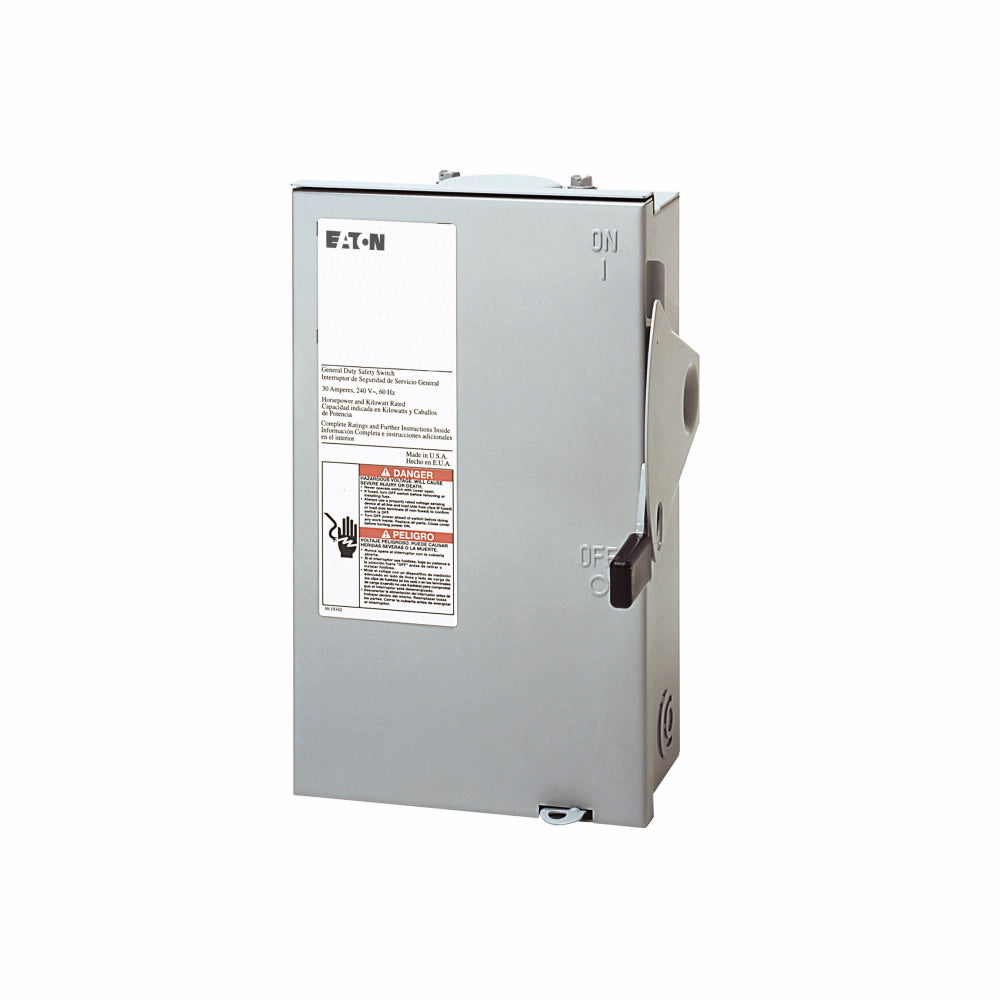

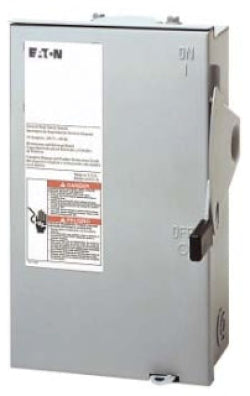

Cutler Hammer DG221URB - Non-Fusible Disconnect Switch 30A 240V (2-Pole NEMA 3R)

Cutler Hammer DG221URB is a non-fusible safety disconnect switch designed for reliable circuit isolation and load breaking in industrial applications. It features a 240V AC voltage rating and 30A current capacity for single-phase electrical systems, providing robust protection with a 100kA interrupting rating at 240V. The switch is constructed with a NEMA 3R rated enclosure measuring 15.52" x 6.88" x 10.81" (WxDxH) and weighs 8 lb, featuring a two-pole configuration with UL listing and NEC 230.62 (C) compliant barrier requirements. This disconnect meets industry standards for safety and reliability while being compatible with SGPA frames, making it suitable for industrial power distribution, motor control centers, and equipment maintenance applications where visible circuit isolation is required.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, DG series
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 15.52 in x 6.88 in x 10.81 in (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier, NEMA 3R
• Applications: Industrial power distribution, motor control centers, equipment maintenance
• Switch Type: Non-Fusible
• Configuration: Single
• Phase: 1
• Poles: 2
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 3R
• Weight: 8 lb
• Compatible Frames: SGPA
• Country of Origin: United States

Product Identification

• UPC: 782113120232
• GTIN: 00782113120232
