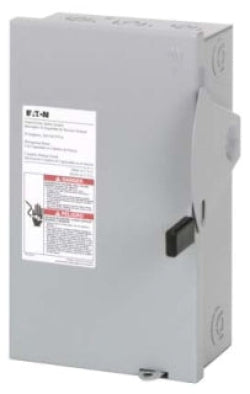

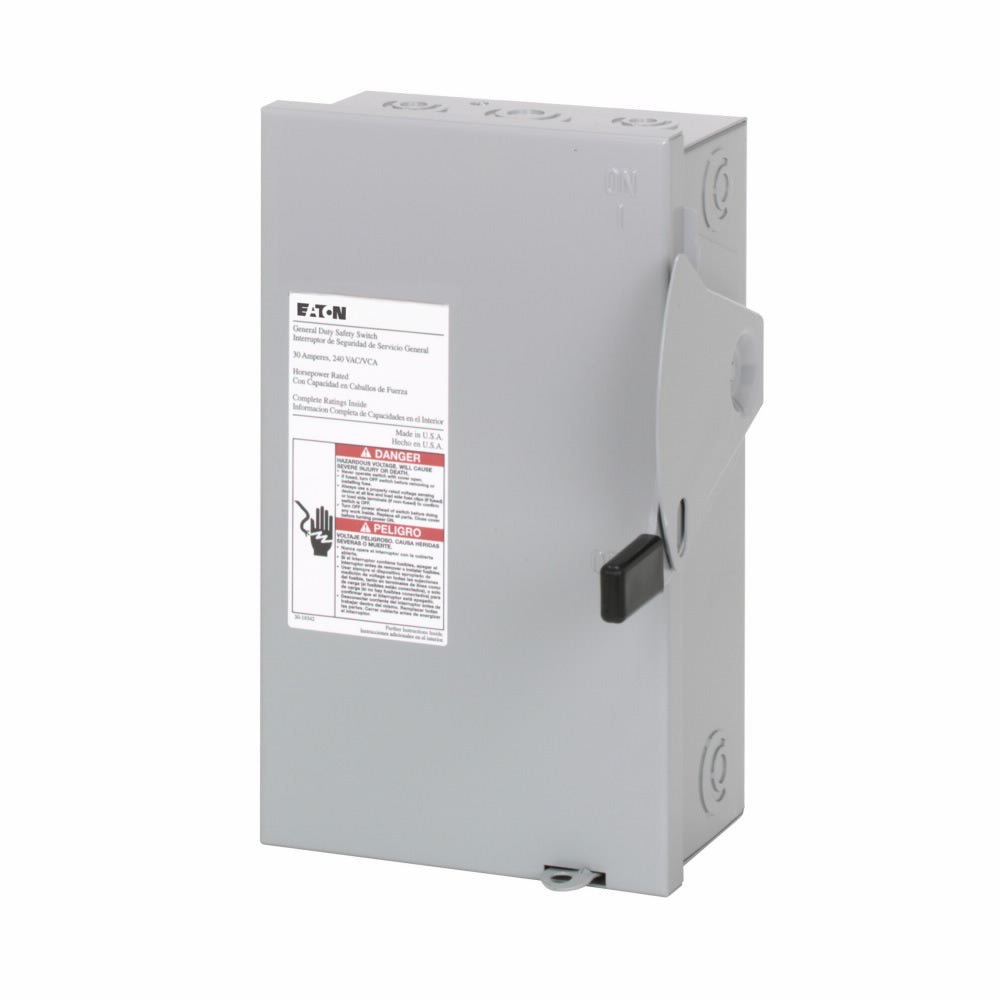

Cutler Hammer DG221NGB - Fusible Disconnect Switch 30A 240V (100kA AIC NEMA 1)

Cutler Hammer DG221NGB is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. This 30A rated switch operates at 240V AC with a 100kA interrupting capacity, providing reliable overcurrent protection. The compact NEMA 1 enclosure measures 9.13 x 6.89 x 10.23 inches (WxDxH) and features a robust 8 lb construction with UL listing and NEC 230.62(C) compliant barrier certification. Engineered to meet industrial safety standards, this single-phase, 2-pole disconnect is compatible with SGLA frames and utilizes Class R fuses for comprehensive electrical protection in motor control and power distribution systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 9.13" x 6.89" x 10.23" (WxDxH)
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier
• Applications: Industrial circuit protection and isolation
• Switch Type: Disconnect
• Configuration: Single
• Phase: 1
• Amperage: 30A
• AIC rating: 100kA@240V
• Poles: 2
• Protection: Overcurrent with Class R fuses
• Nema Rating: NEMA 1
• Fuse Class: R
• Compatible Frames: SGLA
• Weight: 8 lb
• Country of Origin: United States

Product Identification

• UPC: 782113120171
• GTIN: 00785901259497
