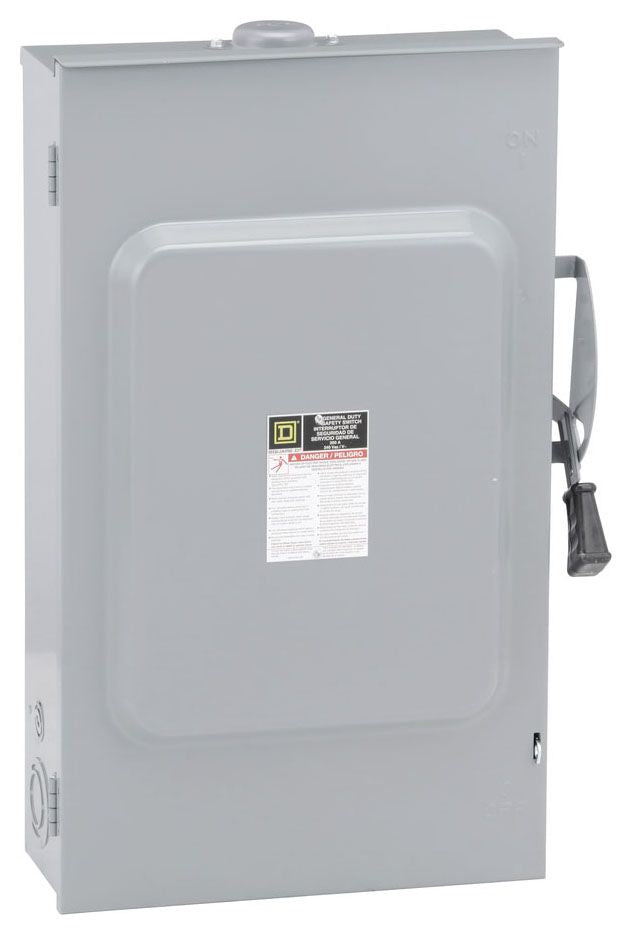

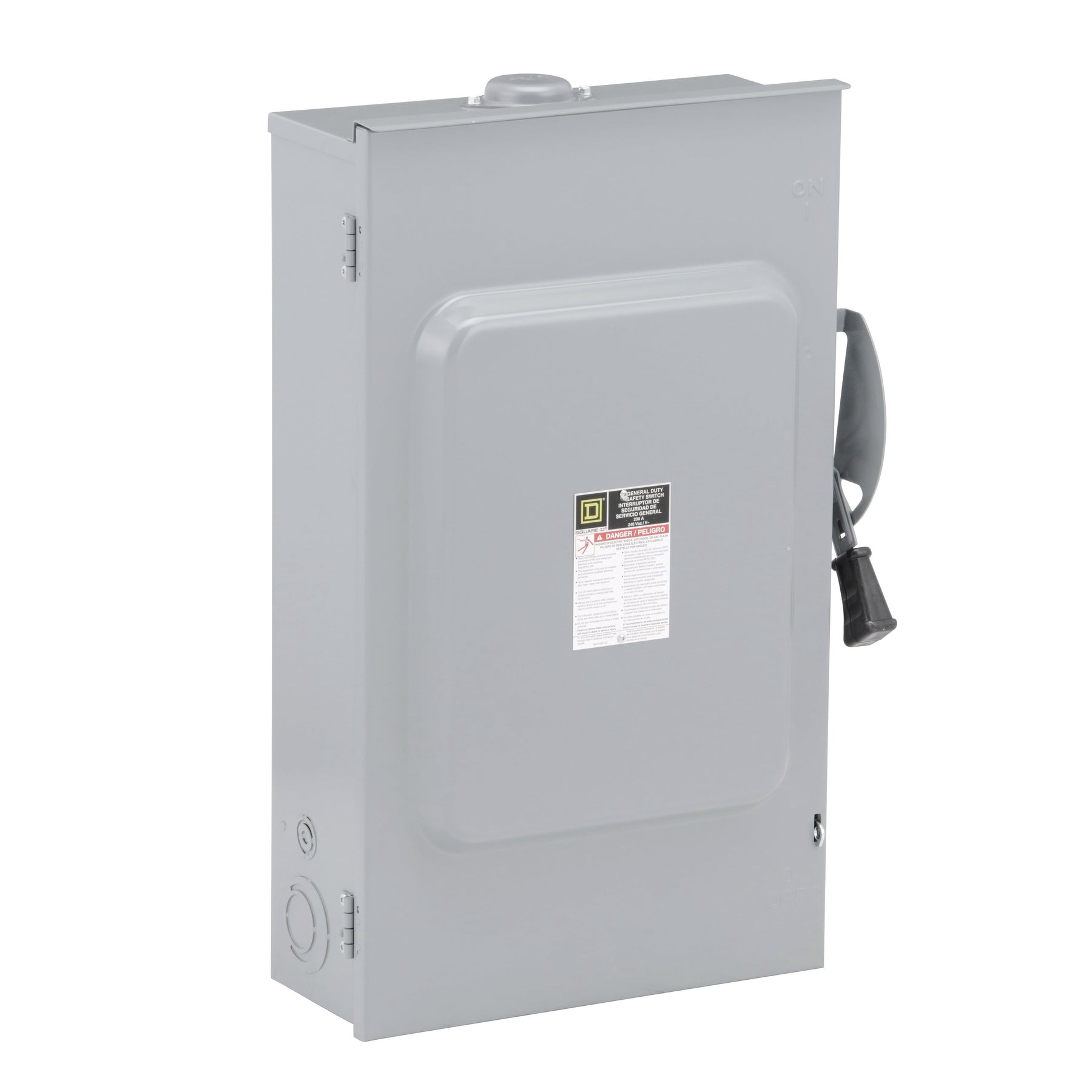

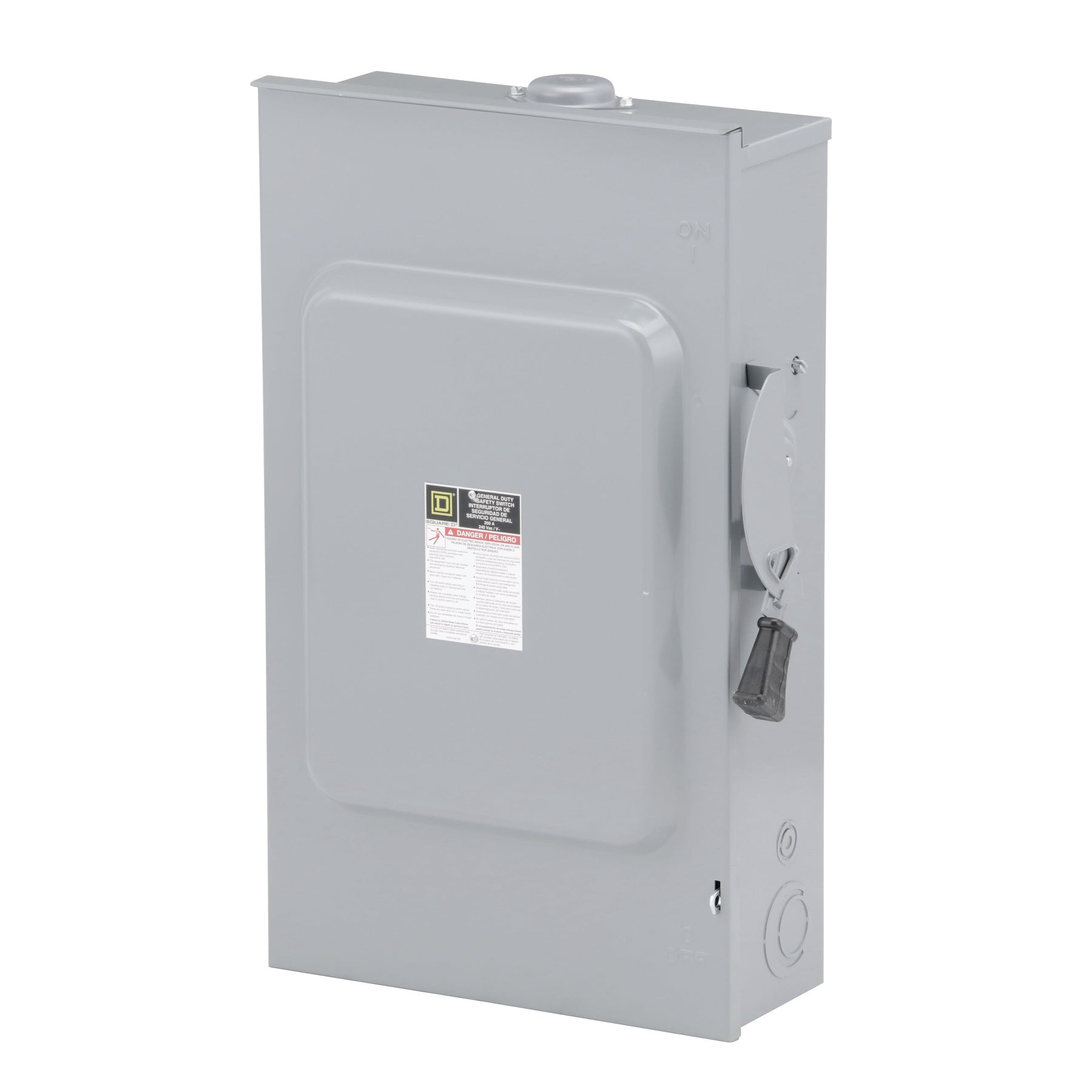

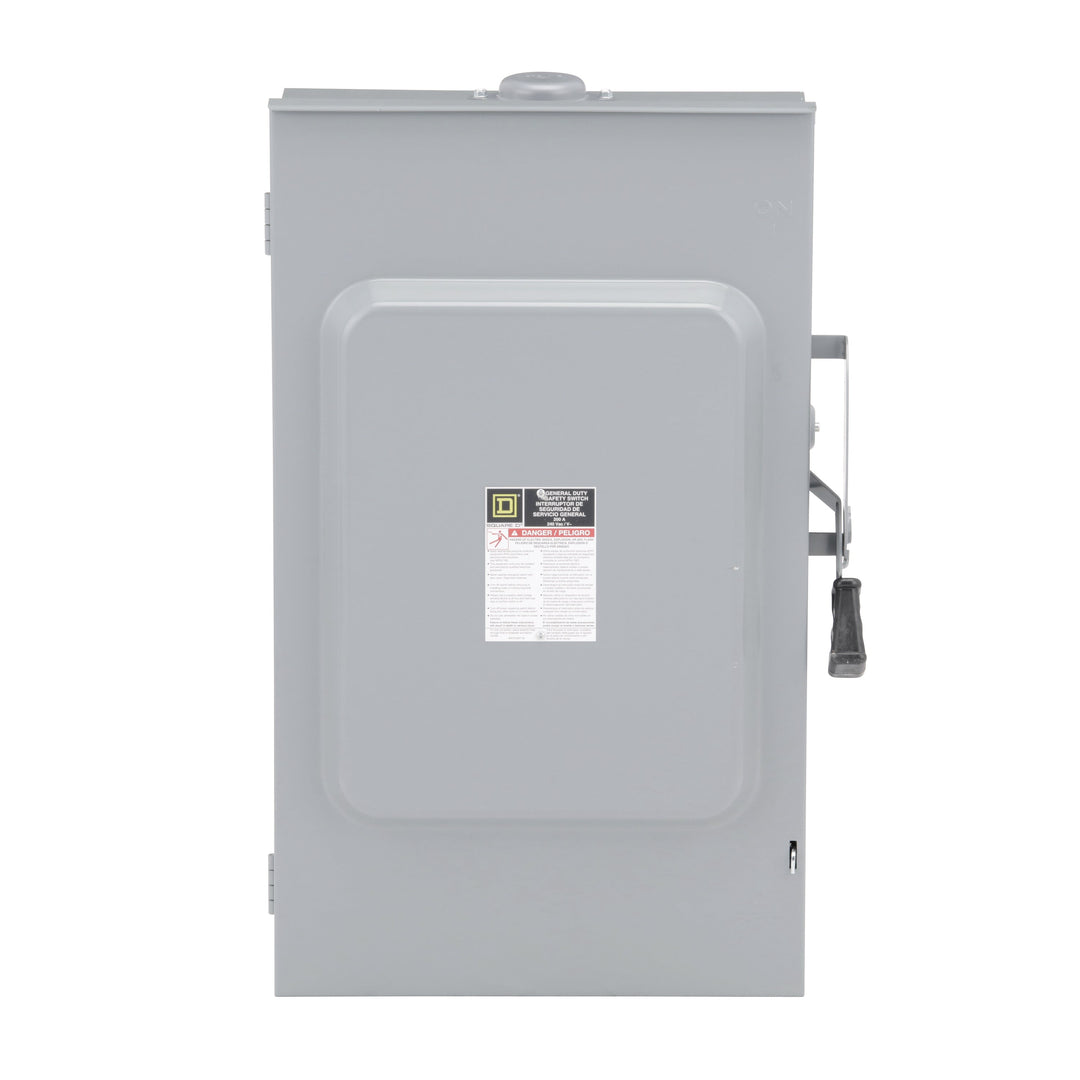

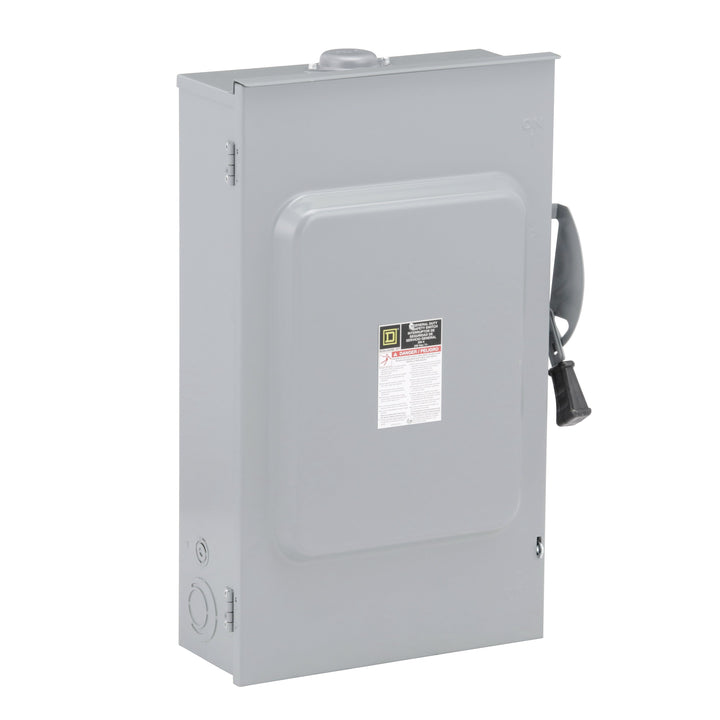

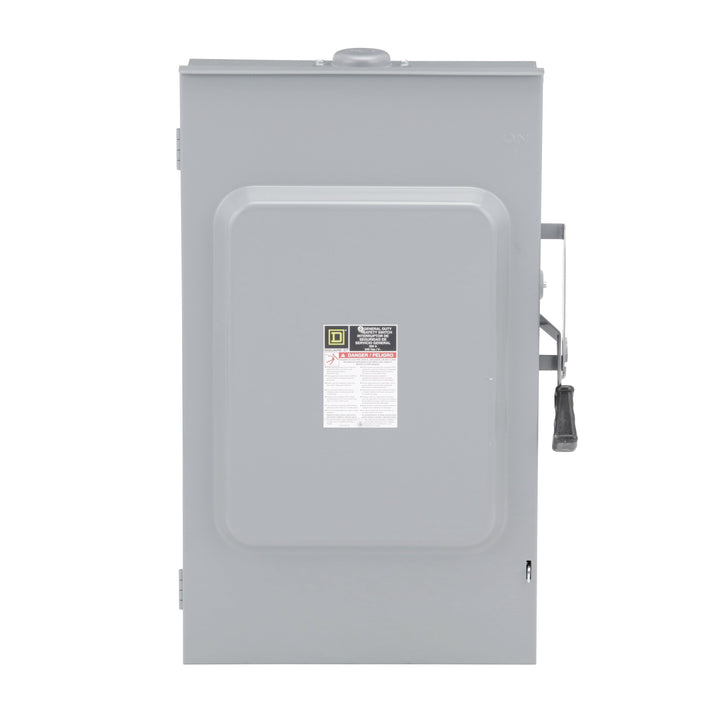

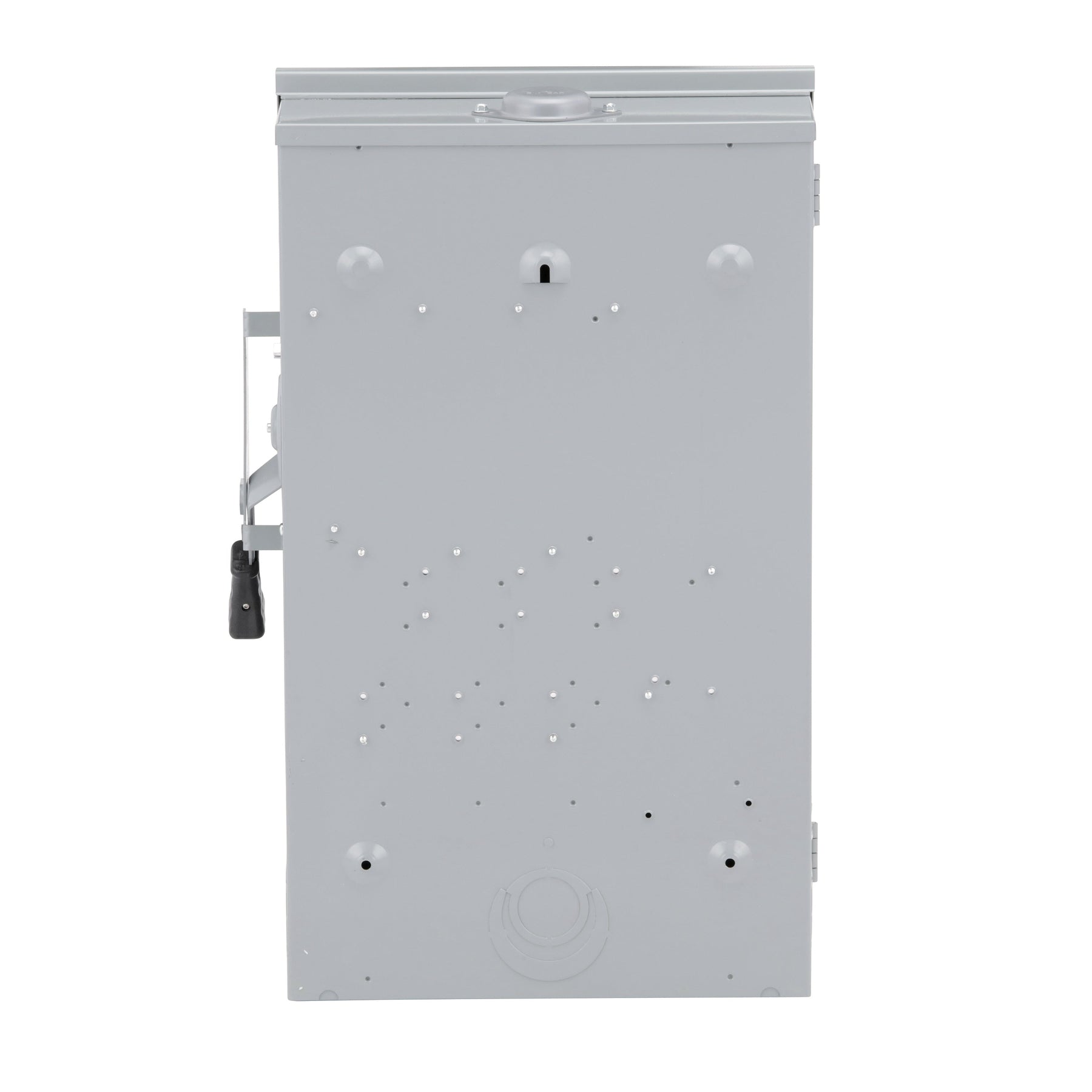

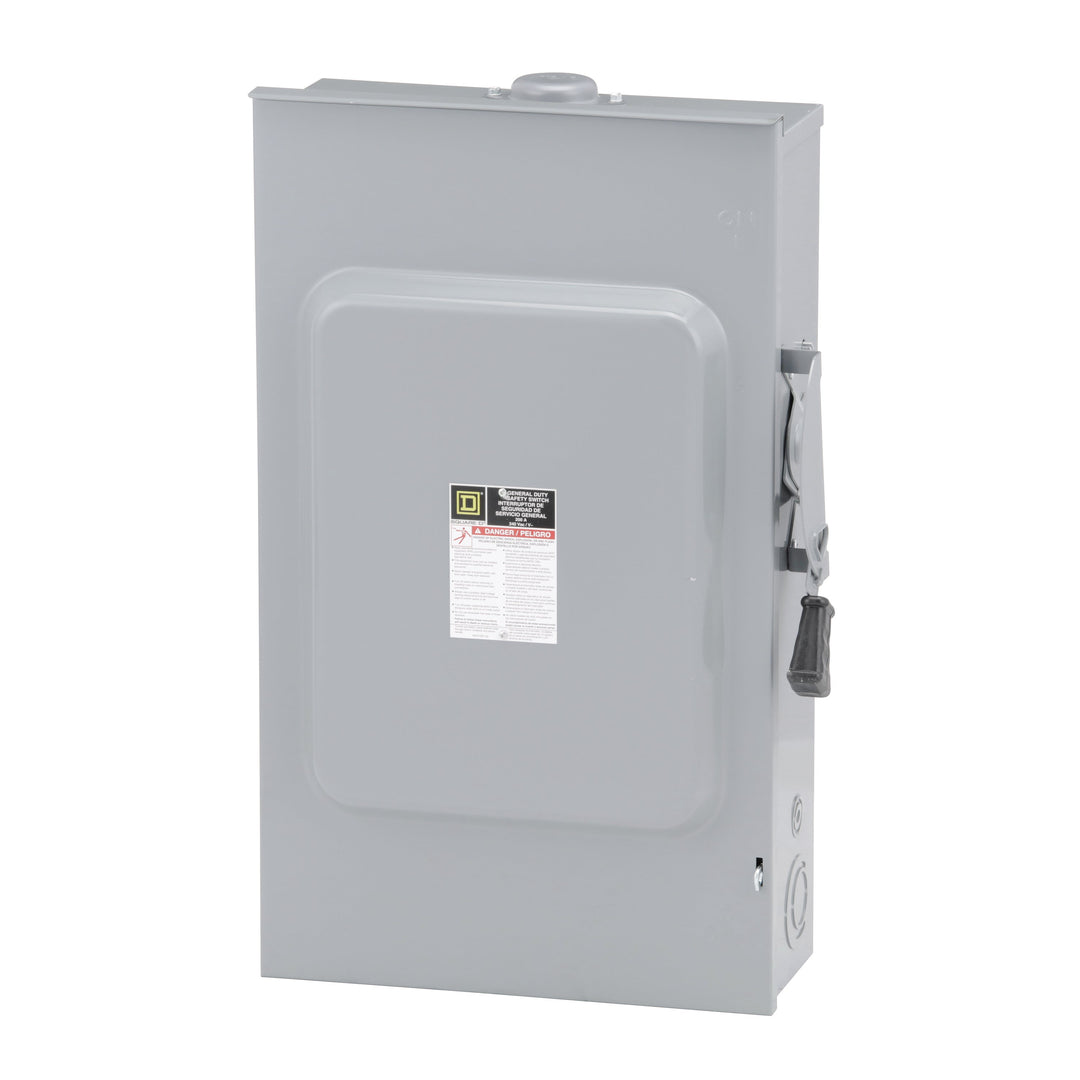

Square D D224NRB - Fusible Disconnect Switch 200A 240V (NEMA 3R 100kA AIC)

Square D D224NRB is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This single configuration, 2-pole switch operates at 240V AC with a 200A current rating and features a 100kA interrupting capacity at 240V for robust fault protection. The unit is constructed with a NEMA 3R rated enclosure measuring 19" x 8.5" x 29.25" (WxDxH) and weighs 19.37 lb, accommodating wire sizes from #2 to 300 AWG/kcmil for aluminum and #4 to 300 AWG/kcmil for copper conductors. UL listed and compliant with industry standards, this Series F disconnect is engineered for use with Class R fuses and compatible with RLF frames, making it suitable for industrial power distribution systems requiring safe maintenance and overload protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F, Type D
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 19 in x 8.5 in x 29.25 in (WxDxH)
• Standards: UL listed, NEMA 3R rated
• Applications: Industrial power distribution, circuit protection and isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• AIC rating: 100kA@240V
• Wire Size: #2 to 300 AWG/kcmil(Al) - #4 to 300 AWG/kcmil(Cu)
• Fuse Class: R
• Phase: 1
• Weight: 19.37 lb
• Compatible Frames: RLF
• Country of Origin: United States

Product Identification

• UPC: 785901460763
• GTIN: 00785901460763
