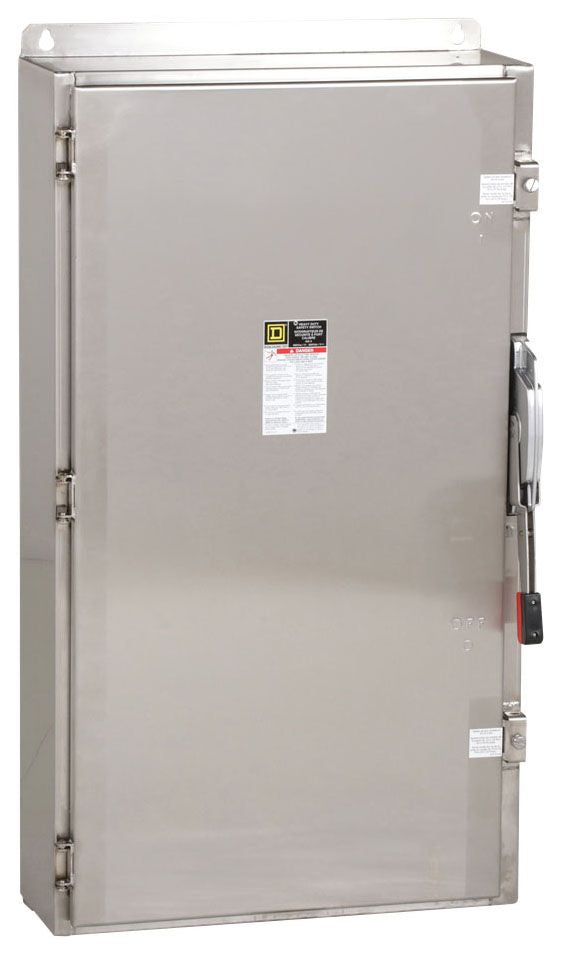

Square D CH365DS - Fusible Disconnect Switch 400A @ 600V (10kA AIC, NEMA 4/4X)

Square D CH365DS is a fusible safety disconnect switch designed for industrial power distribution protection. This 600V-rated disconnect features a 400A current capacity with 10kA interrupting rating at 600V, housed in a NEMA 4/4X-rated enclosure measuring 46.25" (1174.75mm) height x 4.44" (112.78mm) width x 3.09" (78.49mm) depth. The three-pole single-configuration switch complies with industrial safety standards and is compatible with RJF frames, providing reliable circuit isolation for heavy-duty applications like motor control centers and industrial machinery.

Key Features & Specifications

• Type: CH series fusible safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 46.25 x 4.44 x 3.09 in (1174.75 x 112.78 x 78.49 mm)
• Standards: NEMA 4/4X
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 10kA@600V
• Fuse Class: H, R
• Compatible Frames: RJF
• Weight: 69.85 lb

Product Identification

• UPC: 785901610304
• GTIN: 00785901610304
