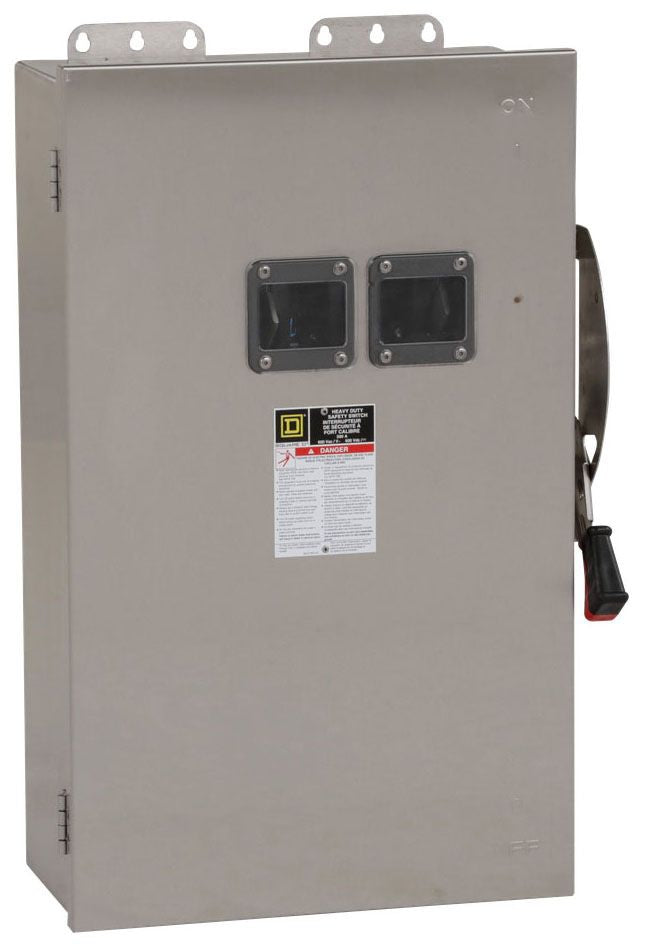

Square D CH364DS - Fusible Disconnect Switch 600V 200A (NEMA 4/4X Enclosure)
Regular price
$0.00
$0.00
Regular price
$1,640.00
$1,640.00
Sale price
$0.00
$0.00
Save $1,640
/
- In stock, ready to ship
- Backordered, shipping soon
Square D CH364DS is a fusible safety disconnect switch designed for industrial power distribution protection. This 600VAC-rated switch handles 200A continuous current with a 200kA interrupting capacity, featuring a rugged NEMA 4/4X-rated enclosure for harsh environments. The three-pole single-configuration unit measures 736.6mm (H) x 112.78mm (W) x 78.49mm (D) and weighs 25.86 lb, constructed with Class J/R fuse compatibility for robust circuit protection. Compliant with industrial safety standards, it's engineered for use in motor control centers and power distribution panels requiring RJF frame compatibility.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, Series F, CH type
- Voltage Rating: 600VAC
- Current Rating: 200A continuous
- Dimensions: 736.6mm H x 112.78mm W x 78.49mm D (29" x 4.44" x 3.09")
- Standards: NEMA 4/4X enclosure rating
- Applications: Industrial power distribution, motor control centers
- Configuration: Single
- Poles: 3
- AIC rating: 200kA@600V
- Fuse Class: J/R compatible
- Phase: 3
- Compatible Frames: RJF
- Weight: 25.86 lb
- Country of Origin: United States
Product Identification
- UPC: 785901995418
- GTIN: 00785901023753
