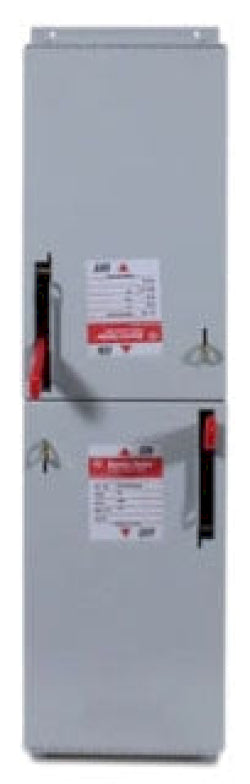

General Electric ADS36060HD - Fusible Disconnect Switch 600V/60A (200kA AIC @480V)

General Electric ADS36060HD is a fusible panel mount switch designed for industrial power distribution systems, featuring a 600V rating and 60A current capacity in a compact 27 lb NEMA 1 enclosure. Its dual/twin configuration with 3 poles provides reliable circuit protection with a 200kA interrupting capacity at 480V, compatible with LD frames for seamless integration. Constructed for H/R/J/K class fuses, this Spectra Series switch meets rigorous industrial standards for three-phase applications. Typical uses include motor control centers and heavy-duty electrical panels requiring high fault current protection.

Key Features & Specifications

• Type: Fusible disconnect switch, panel mount
• Voltage Rating: 600V AC
• Current Rating: 60A
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@480V
• Fuse Class: H, R, J, K
• NEMA Rating: 1
• Compatible Frames: LD
• Weight: 27 lb
• Standards: Industrial electrical safety
• Applications: Motor control centers, power distribution panels

Product Identification

• UPC: 783164001464
• GTIN: 00786685375861
