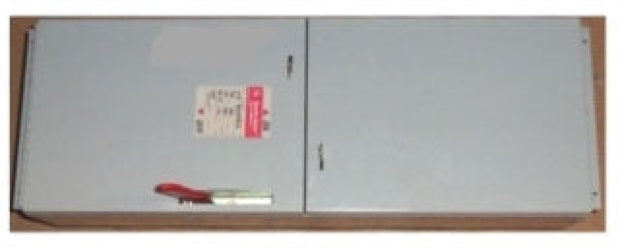

General Electric ADS32600HBFP - Fusible Safety Switch 600A@240V (200kA AIC)
Regular price
$4,259.33
$4,259.33
Regular price
$5,682.00
$5,682.00
Sale price
$4,259.33
$4,259.33
Save $1,422.67
/
- In stock, ready to ship
- Backordered, shipping soon
General Electric ADS32600HBFP is a fusible safety switch designed for industrial power distribution protection. This panel-mounted Spectra Series switch features a 600A current rating and 240V voltage rating with 200kA interrupting capacity at 480V for robust short-circuit protection. The heavy-duty NEMA 1 enclosure houses three poles in a single configuration, compatible with FD frames and rated for Class H/R/K fuses. UL-listed and designed for three-phase systems, it provides reliable circuit isolation in manufacturing plants, data centers, and heavy machinery applications.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety switch, panel mount
- Voltage Rating: 240V AC
- Current Rating: 600A
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC Rating: 200kA@480V
- Fuse Class: H, R, K
- NEMA Rating: 1
- Compatible Frames: FD
- Weight: 75 lb
- Standards: UL listed
- Applications: Industrial power distribution, machinery protection
Product Identification
- UPC: 783164253917
- GTIN: 00783164253917
