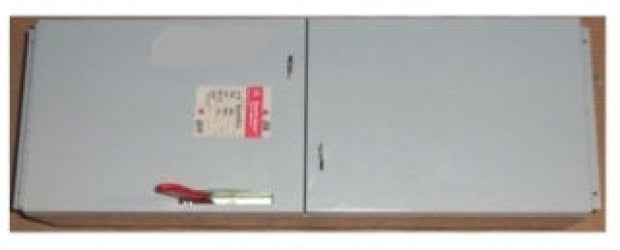

General Electric ADS26100HDFP - Fusible Disconnect Switch 600V/100A (200kA AIC @480V)

General Electric ADS26100HDFP is a panel-mounted fusible switch designed for industrial power distribution systems, providing reliable circuit protection and isolation. This dual-pole switch features a 600V AC voltage rating and 100A current capacity, housed in a rugged NEMA 1 enclosure weighing 35 lb for durable operation in harsh environments. The unit meets industry standards with a 200kA interrupting capacity at 480V and compatibility with FD frames, ensuring robust performance in high-fault applications. Its H/R/J/K-class fuse compatibility and Spectra Series design make it ideal for commercial and industrial power control panels requiring secure load switching and overcurrent protection.

Key Features & Specifications

• Type: Fusible disconnect switch, dual-pole configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Configuration: Dual/Twin
• Poles: 2
• AIC Rating: 200kA@480V
• Fuse Class: H, R, J, K
• NEMA Rating: 1
• Phase: 1
• Compatible Frames: FD
• Weight: 35 lb
• Standards: Industrial-grade compliance
• Applications: Power distribution, motor control, industrial panels

Product Identification

• UPC: 078316425350
• GTIN: 00783164253504
