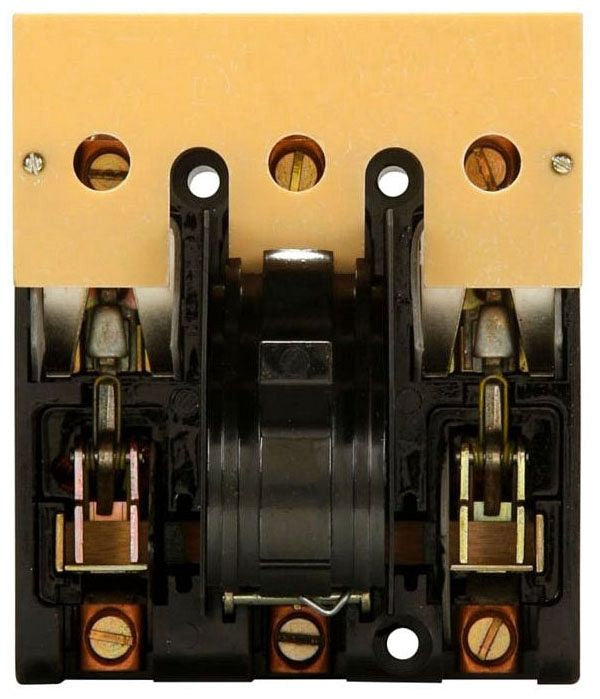

Cutler Hammer 657D780G15 - Safety Disconnect Switch 100A 600V (3-Pole NEMA 4X)

Cutler Hammer 657D780G15 is a heavy-duty safety disconnect switch designed for industrial power isolation and circuit protection applications. This 3-pole, single configuration switch provides reliable disconnection with a 600V voltage rating and 100A current handling capacity for three-phase systems. The rugged NEMA 4X rated enclosure measures 6.8 x 8.4 x 7.4 inches (WxDxH) and weighs 20 pounds, featuring copper wire compatibility from AWG 14 to AWG 1/0. Engineered to meet industrial safety standards, it offers 200kA interrupting capacity at 600V and accepts R, H, and K class fuses for comprehensive circuit protection. This Visi-Flex DE-ION family switch is commonly deployed in industrial control panels, motor control centers, and power distribution systems requiring robust disconnecting means.

Key Features & Specifications

• Type: Safety disconnect switch, Visi-Flex DE-ION family, 657D type
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 6.8 in x 8.4 in x 7.4 in (WxDxH)
• Weight: 20 lb
• Standards: NEMA 4X rated
• Applications: Industrial power isolation, motor control centers, power distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Phase: 3
• Poles: 3
• AIC Rating: 200kA@600V
• Wire Size: AWG 14 to AWG 1/0, Copper
• Fuse Class: R, H, K
• Compatible Frames: SGDA
• Enclosure: NEMA 4X

Product Identification

• UPC: 78667970145
• GTIN: 00786679701454
