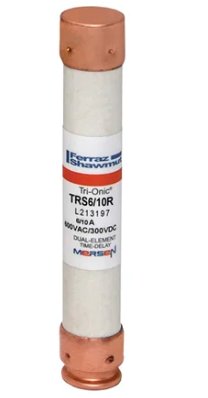

Ferraz Shawmut TRS6/10R - RK5 Fuse 6A 600V (200kA AIC)

Ferraz Shawmut TRS6/10R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class TRS fuse features a 600V AC rating with a 6A current capacity and a high interrupting rating of 200kA at 600V for reliable short-circuit protection. The compact single-barrel design measures 0.56" in diameter and weighs 0.2 lb, constructed with precision-engineered materials for consistent performance. It meets stringent industry standards for time-delay characteristics and is UL-recognized for safety compliance. Typical applications include motor branch circuits, transformers, and power distribution equipment requiring selective coordination.

Key Features & Specifications

• Type: Tri-Onic TRS time-delay current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 0.56" diameter
• Standards: UL 248-5, RK5 class
• Applications: Motor protection, transformers, power distribution
• Class Rating: RK5
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 0.2 lb

Product Identification

• UPC: 782001748562
• GTIN: 00782001748562
