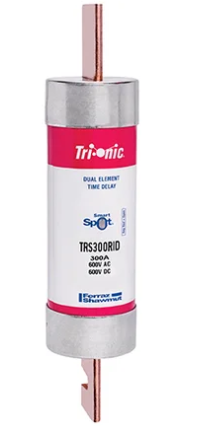

Cutler Hammer TRS300RID - Class RK5 Fuse 300A 600V (200kA AIC)

Cutler Hammer TRS300RID is a Class RK5 low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. This 300A rated fuse provides reliable overcurrent protection with a 600V AC voltage rating and exceptional 200kA interrupting capacity at 600V AC. The fuse features a single-barrel construction with a 2.06-inch diameter and robust 3 lb weight, utilizing time-delay characteristics to prevent nuisance tripping from motor starting currents. It complies with industry standards for Class RK5 fuses, ensuring proper coordination with upstream protective devices. Typical applications include motor branch circuits, feeder protection, and industrial control panels where high-interrupting capacity and selective coordination are required.

Key Features & Specifications

• Type: Class RK5 time-delay current-limiting fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 300A
• Dimensions: 2.06-inch diameter
• Standards: Class RK5 compliance
• Applications: Motor circuits, feeder protection, industrial control panels
• AIC rating: 200kA@600V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 3 lb

Product Identification

• UPC: 782001415259
