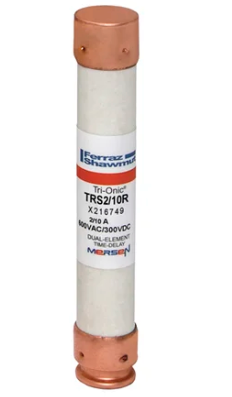

Cutler Hammer TRS2/10R - Class RK5 Fuse 2A 600V (200kA AIC)

The Cutler Hammer TRS2/10R is a Class RK5 time-delay fuse from the Tri-Onic family, engineered to provide reliable branch circuit and feeder protection in industrial electrical systems. It features a 600V AC voltage rating and a 2A current rating, offering a high 200,000 ampere interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel unit with a compact 0.56-inch diameter and a lightweight design of 0.2 lb. It complies with industry standards for current-limiting fuses, ensuring enhanced safety by reducing let-through current and energy during fault conditions. This fuse is typically applied in motor circuits and other applications requiring superior withstand capabilities for inrush currents.

Key Features & Specifications

• Type: Tri-Onic TRS, Class RK5 time-delay, current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 0.56" Diameter
• Standards: Class RK5
• Applications: Branch circuit and feeder protection, motor circuits
• AIC rating: 200kA @ 600V AC
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001748524
• GTIN: 00782001748524
