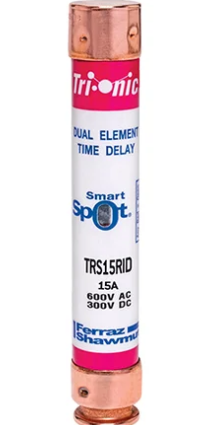

Cutler Hammer TRS15RID - RK5 Class Fuse 15A 600V (200kA AIC Rating)

Cutler Hammer TRS15RID is a low voltage current-limiting fuse designed for reliable circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 15A current rating with a high interrupting capacity of 200kA at 600V AC. The fuse construction includes a single-barrel design with 0.56-inch diameter and RK5 class rating, providing time-delay characteristics and excellent short-circuit protection. This fuse meets industry standards for current-limiting performance and is typically applied in motor branch circuits, transformer protection, and industrial control panels where coordinated protection is required.

Key Features & Specifications

• Type: Low voltage current-limiting fuse, time-delay RK5 class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 0.56" diameter
• Standards: UL/CSA listed, current-limiting fuse standards
• Applications: Motor branch circuits, transformer protection, industrial control panels
• AIC rating: 200kA@600V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001415044
