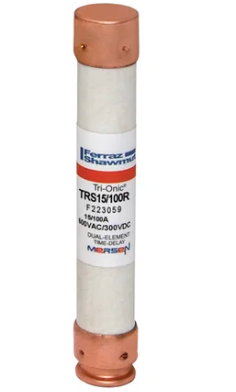

Cutler Hammer TRS15/100R - RK5 Class Fuse 15A 600V (200kA AIC)

Cutler Hammer TRS15/100R is a low voltage current-limiting fuse from the Tri-Onic family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 600V AC voltage rating and a 15A current rating, ensuring robust performance under demanding conditions. The fuse is constructed as a single-barrel RK5 class device with a compact 0.56-inch diameter and a lightweight design of 0.2 lb. It complies with industry standards for current-limiting fuses and offers a high 200kA interrupting rating at 600V AC. Typical applications include protection of motor circuits, transformers, and feeder circuits in industrial control panels and power distribution equipment.

Key Features & Specifications

• Type: TRS, Tri-Onic, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 0.56" Diameter
• Standards: RK5 Class
• Applications: Motor Circuits, Transformers, Feeder Circuits, Industrial Control Panels
• AIC rating: 200kA@600V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001748517
• GTIN: 00782001748517
